- Customizable: Frame color & screen size.
-
Best price: direct from the source factory.
-
Industrial-grade sheet metal frame: with a phosphating and pickling surface treatment, a cold-rolled steel rear panel for efficient active cooling.
-

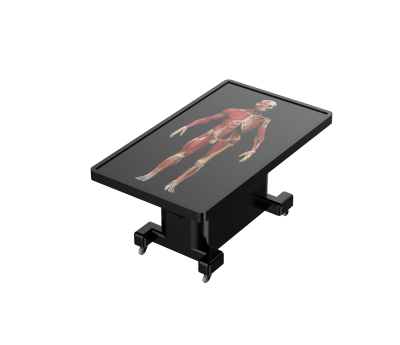

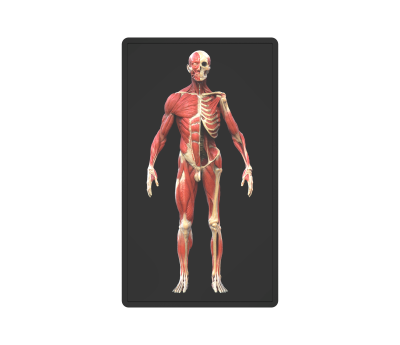

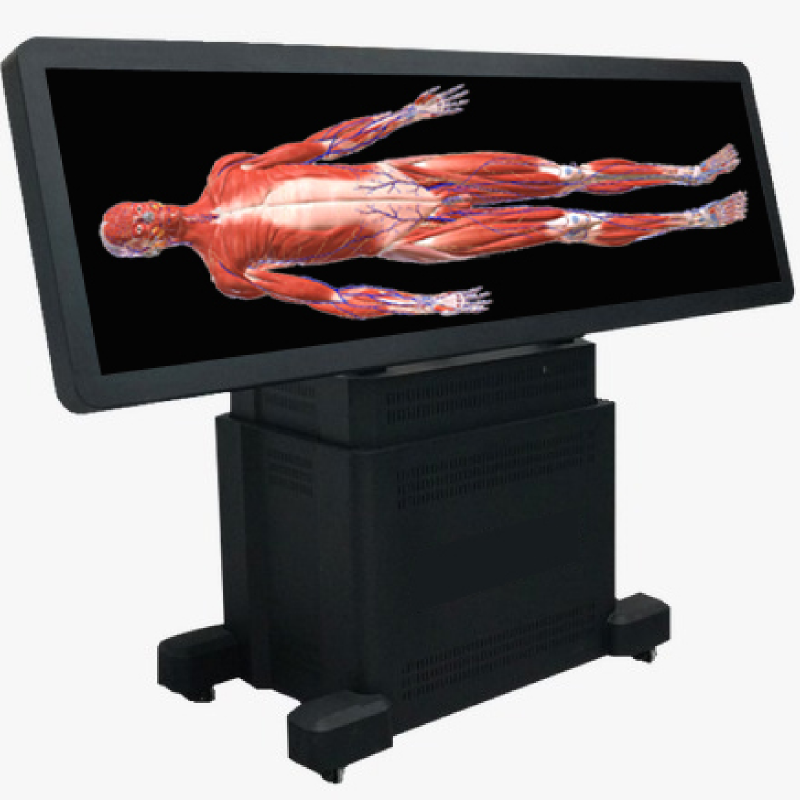

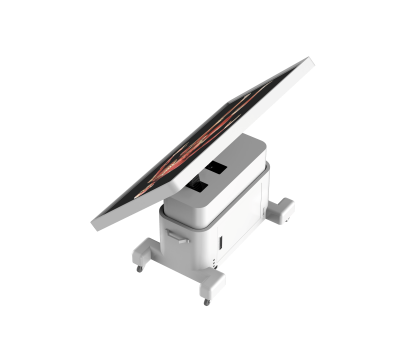

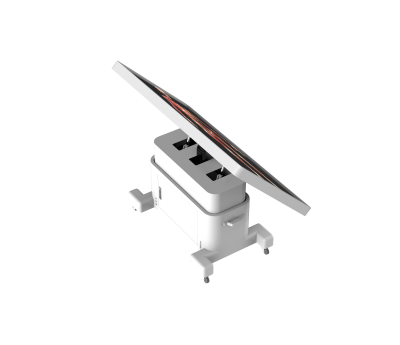

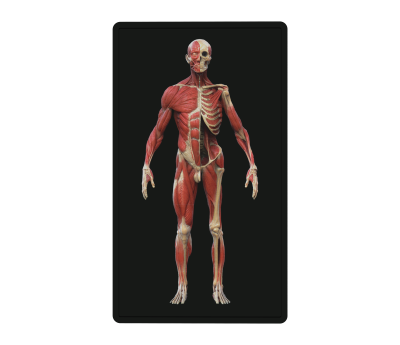

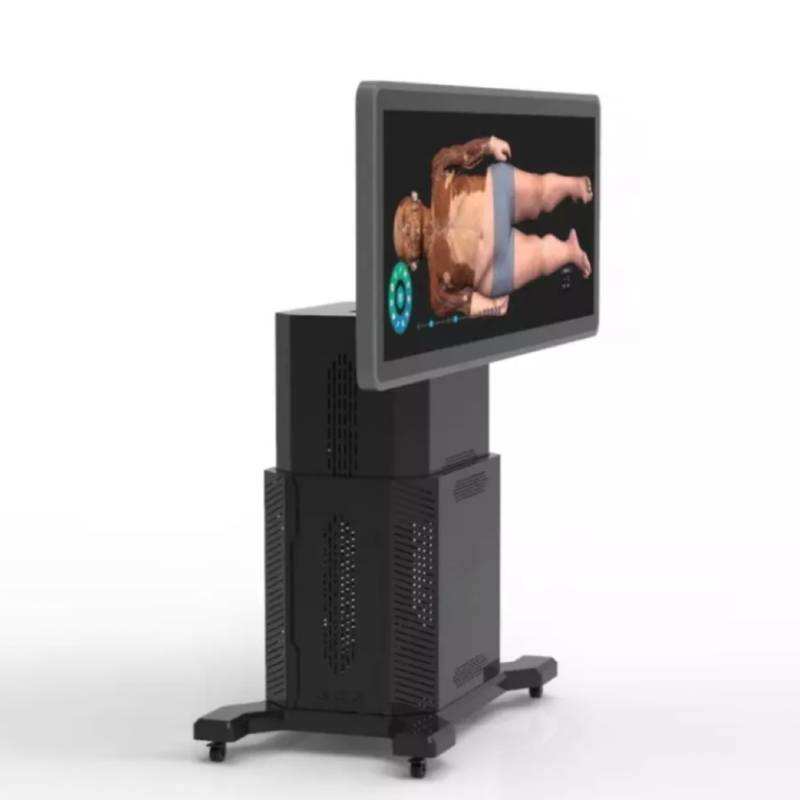

3D virtual cadaver dissection with unlimited exploration angles. The display screen can be raised and lowered vertically and can be reversed 90 degrees.
-
Slim and mobile-ready design with optional rolling stand or fixed base.
- Digital analog power amplifier delivers 5W output power (8Ω) with THD+N ≤10%. It automatically selects the corresponding audio output channel based on the input video signal and digitally adjusts the volume level.
- Flexible adjustment of the display: Supports various common zoom modes. Supports automatic signal recognition and switching, with automatic standby wake-up when no signal is detected.
- The most advanced LED display screen: cooperate with Samsung, LG, and AUO. Powered by military-grade wide-voltage power supply, it ensures stable performance for the display screen.
- 4K-resolution display for stunning anatomical detail. HDR Support, the proprietary 4K image processing ensuring consistent high-quality output regardless of video source resolution (4K or below).
Product Introduction
Core Features:

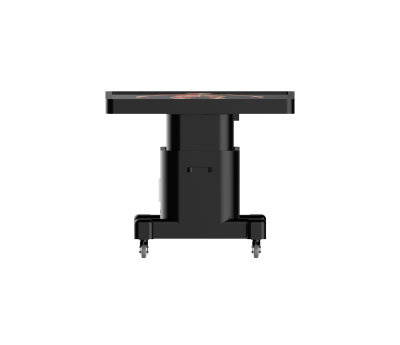

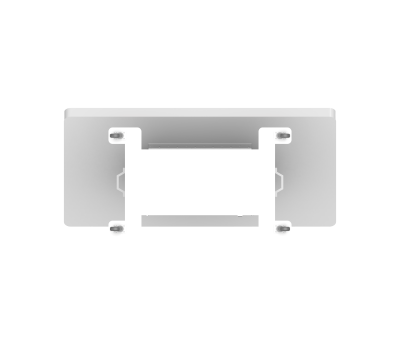

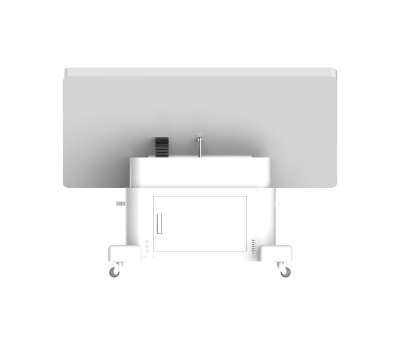

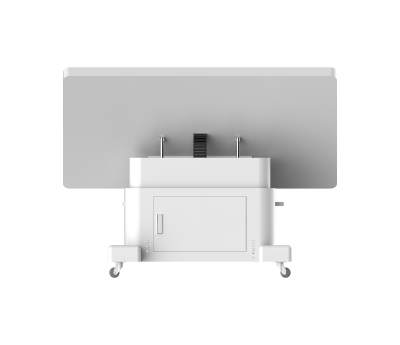

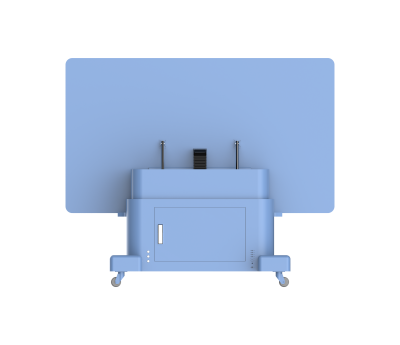

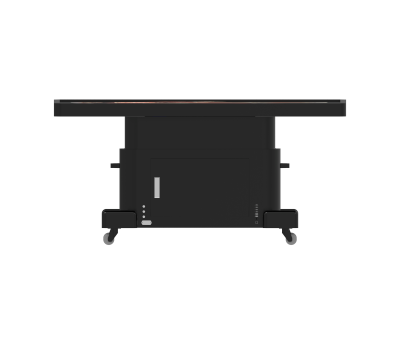

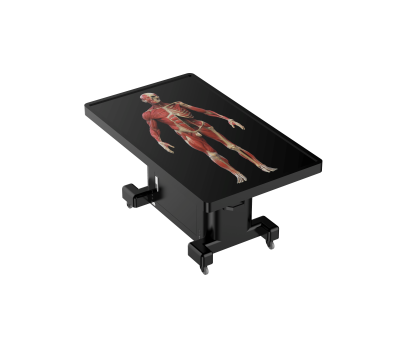

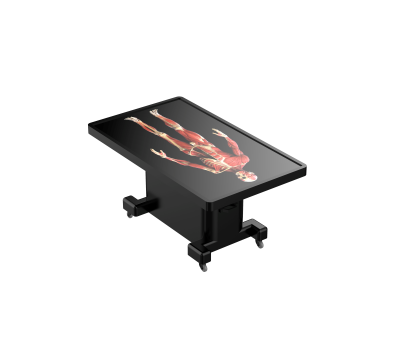

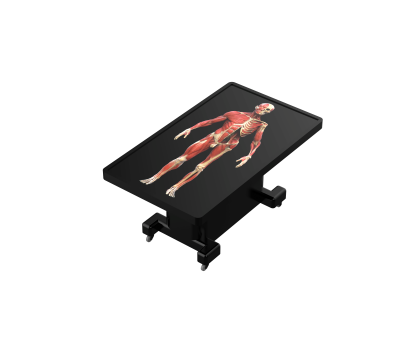

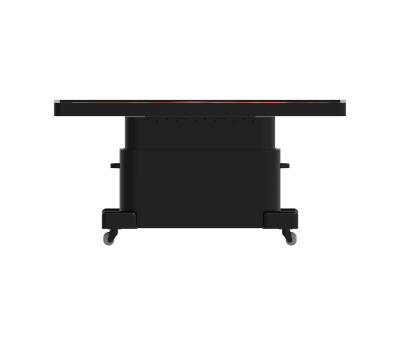

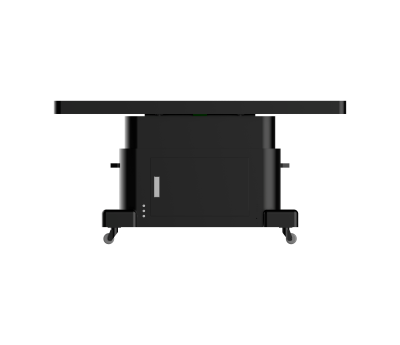

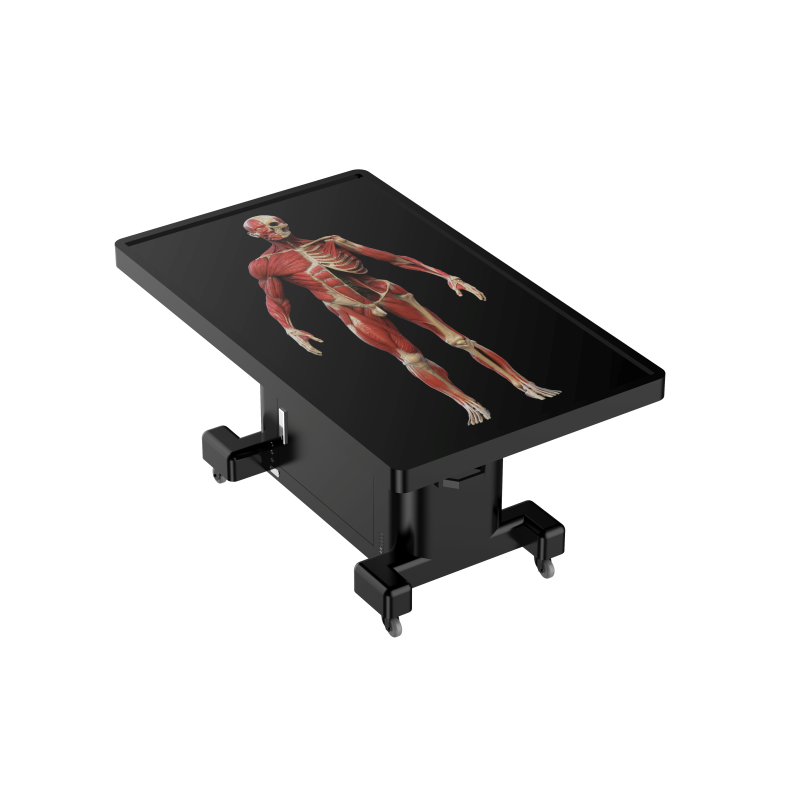

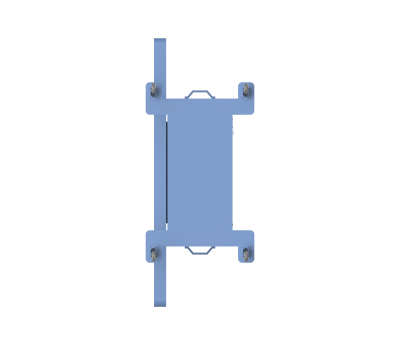

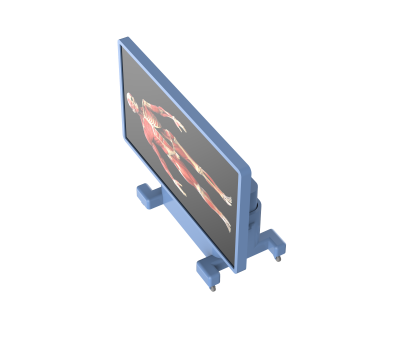

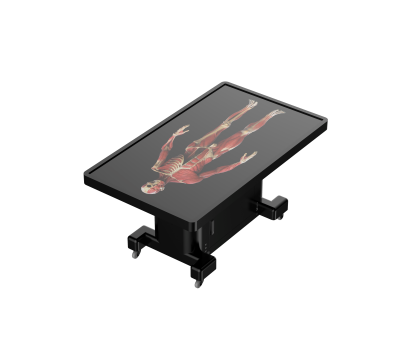

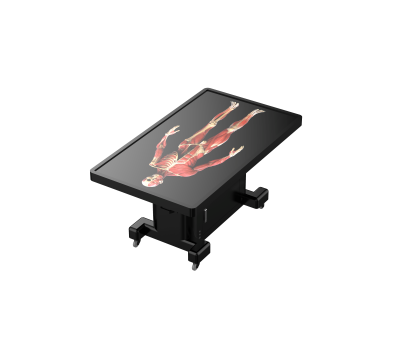

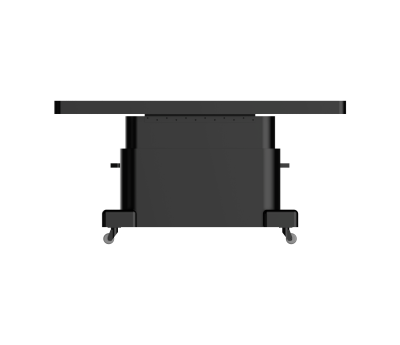

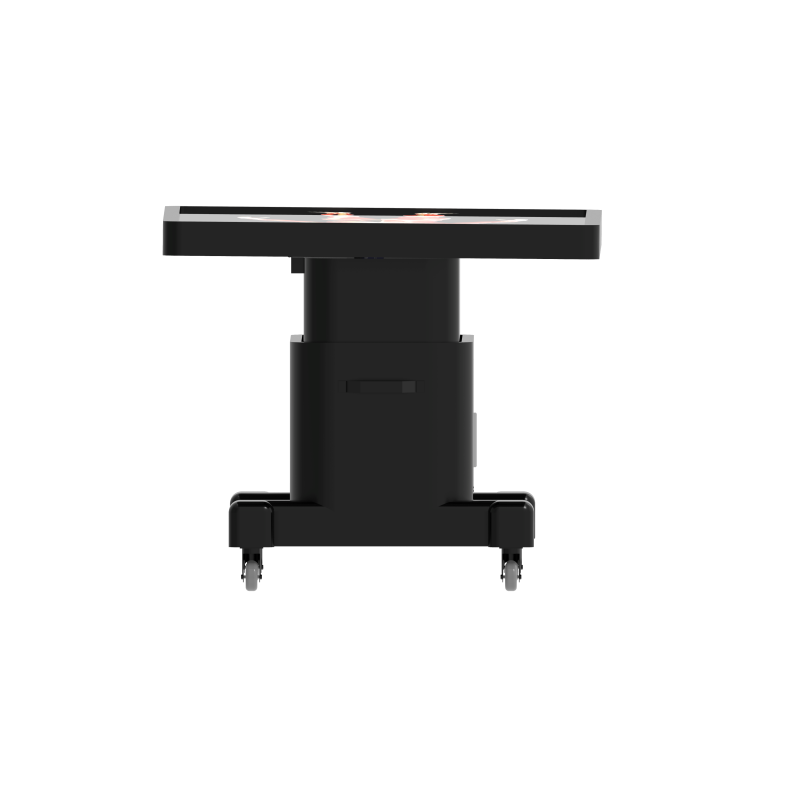

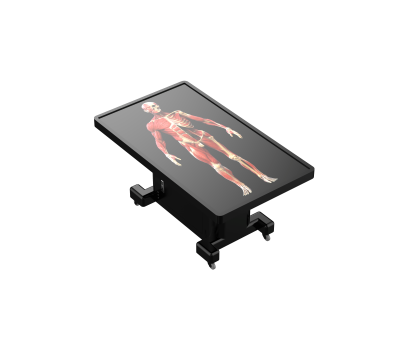

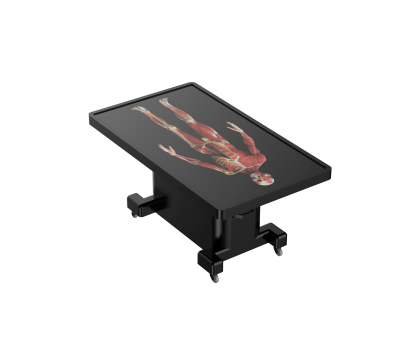

Horizontal Placement
Single pole
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Double pole
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

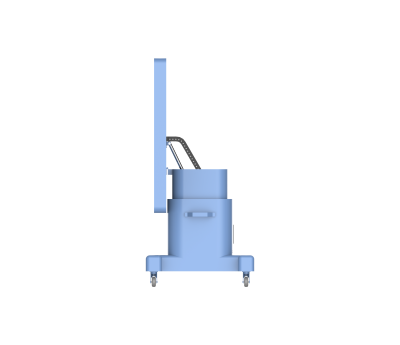

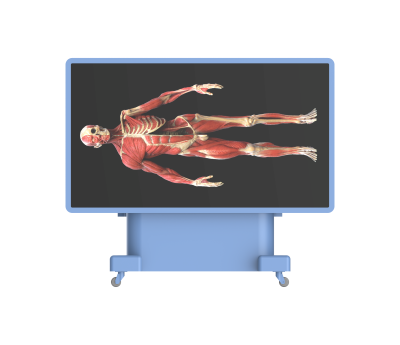

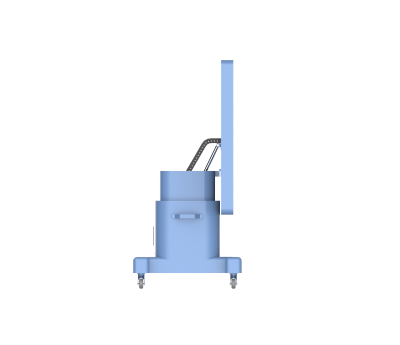

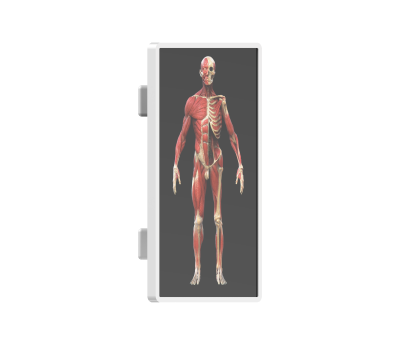

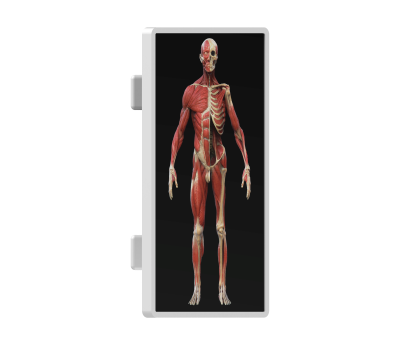

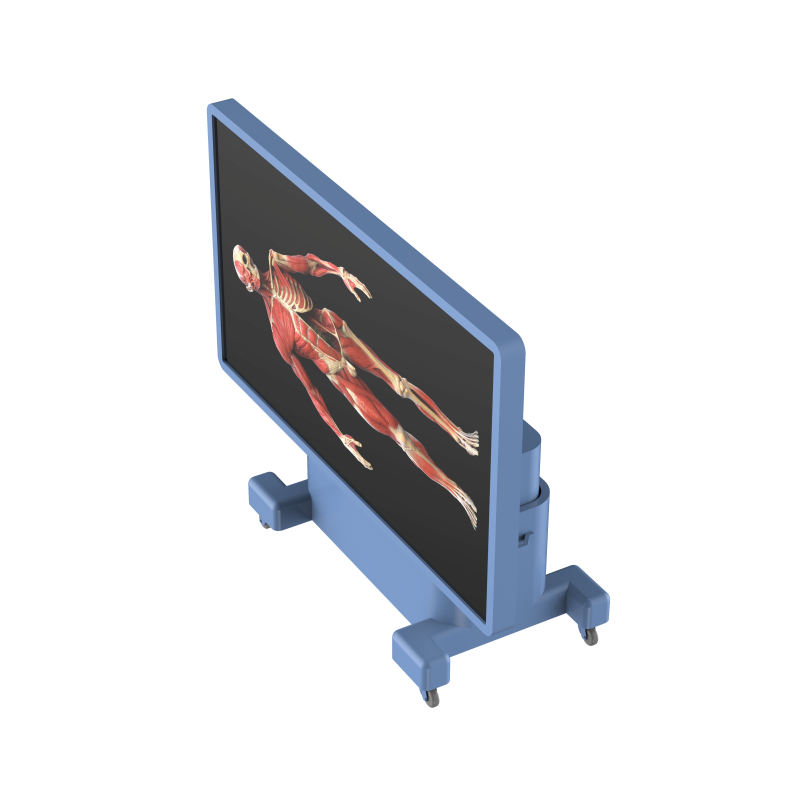

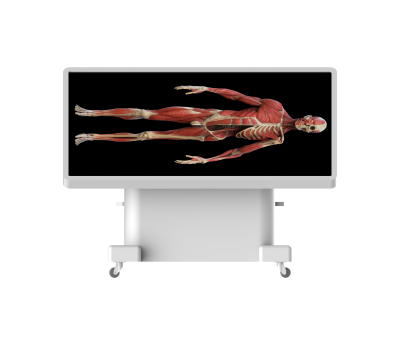

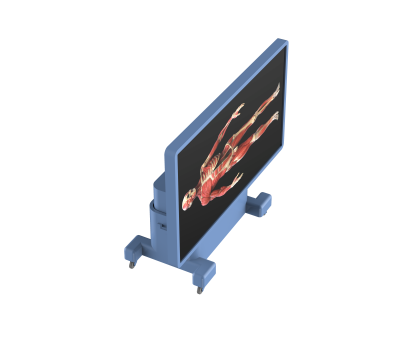

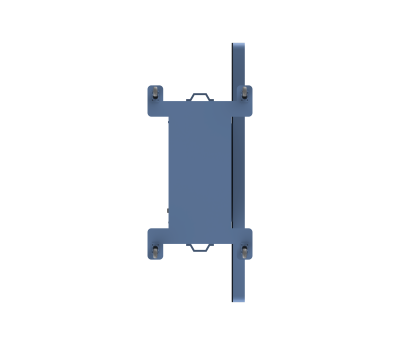

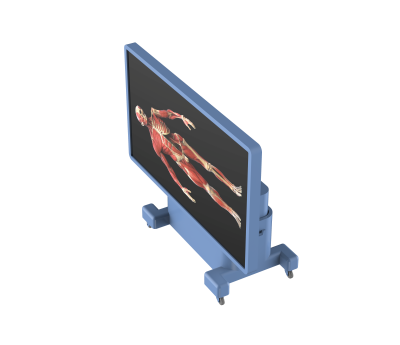

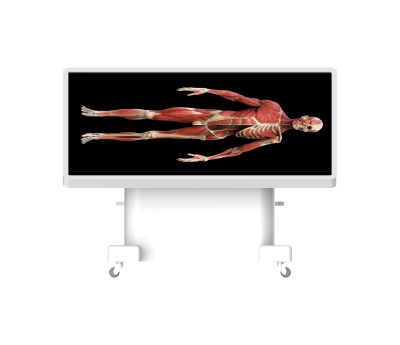

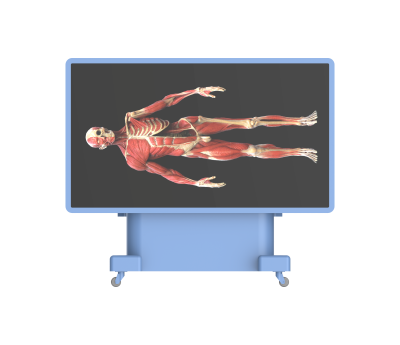

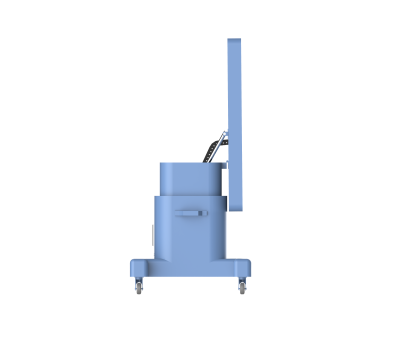

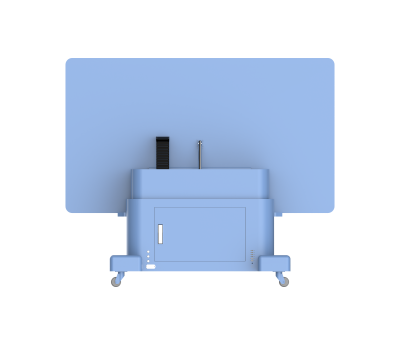

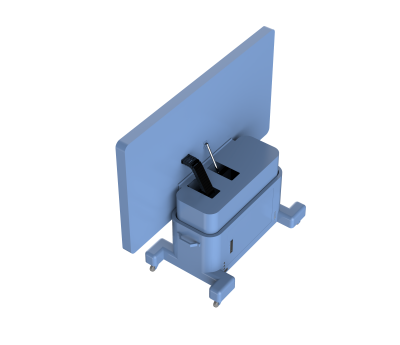

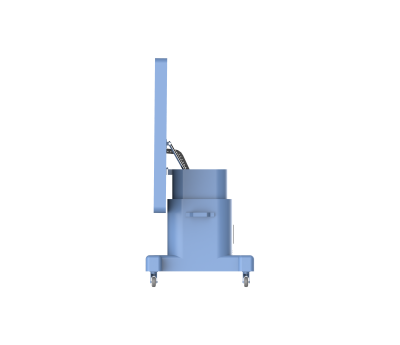

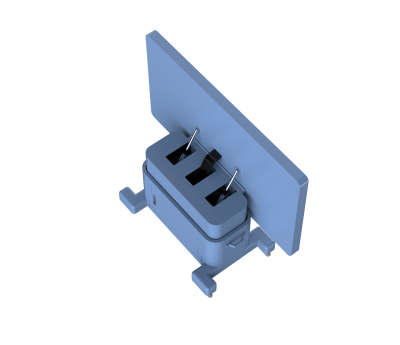

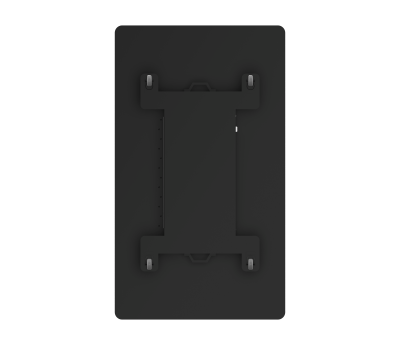

Vertical Placement
Single pole
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Double pole
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

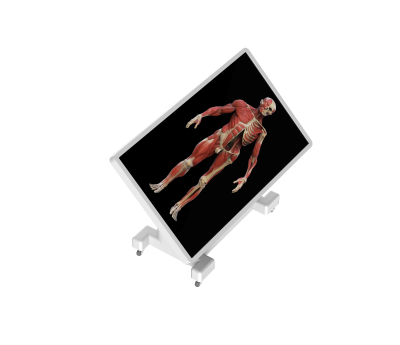

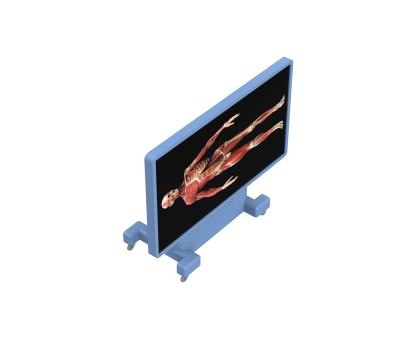

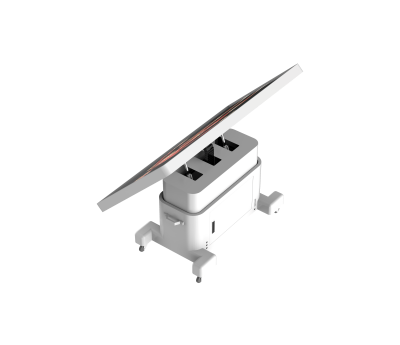

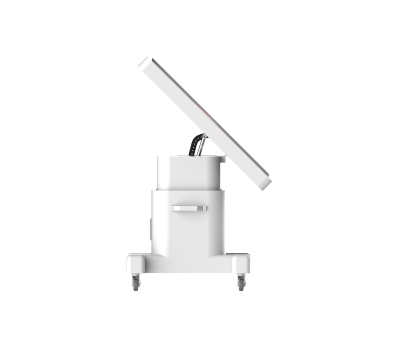

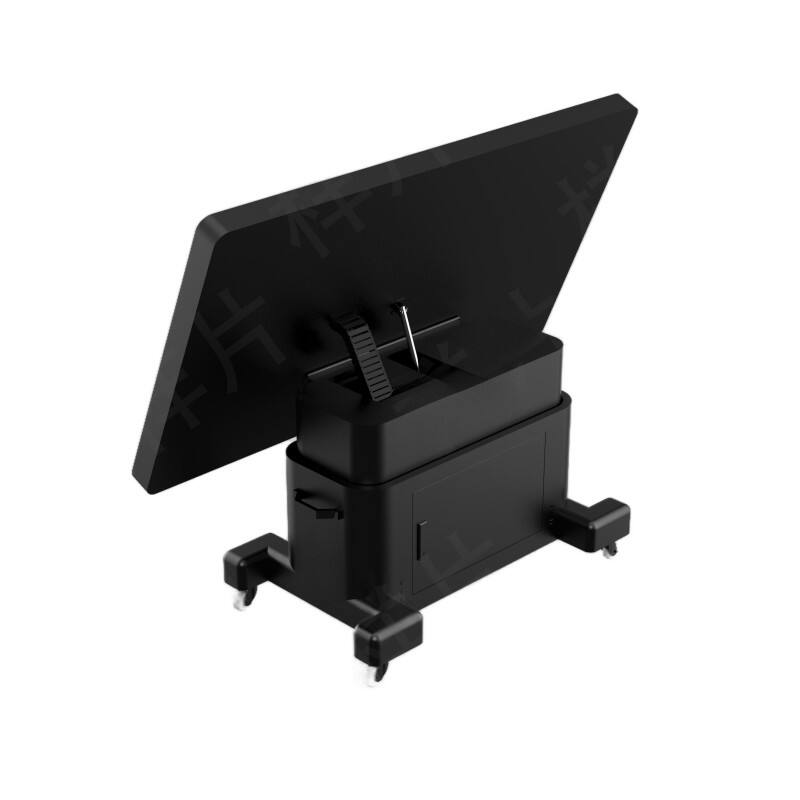

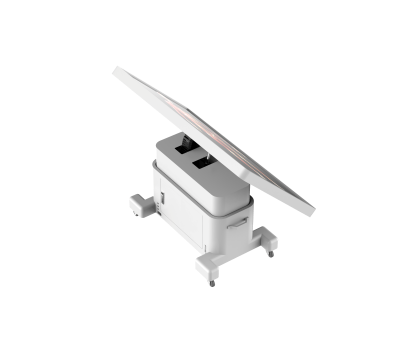

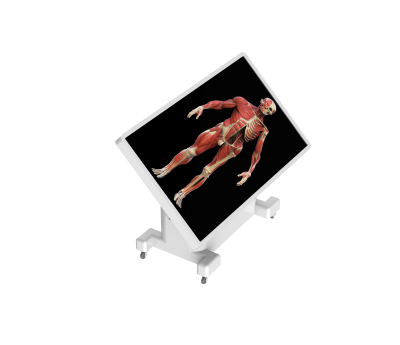

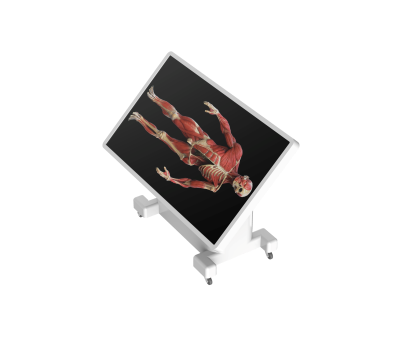

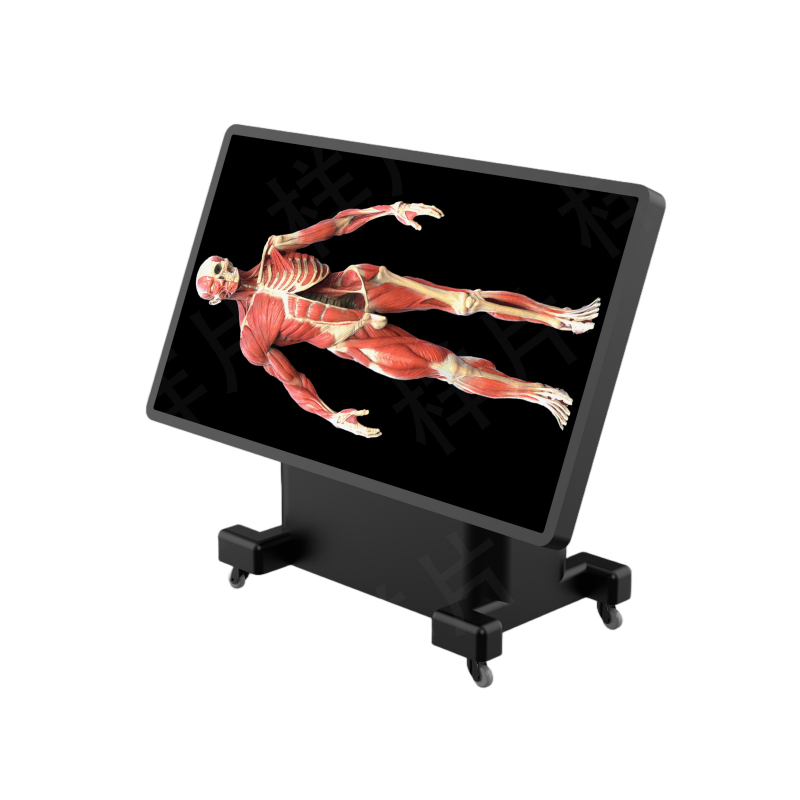

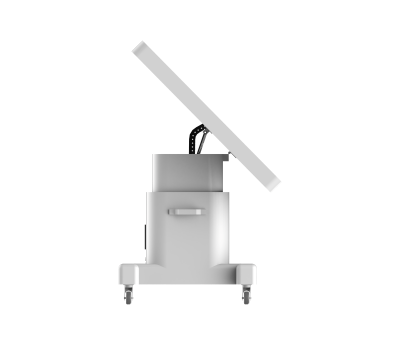

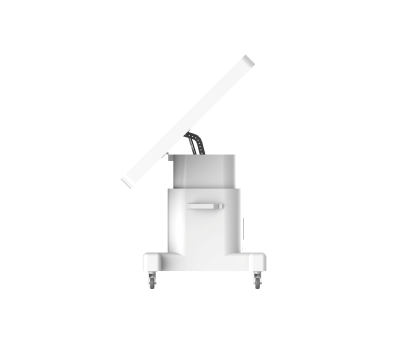

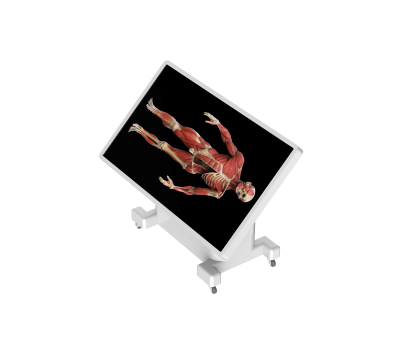

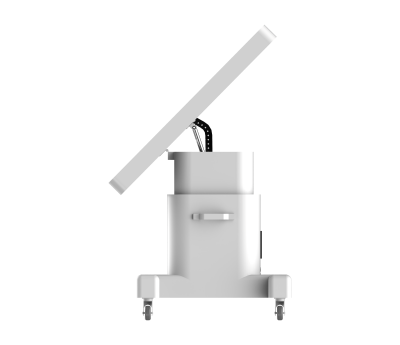

45 Degree Placement
Single pole
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Double pole
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

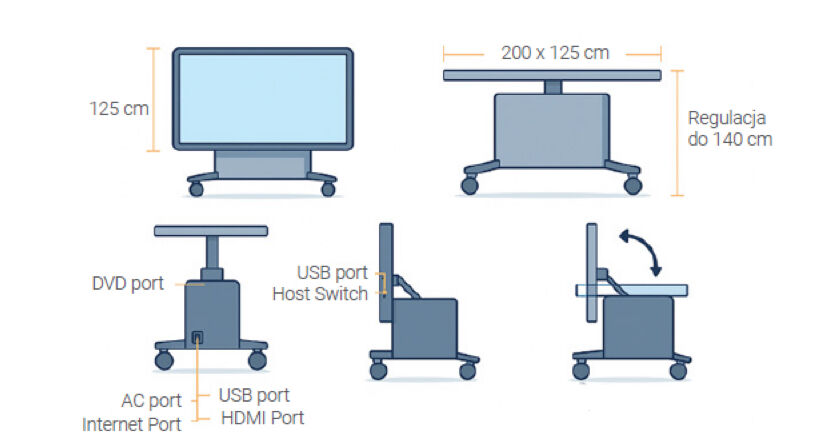

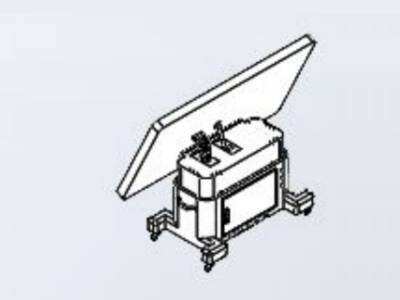

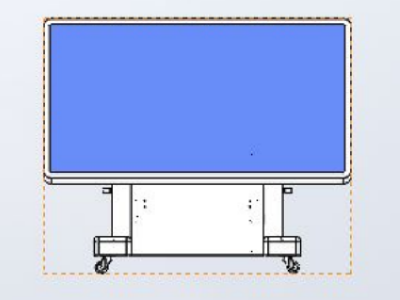

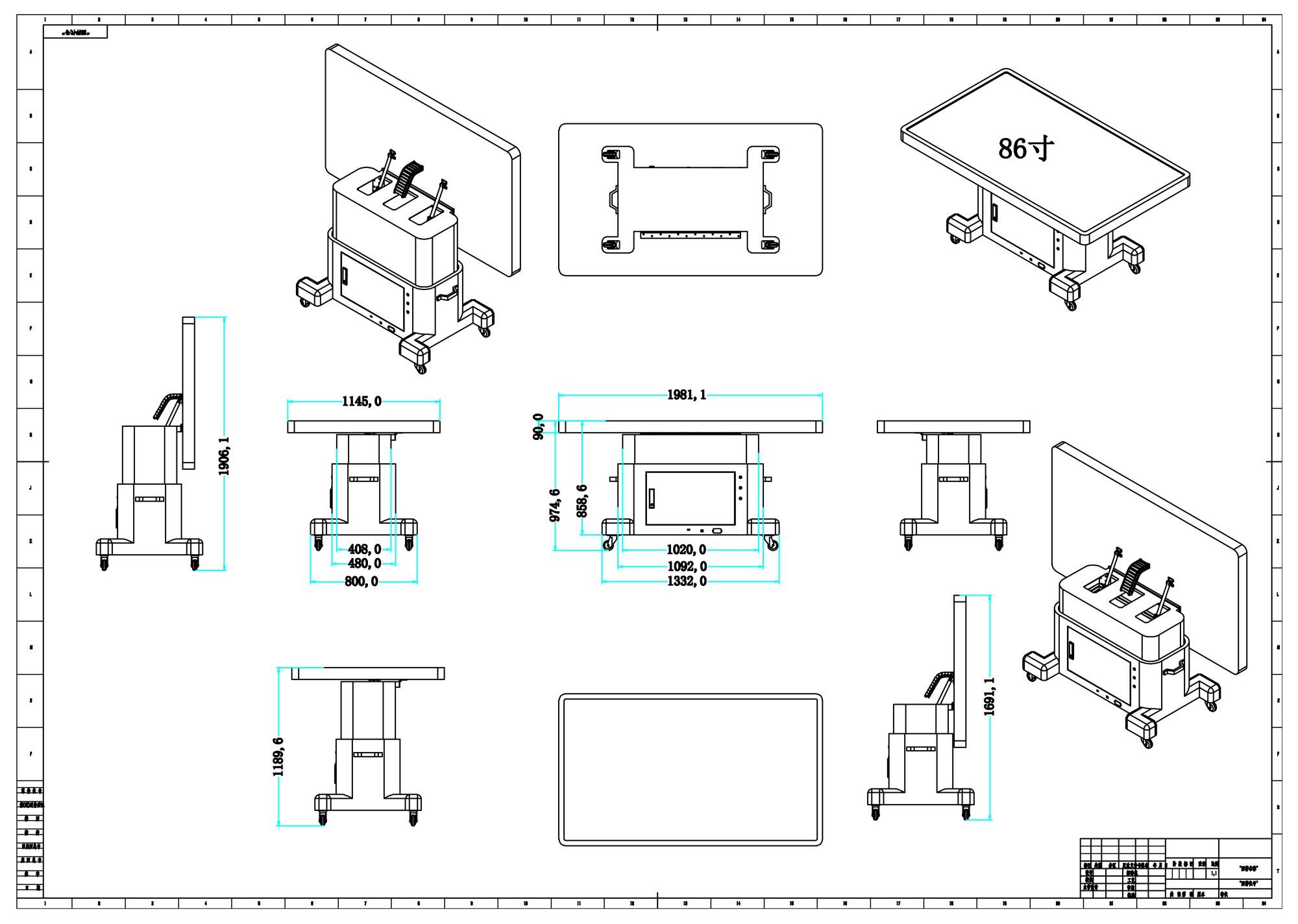

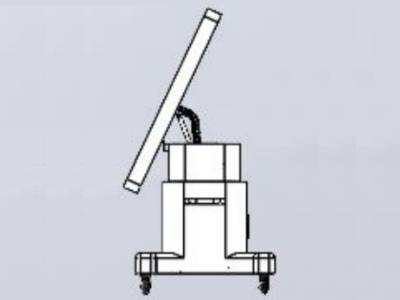

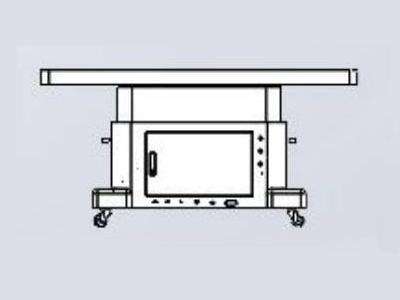

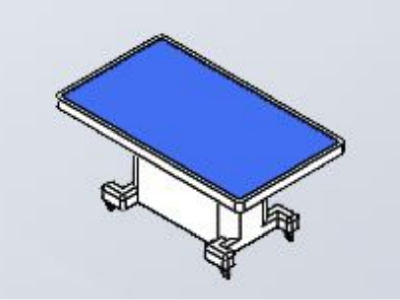

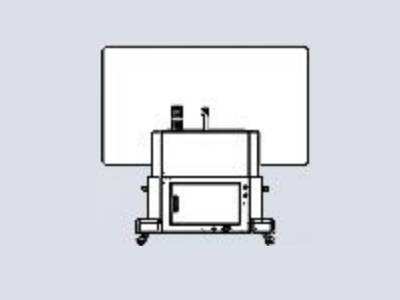

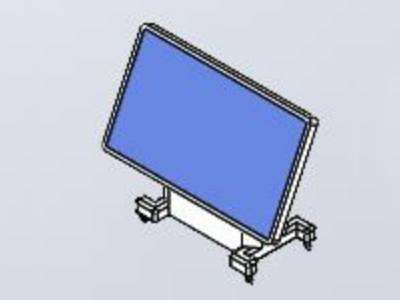

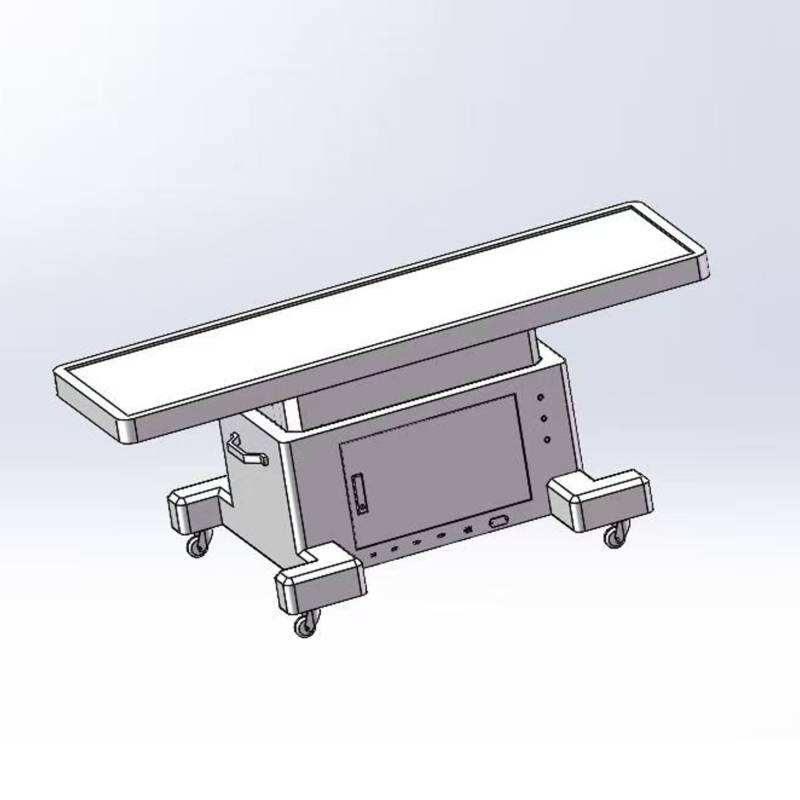

Schematic Drawings
(we can design the different dimension as per your requirements)
Main specifications
| Product Name | Virtual dissection anatomy table |
| Place of Origin | Guangdong, China |
| Brand Name | OEM |
| Type | Shirui Anatomy Table Classic |
| Function | virtual dissection |
| Style | lifting / rotating |
| Angle | 0° ~ 90° |
| Solution | 4K |
| voltage range | AC90—264V |
| maximum power dissipation | <160W |
| standby power | <5W |
| working temperature | 0℃～50℃ |
| working humidity | 10%-90%, no condensation |
| Weight | 150-180kgs |
| Structure | sheet metal frame |
| Frame color | Customizable |
| Display Size | 65-88 inches Capacitive Touch Screen |
| Socket | USB, HDMI, VGA, RJ45 |
Specification of main parts
1. LCD panel parameters
| Parameter | Details | Parameter | Details |
| Panel size | 65-88 inch | Panel type | a-Si TFT-LCD, liquid crystal glass |
| luminance | 500 cd/m2 (customizable) | contrast ratio | 1100:1 |
| resolution ratio | 3840x1080 | Viewing angle | 889/889/889/889 (Typ.)(CR≥10) |
| Display color | 16.7M | dot pitch | 0.5622（H）x0.5622（W） |
| Show area | 2158.85(W)×607(H) | life length | 50000H |
| screen voltage | 12V | screen current | 1.11/1.44A (Typ./Max.) |
| surface preparation | Haze 2%, Hard coating (2H) | Interface diagram |  |
2. Capacitive Touch Specifications
| Touch specifications | 40-point capacitive touch |
| Glass specifications | 4mm tempered glass |
| response speed | ≤10ms |
| touch accuracy | 90% central area accuracy ±1.5mm, 10% peripheral area accuracy ±2mm |
| touch diameter | <=2mm |
| input mode | Finger or passive capacitive pen |
| power consumption | ≤0.59W |
| working voltage | （5V +/-5% DC） |
| Theoretical click count | Infinite times |
3. Computer: window 10 system
| chassis | K8P |
| motherboard | qm6300-2c-p (Supports PCIE) Single Network 2 Strings |
| CPU | I7-12700F |
| internal storage | NB-DDR4-16G *2 |
| caliche | M.2-1TB-NVME-Q |
| video card | TX3050-6G small knife card |
| Fan radiator | CP6 |
| wifi | M.2-RTL8821CE |
| source | 19V9.5A |
| mainboard expansion interface | HDMI (1 port for external devices) |
| USB (2-4 external ports for external enclosures) | |
| Audio line (1 channel supports external chassis connection) | |
| DP line (1 channel supports external chassis connection) |
