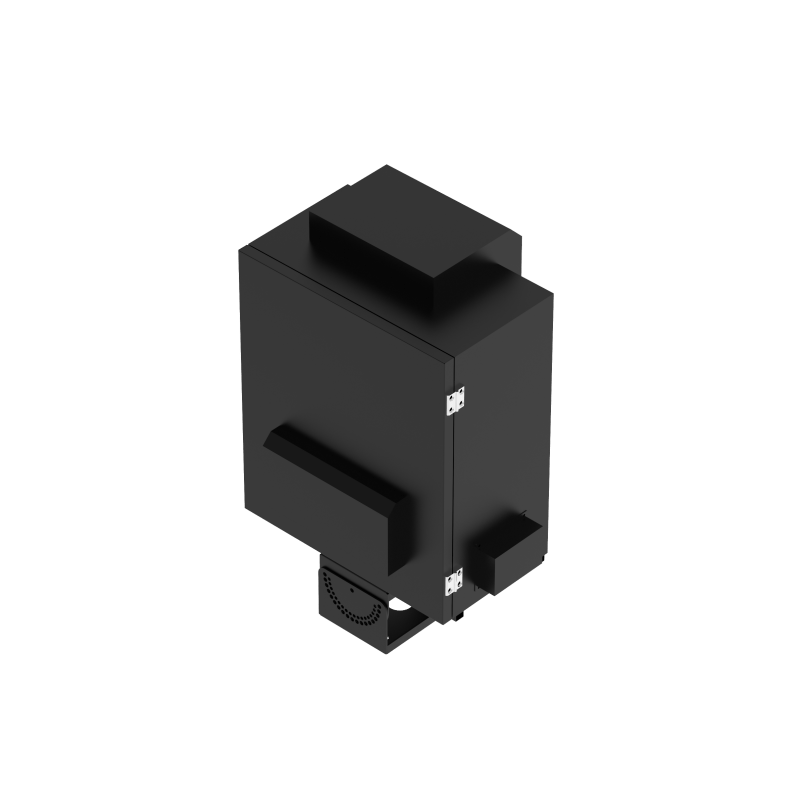

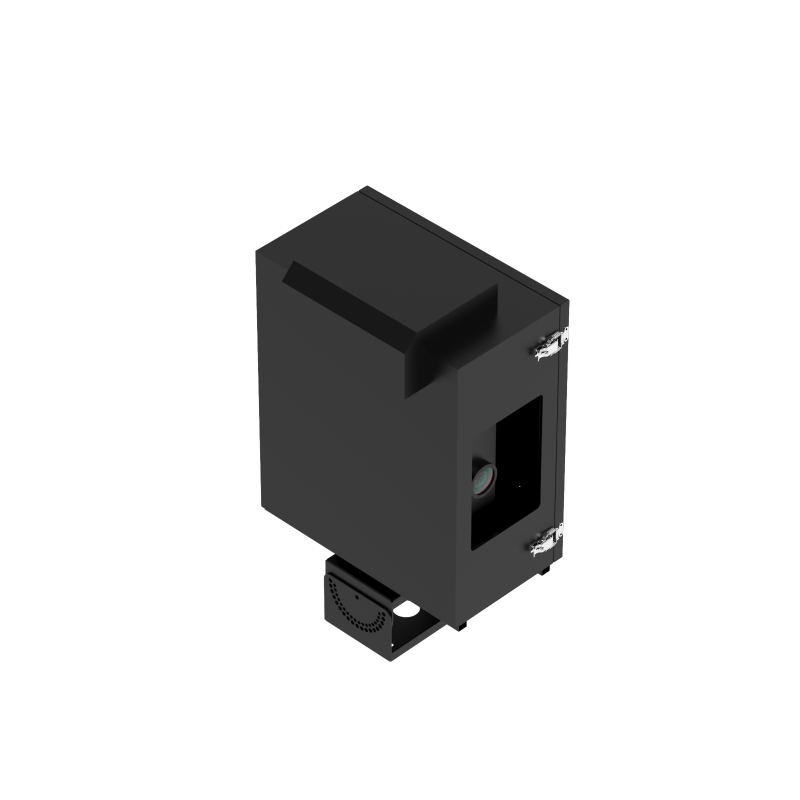

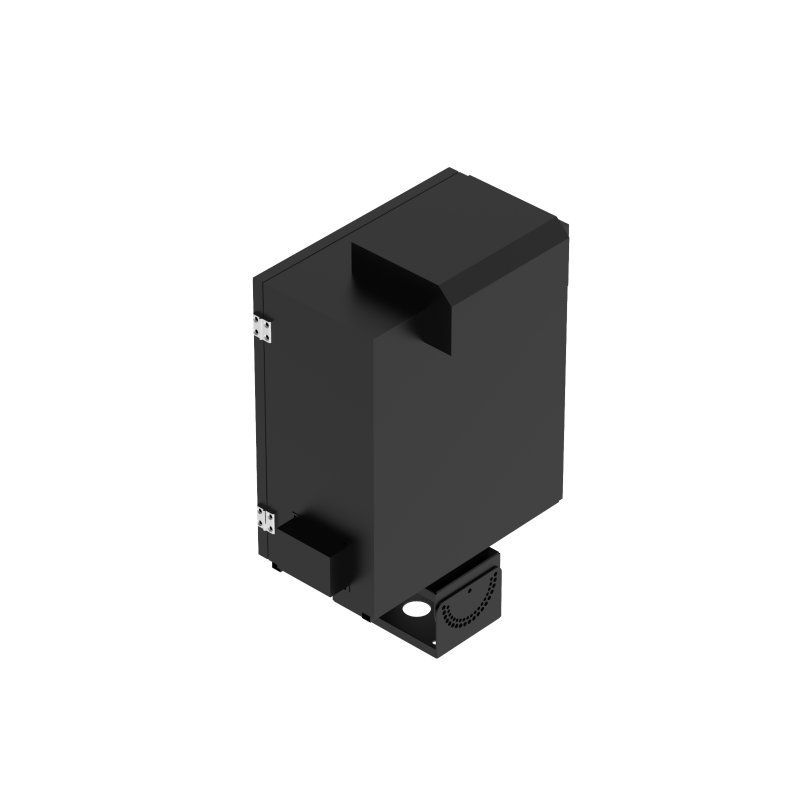

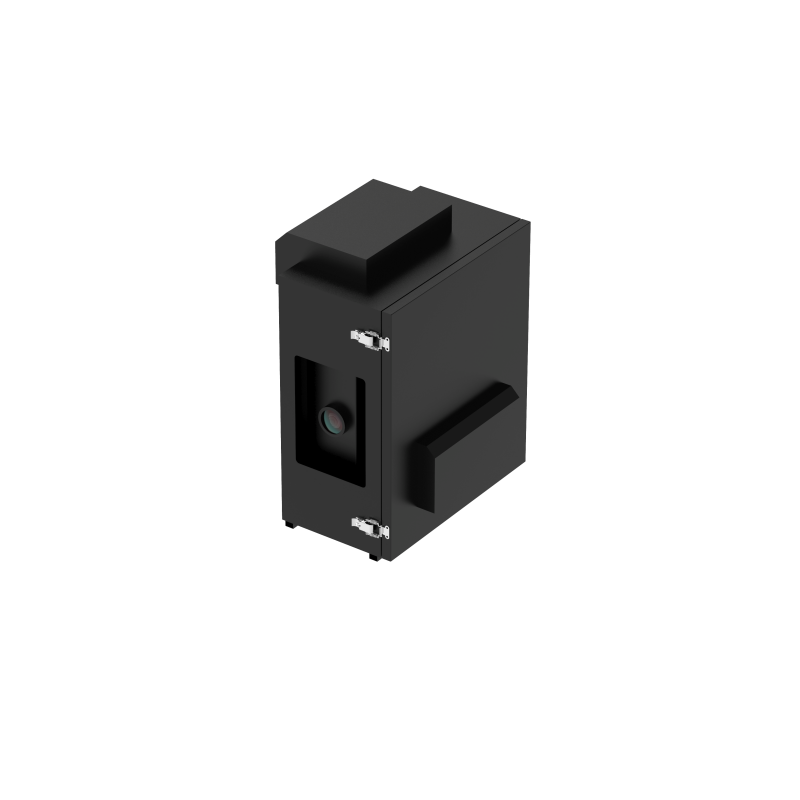

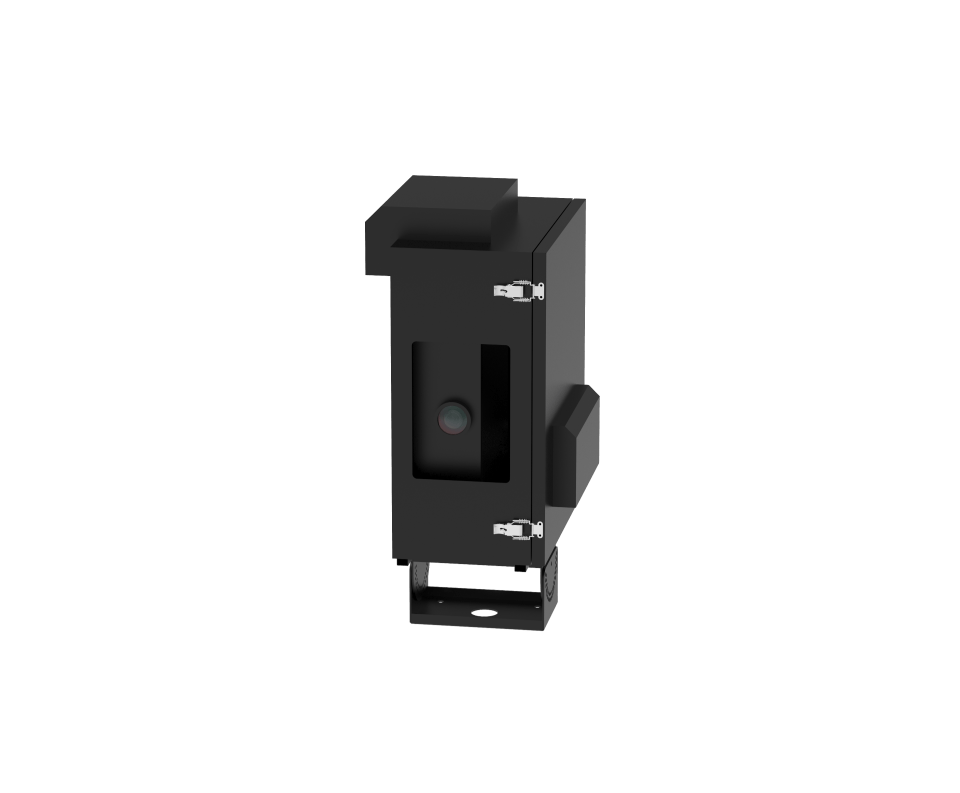

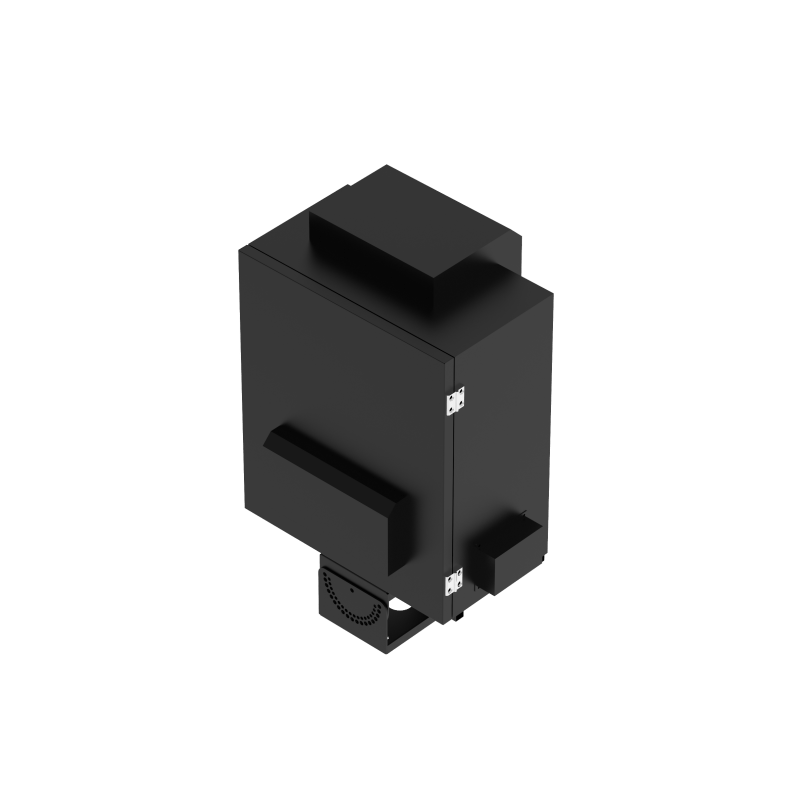

Outdoor Projector Enclosure IP65 Waterproof Stainless Steel Fan-Cooled or Air-Conditioned for Home Theater & Commercial Use
This is a robust and durable solution, specifically designed to protect projection systems in outdoor environments. This protective box is highly suitable for high-end outdoor home theaters, rooftop lounge events, building facade projections, retail advertising displays and commercial venues. It can protect high-performance projectors from the influence of the external environment while maintaining their best working condition.
This protective box is made of high-quality stainless steel. The thickness of the plates is customized according to the size and application, providing excellent corrosion resistance and structural strength. The outer surface has undergone mechanical grinding, putty filling and powder coating treatment, and has been baked to ensure long-term durability, UV resistance and excellent weather resistance. With a protection grade of IP65, it can effectively prevent dust and resist water flow erosion, making it very suitable for outdoor use in rainy days. The interior can be equipped with either air-cooled or fully air-conditioned cooling systems to ensure that the projector remains within a safe temperature and humidity range, preventing overheating or condensation from affecting the picture quality. The optical window is made of high-transparency glass, which can maintain the brightness and clarity of the picture even in a sealed protective box. Whether for residential or commercial projection installation, this IP65-grade stainless steel protective box can provide reliable protection, professional performance and long-term durability, safeguarding your outdoor projection system.
- Overview
- Recommended Products
- Utilize industrial silent fans for cooling, expelling hot air from the waterproof box, while simultaneously drawing in fresh air through intake vents to create a circulation effect. This helps reduce the heat emitted by the projector within the waterproof box, and the heating module removes fog and moisture from the glass.
- Fans and air conditioners together form a dual system, used in high lumen machines and also suitable for harsh weather conditions. The air conditioner not only cools but also dehumidifies, while the heating module clears water droplets and fog from the glass.
- The material for waterproof boxes is divided into external and internal materials. The external material is typically made from galvanized steel sheets or stainless steel with thicknesses of 1.2-1.5-1.8-4mm, depending on its shape and size. The internal material is usually made from galvanized steel or stainless steel.
- Surface treatment involves applying a secret putty, mechanical sanding, spraying outdoor powder paint, and baking. It offers waterproofing, anti-corrosion, anti-static, and heat resistance features. The color can be customized based on the specific needs of the customer's project.
Product Introduction
Practical Features
1.The temperature-controlled cabinet has functions of waterproofing, dust-proof, anti-corrosion, heating, and dehumidification.
2.The projector platform can realize linear angle adjustment (≤10°, and larger adjustment angles can also be customized).
3.Multi-door structure design, convenient for projector installation and maintenance.
4.There is a blowing heating device inside to ensure that the projection port surface is free of frost and fog.
5.The legs and door body are designed with a strengthened structure reinforced by strong wind curing, and lifting rings are added to ensure the safety of the temperature-controlled cabinet before and after installation.
6.The projection port uses optical ultra-white glass with a 95% light transmittance
Product Parameters
| External Size | custom | Material | Galvanized steel |
| IP level | IP65 | Type | Control Box |
| Model Number | SR-5K-KG | Brand Name | thisshirui |
| Place of Origin | Guangdong, China | Material | Galvanized Steel |
| Process | Laser Cutting Bending Stamping Welding | Surface treatment | Painting\Powder Coating\Plating\Polishing |
| Product name | outdoor projector base station | Function | Smart device case |
| Application | Outdoor Usage | Service | Customize ODM OEM |
| Keyword | outdoor projector enclosure | Drawing format | 3D/CAD/DWG//STEP/PDF |
| IP Rating | IP65 | ||

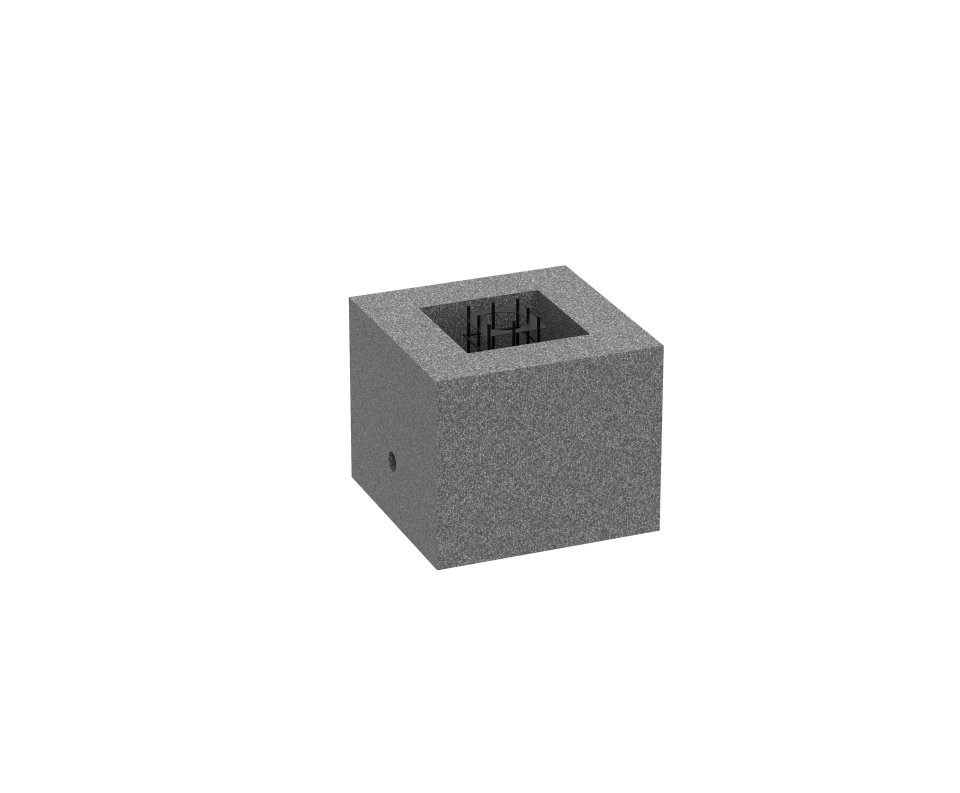

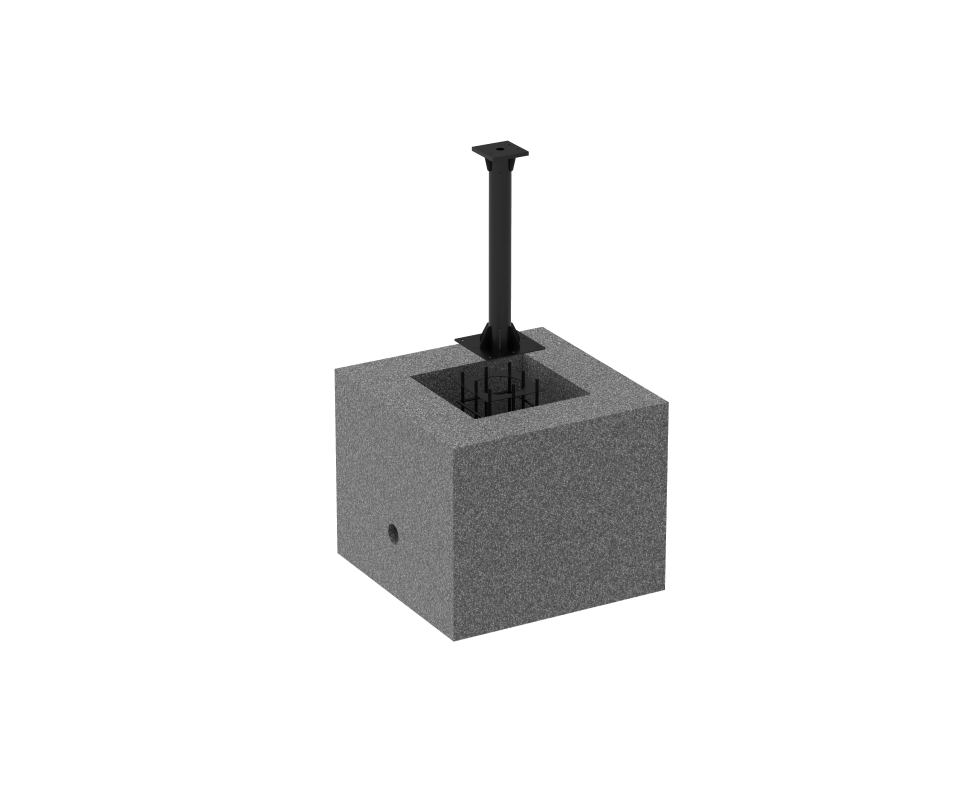

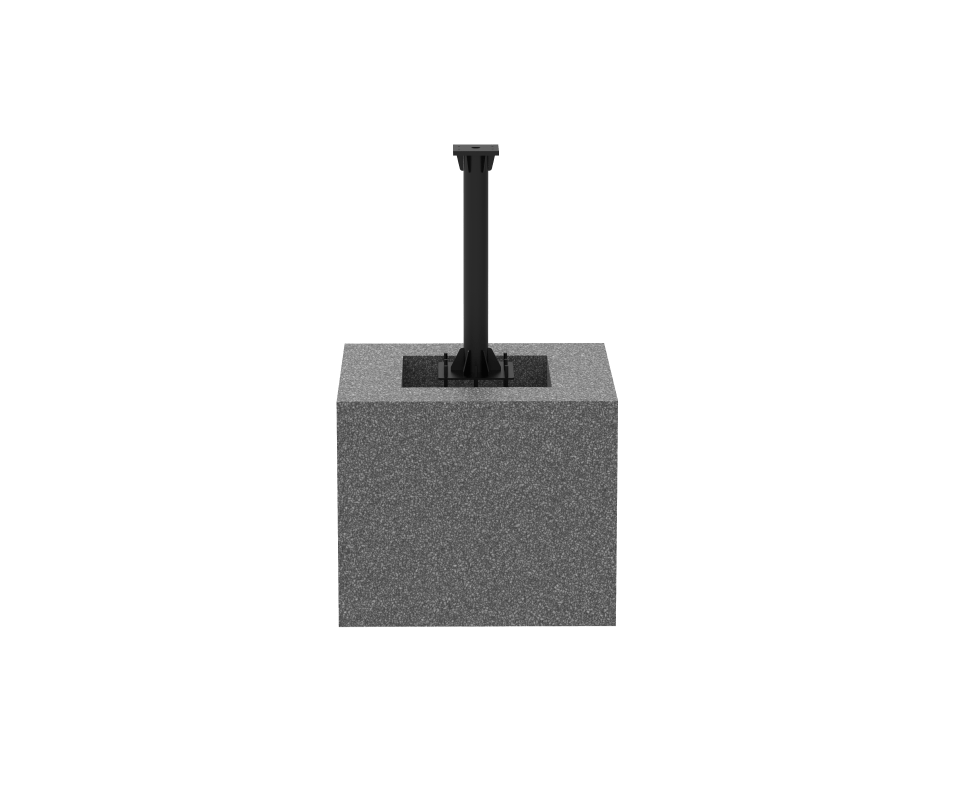

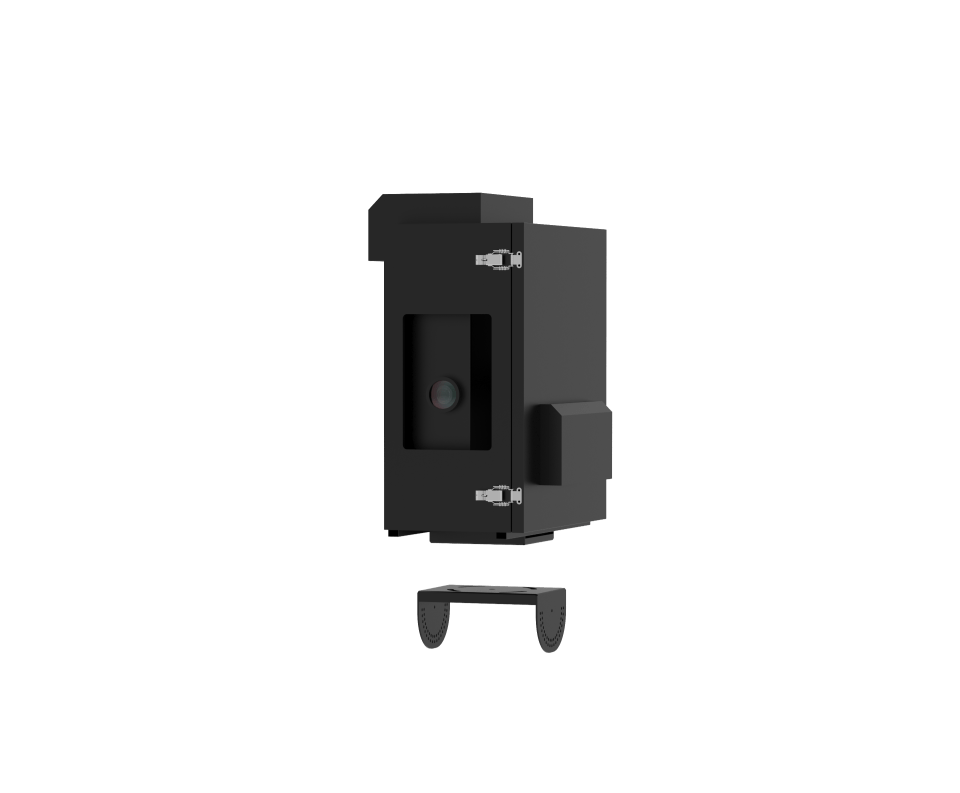

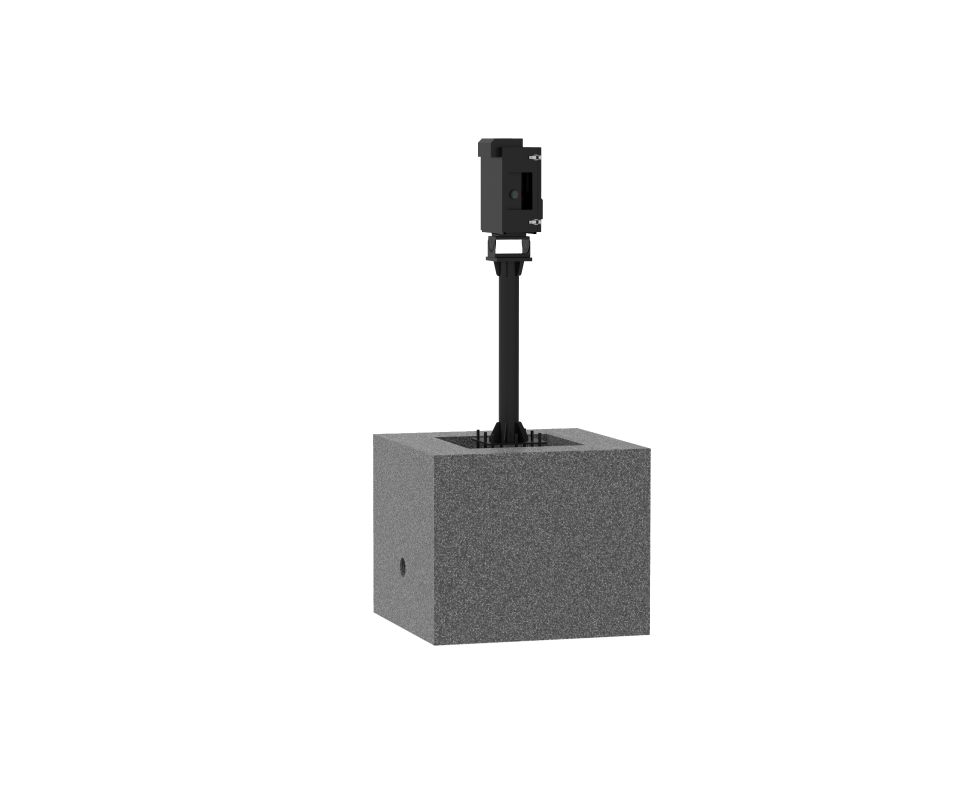

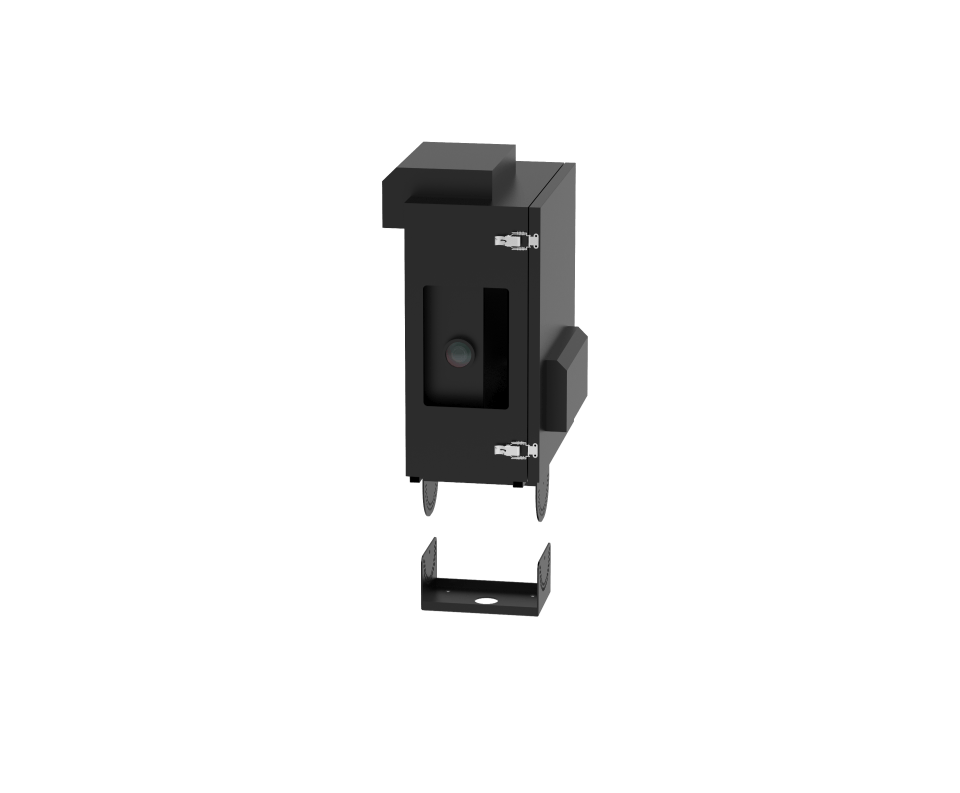

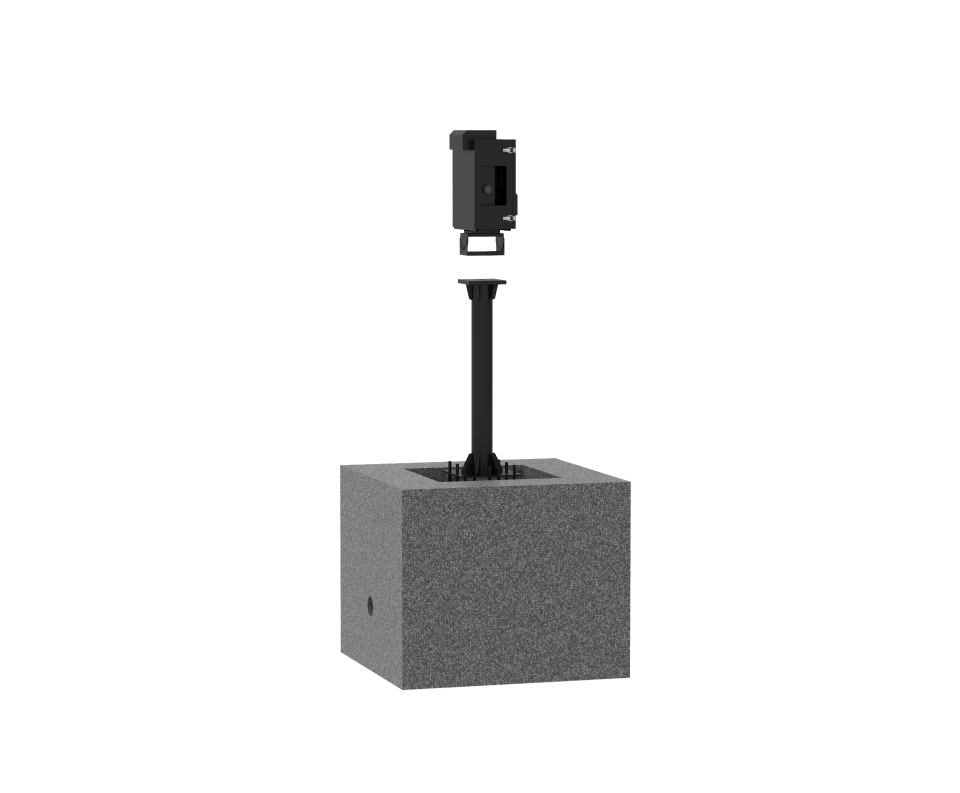

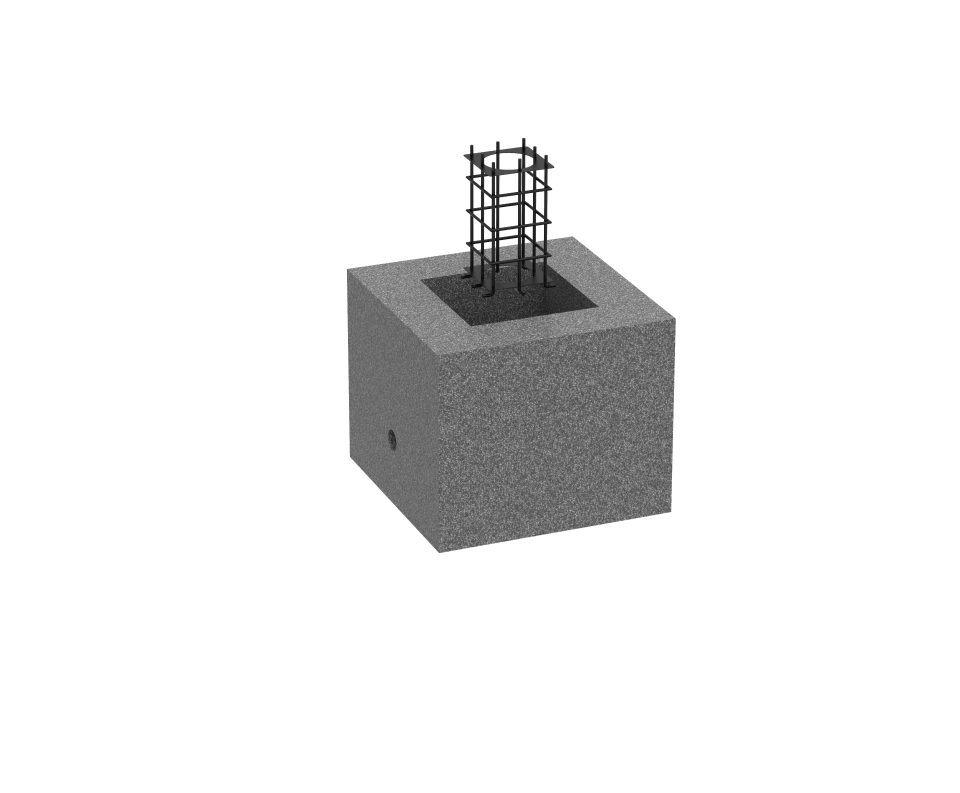

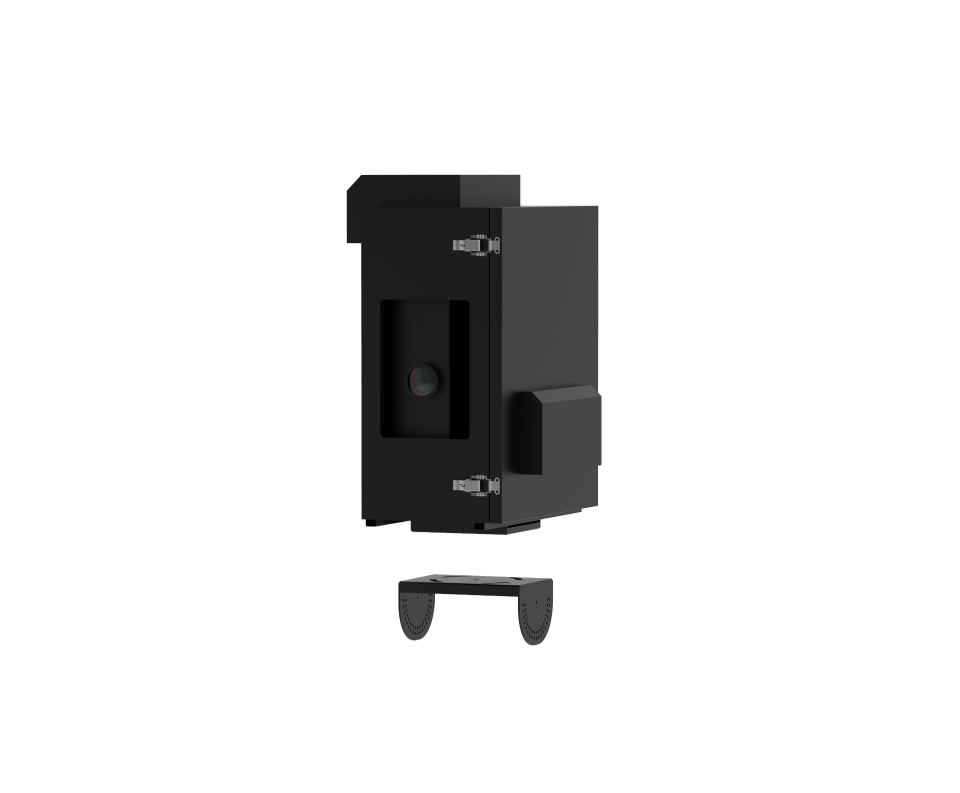

Installation Steps
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

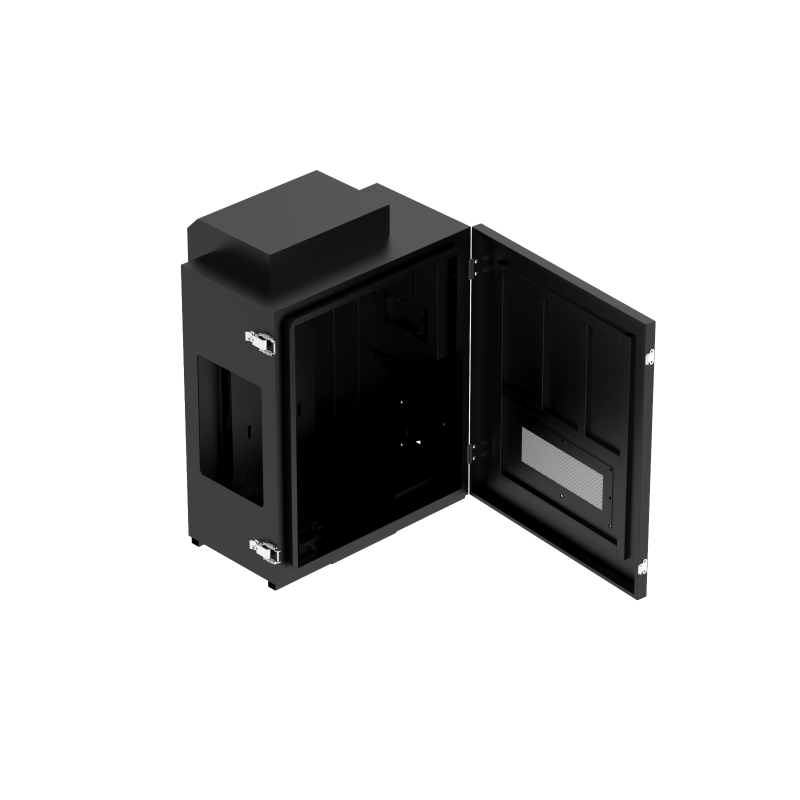

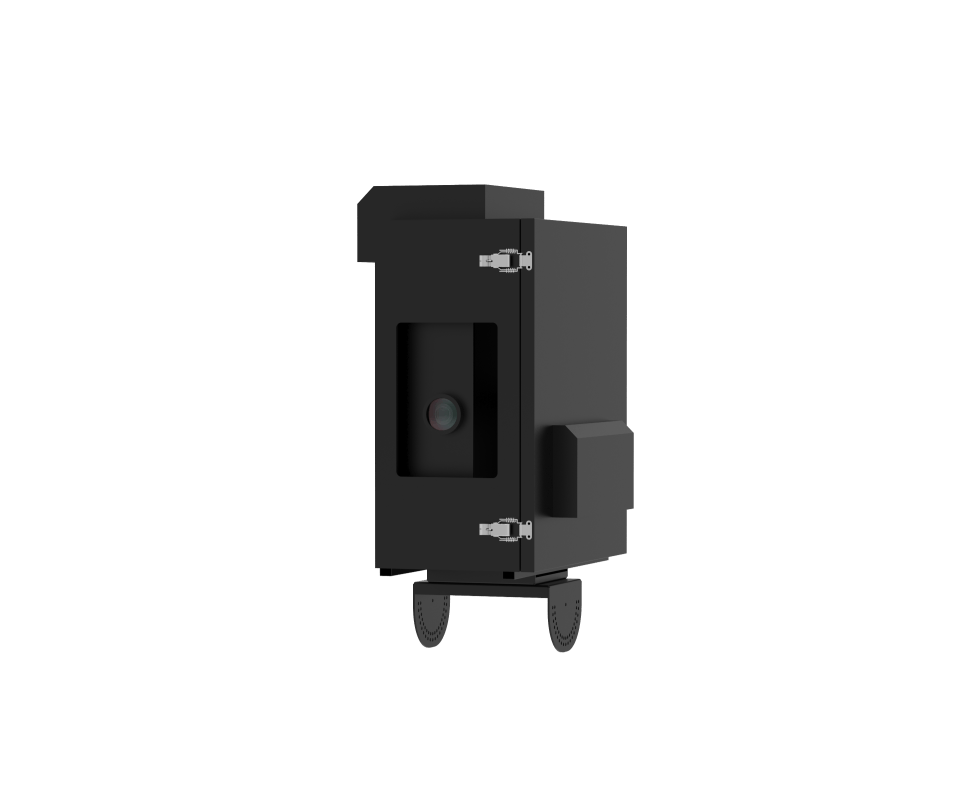

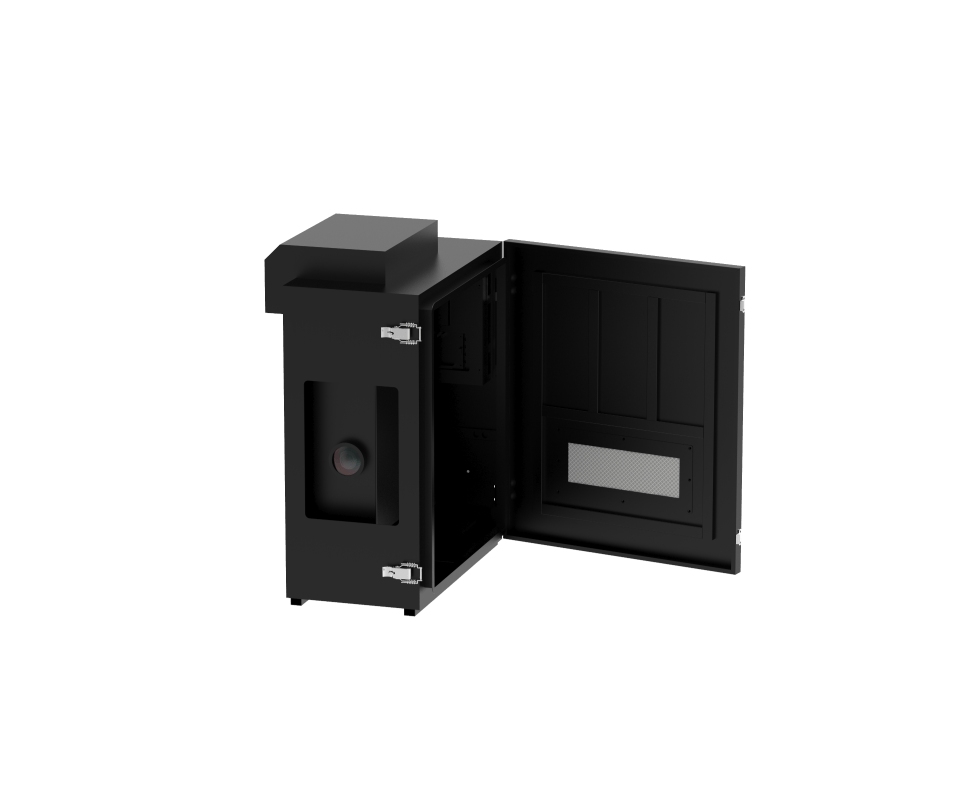

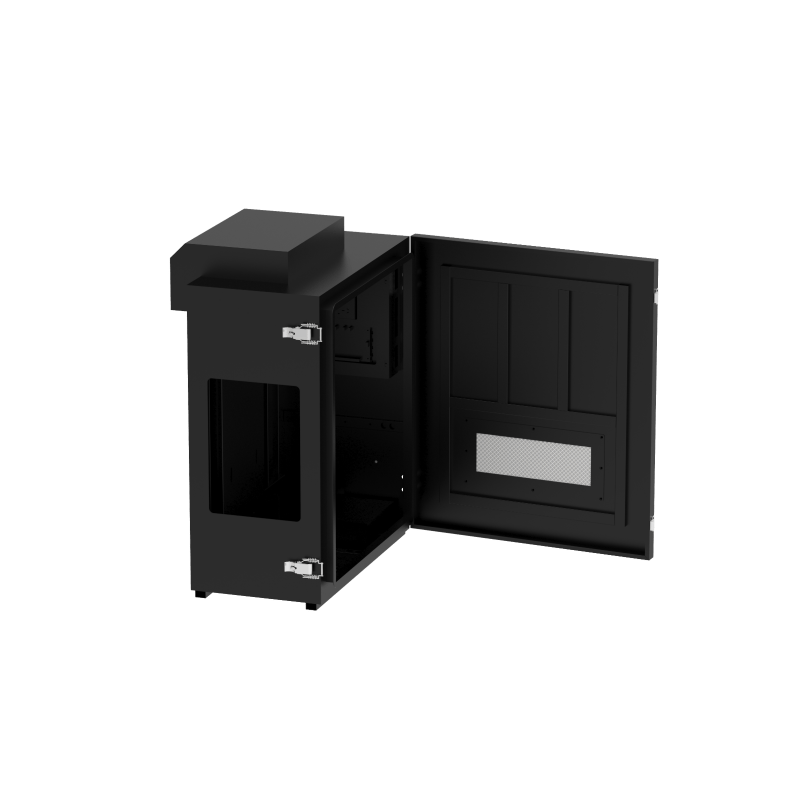

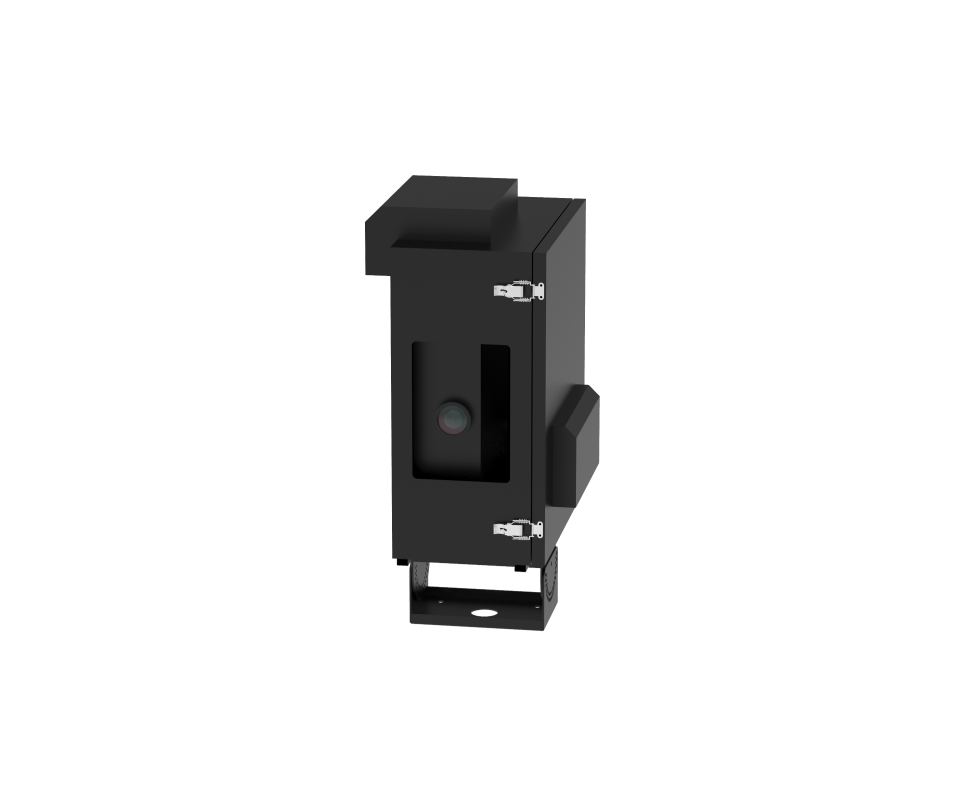

Internal structure of the waterproof box
The waterproof box structure is divided into six main parts: the outer layer of the sheet metal body, the intelligent main control box, the maintenance waterproof door, the projector adjustment base, high-transparency optical glass, and stainless steel installation hanging rings for waterproof box adjustment. The placement method of the projector, the projection method, and the installation method of the waterproof box determine the overall structural design of the waterproof box. In addition to ensuring a stable working environment for the projector, the design of the waterproof box also takes into account the projection angle of the projector and its safety in public places.
Practical features of waterproof boxes
1. The waterproof box has functions such as waterproofing, dustproofing, corrosion resistance, anti-frosting, heating, and dehumidification.

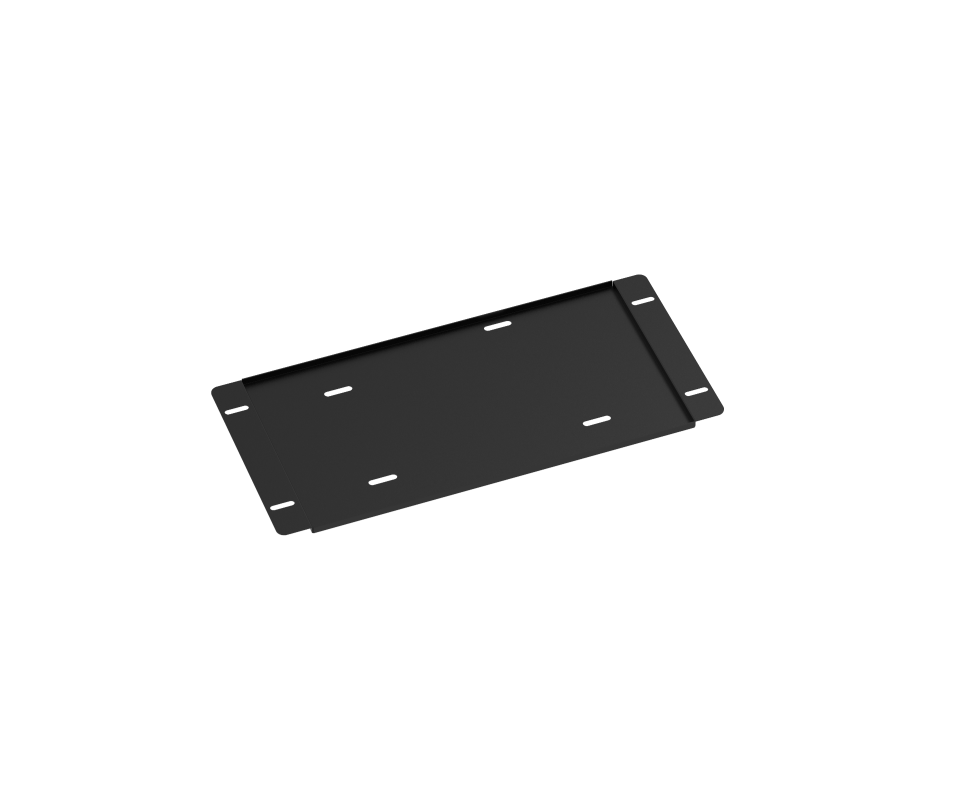

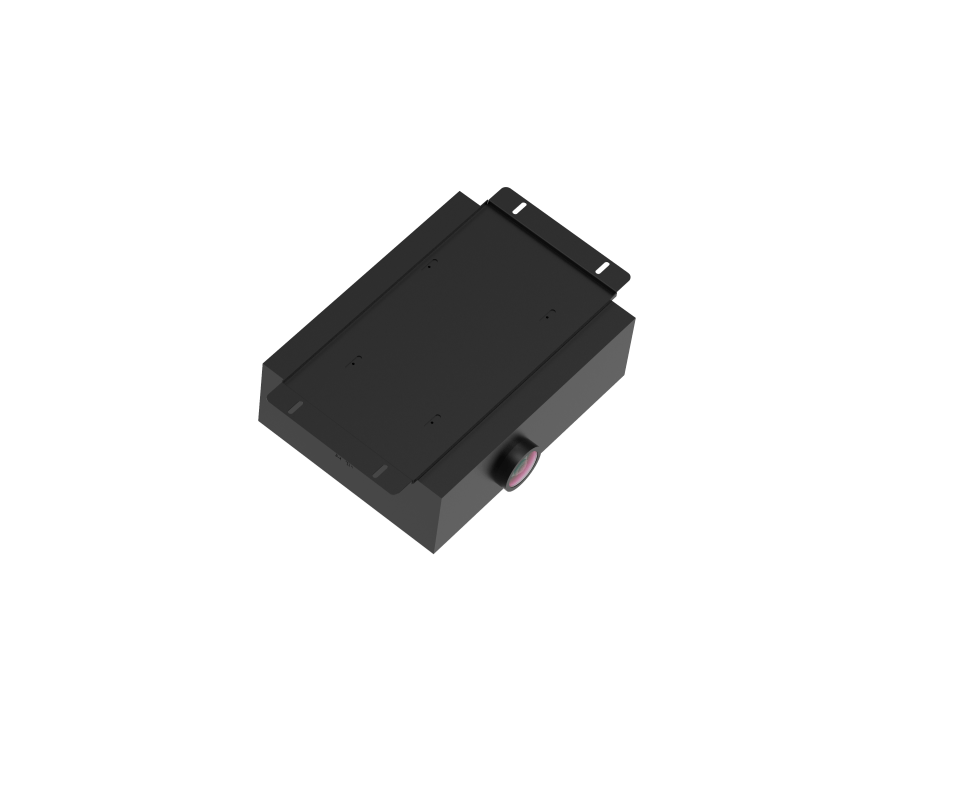

2. The projector platform allows for linear angle adjustment (up to 10 degrees, with larger adjustment angles available upon customization).

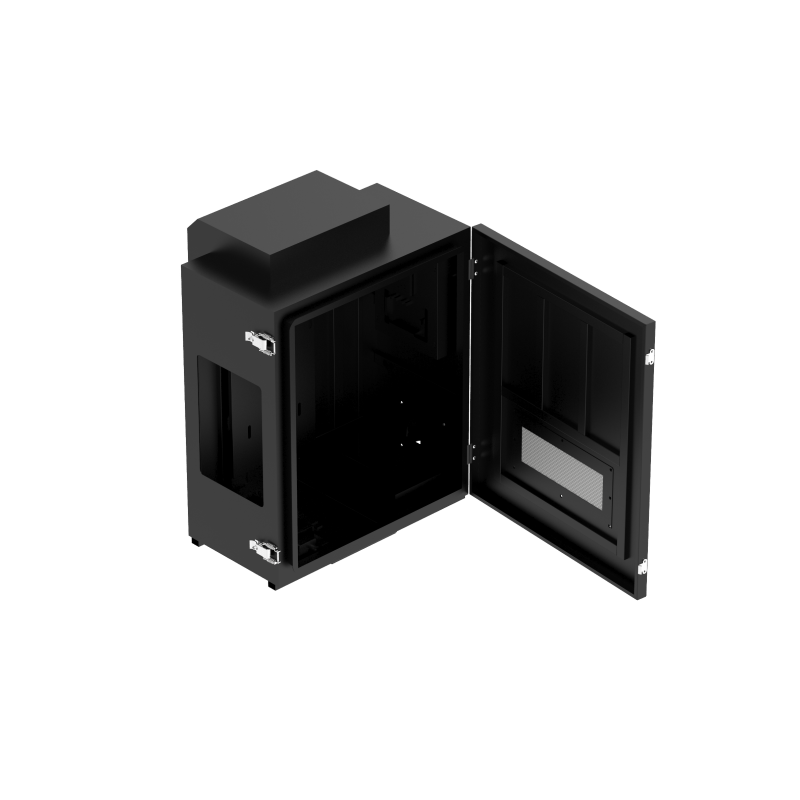

3. The multi-door design facilitates easy installation and maintenance of the projector.
4. It is equipped with an internal hot air blower to ensure that there is no frost or fog on the projection surface.
5. The tripod and door use reinforced structures designed for strong wind solidification, and additional hanging protection ensures the safety of the waterproof box before and after installation.
6. Inside, it includes a 32A AC contactor, a 16A or 10A multifunctional socket.
7. The projection port uses optical ultra-white glass with a 95% light transmission rate.
Wind-cooling
Air-conditioning
Waterproof box material
Surface treatment
