Air-cooled Waterproof Box Supports Custom Dustproof, Moisture-proof and Dehumidification

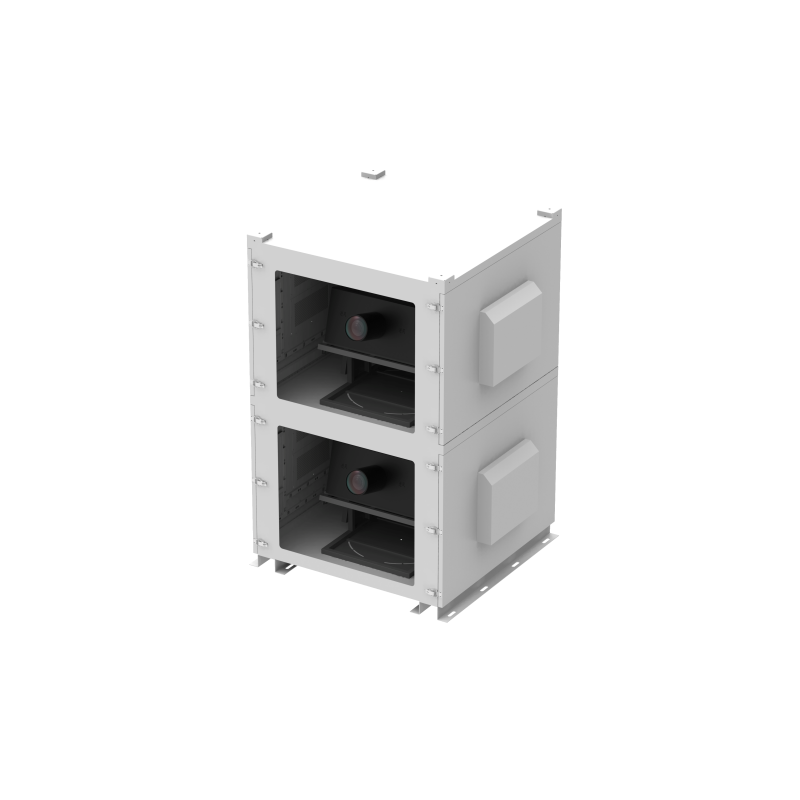

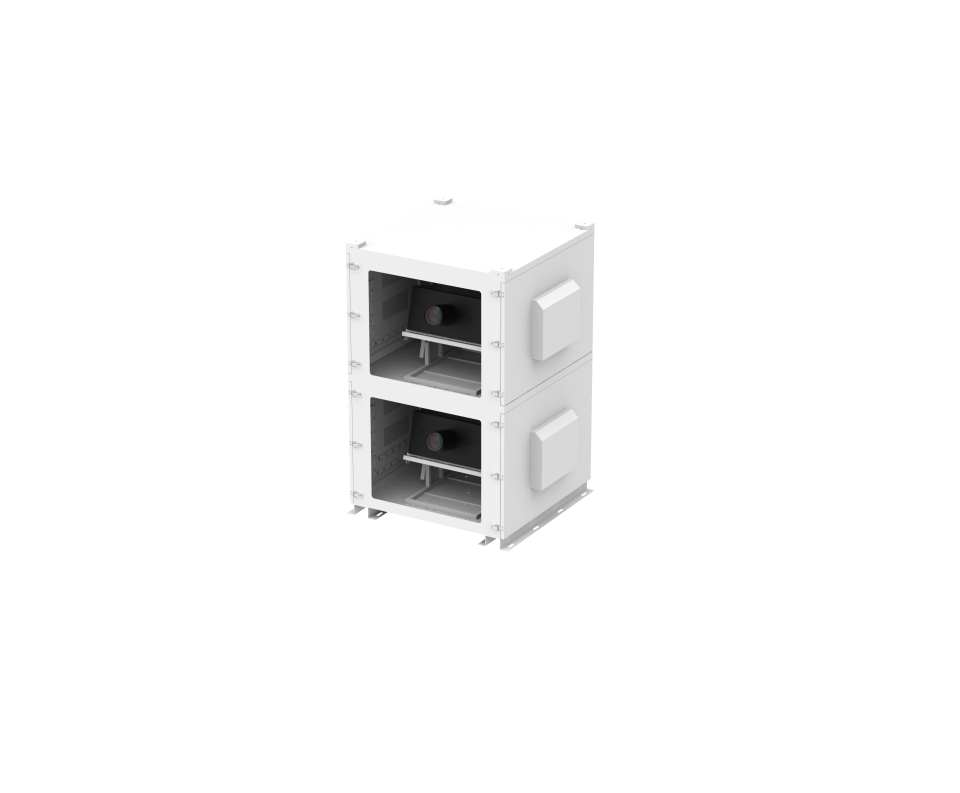

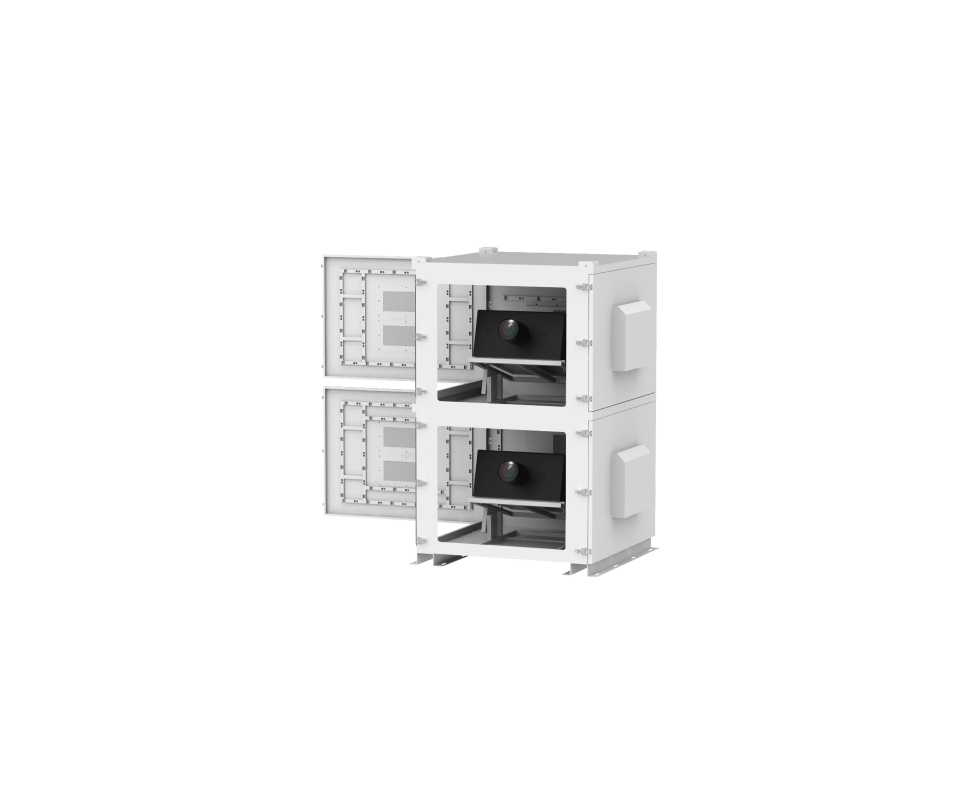

The “Air‑cooled Waterproof Box – Supports Custom Dustproof, Moisture‑proof and Dehumidification” is crafted for outdoor projection installations where weather, humidity and dust pose serious challenges. Ideal for façade mapping, resort projections, theme‑park installations or any environment demanding reliable equipment protection, this housing can house multiple projectors (2‑5 units) and supports both horizontal and vertical installation with angle adjustment.
Constructed from galvanized steel and finished with outdoor‑grade spray paint, the enclosure meets IP65 standards for waterproofing and dust‑proofing. The integrated air‑cooling system regulates temperature while a dehumidification module keeps internal humidity low, preventing condensation and protecting sensitive optics and electronics. Premium materials and custom‑tailored design—such as multiple door access, reinforced structure and customizable colour—enable the housing to deliver long‑term durability and adaptability to specific project needs. With this waterproof, dustproof and climate‑controlled box, outdoor projection systems can operate with confidence in harsh environments and deliver high‑quality results without compromise.
- Overview
- Recommended Products
- Utilize industrial silent fans for cooling, expelling hot air from the waterproof box, while simultaneously drawing in fresh air through intake vents to create a circulation effect. This helps reduce the heat emitted by the projector within the waterproof box, and the heating module removes fog and moisture from the glass.

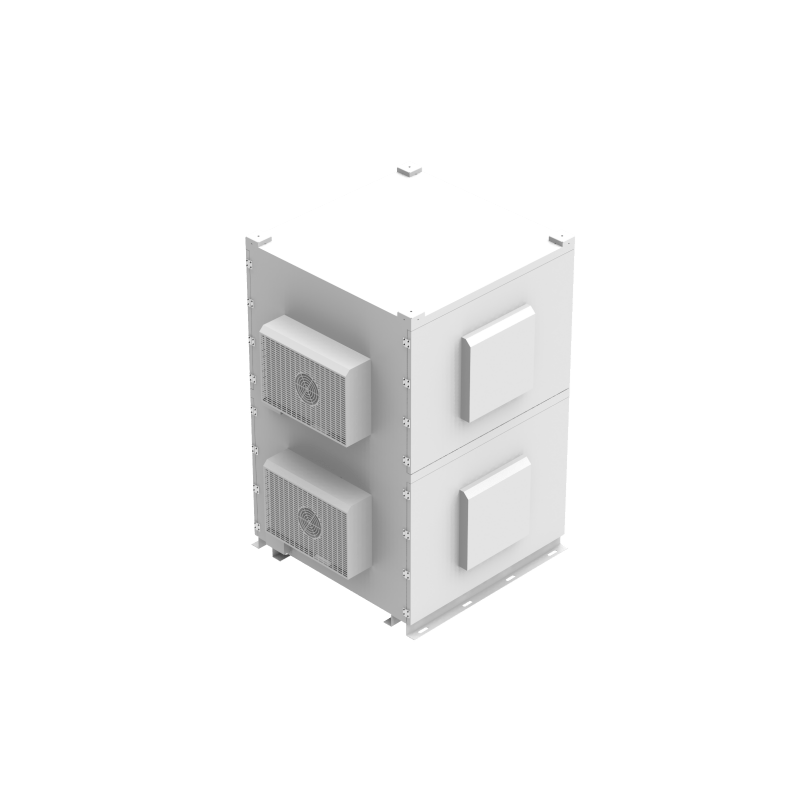

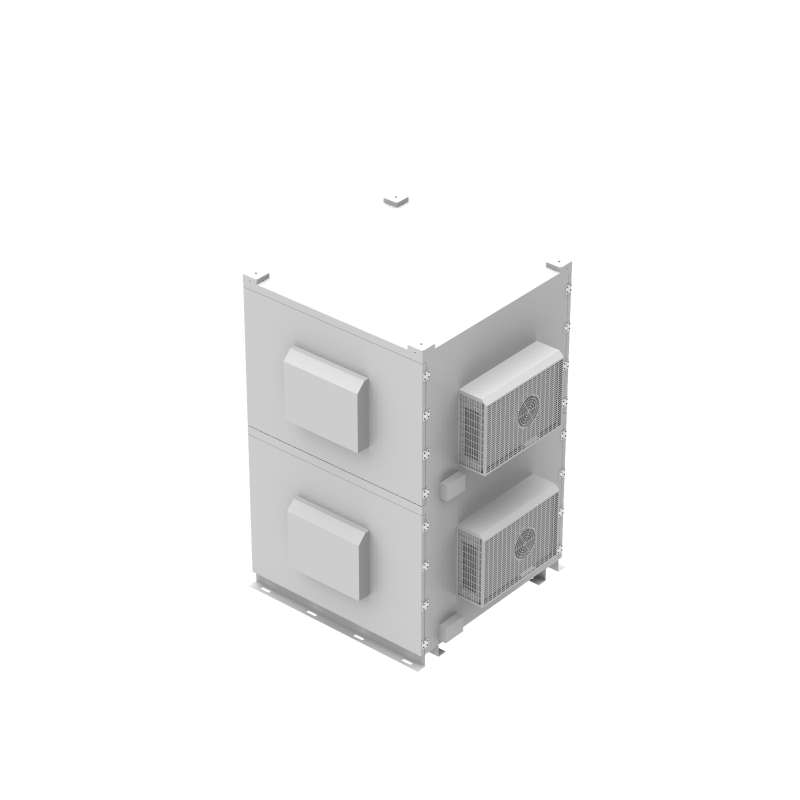

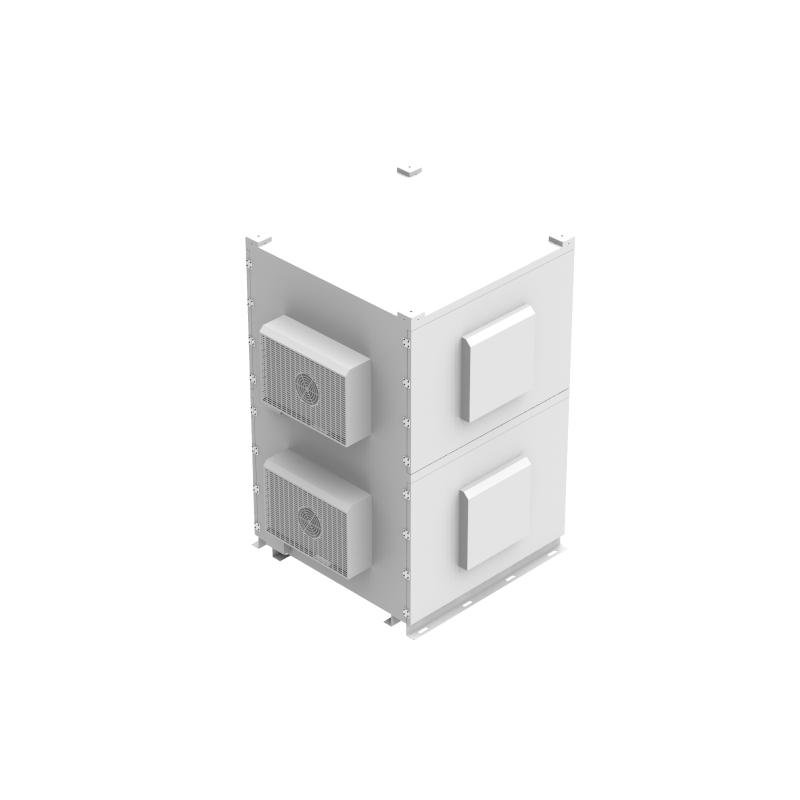

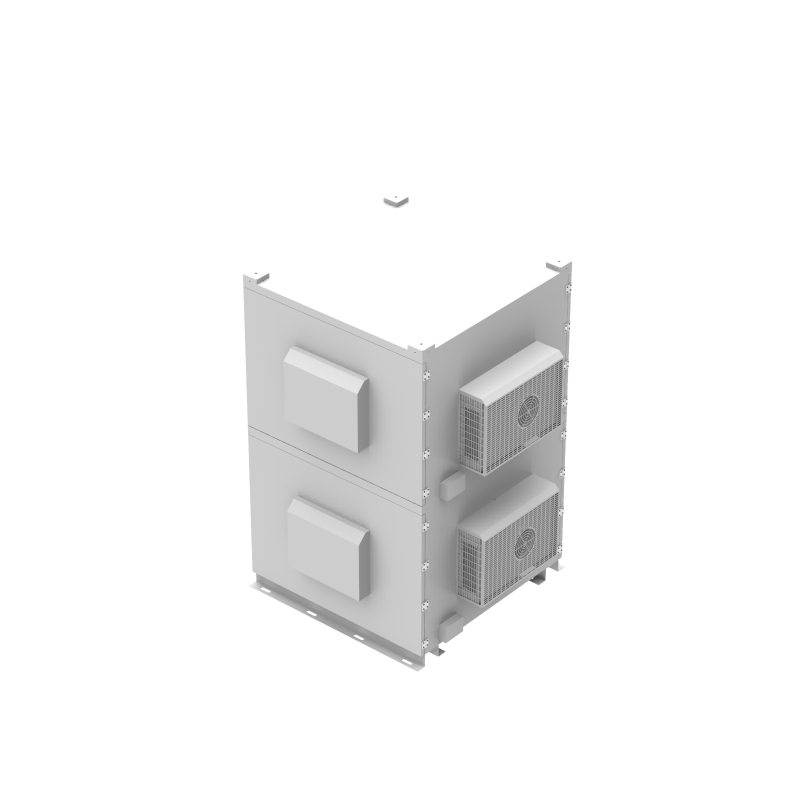

- Fans and air conditioners together form a dual system, used in high lumen machines and also suitable for harsh weather conditions. The air conditioner not only cools but also dehumidifies, while the heating module clears water droplets and fog from the glass.
- The material for waterproof boxes is divided into external and internal materials. The external material is typically made from galvanized steel sheets or stainless steel with thicknesses of 1.2-1.5-1.8-4mm, depending on its shape and size. The internal material is usually made from galvanized steel or stainless steel.
- Surface treatment involves applying a secret putty, mechanical sanding, spraying outdoor powder paint, and baking. It offers waterproofing, anti-corrosion, anti-static, and heat resistance features. The color can be customized based on the specific needs of the customer's project.
Product Introduction

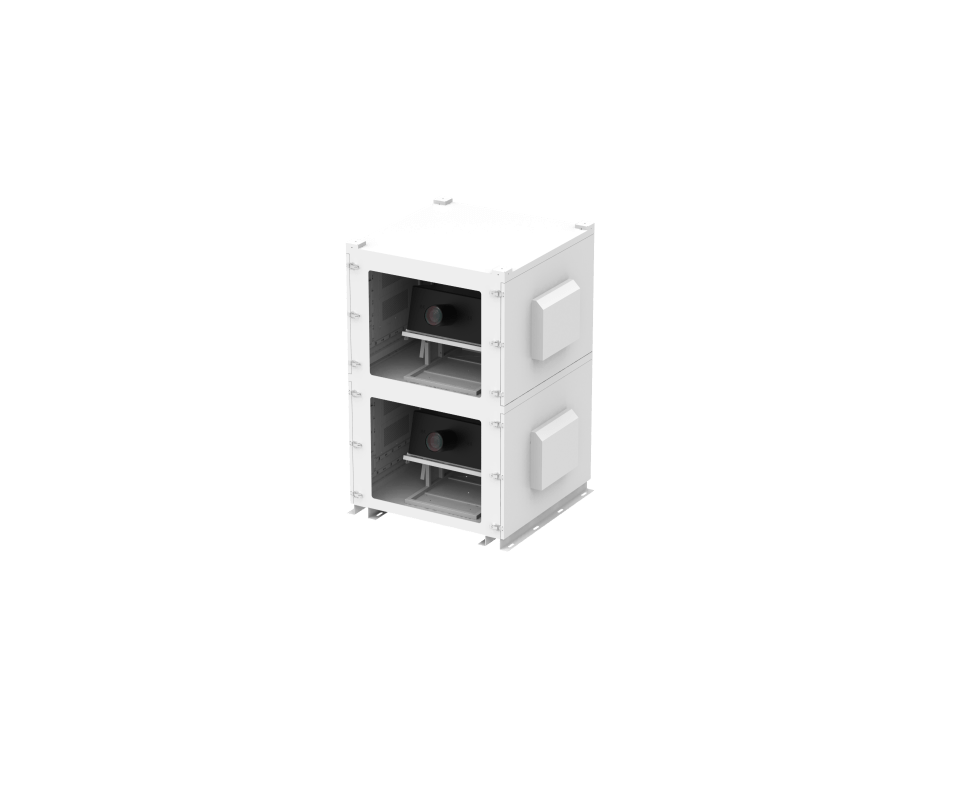

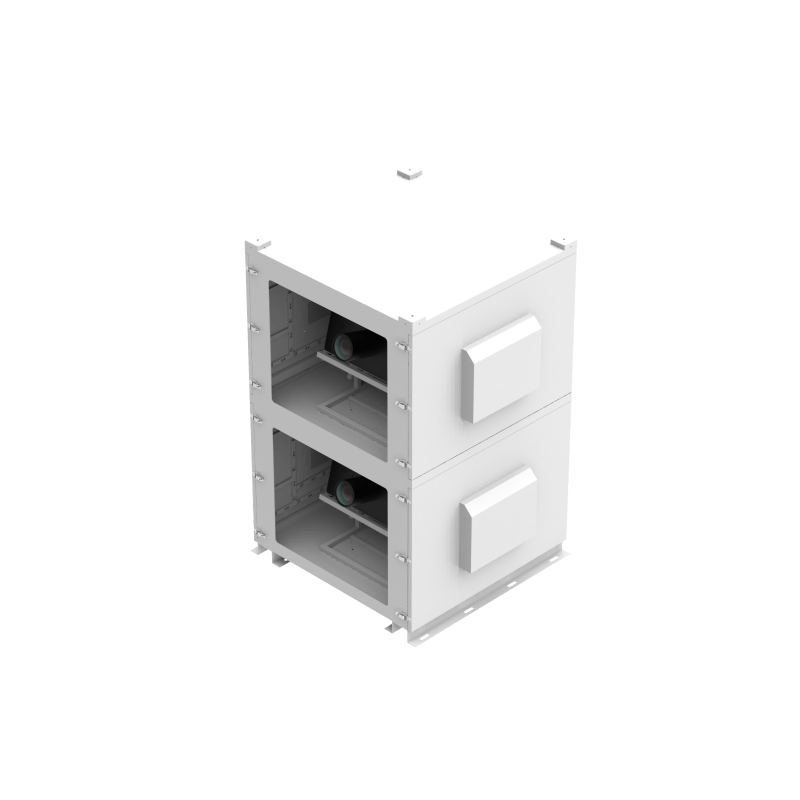

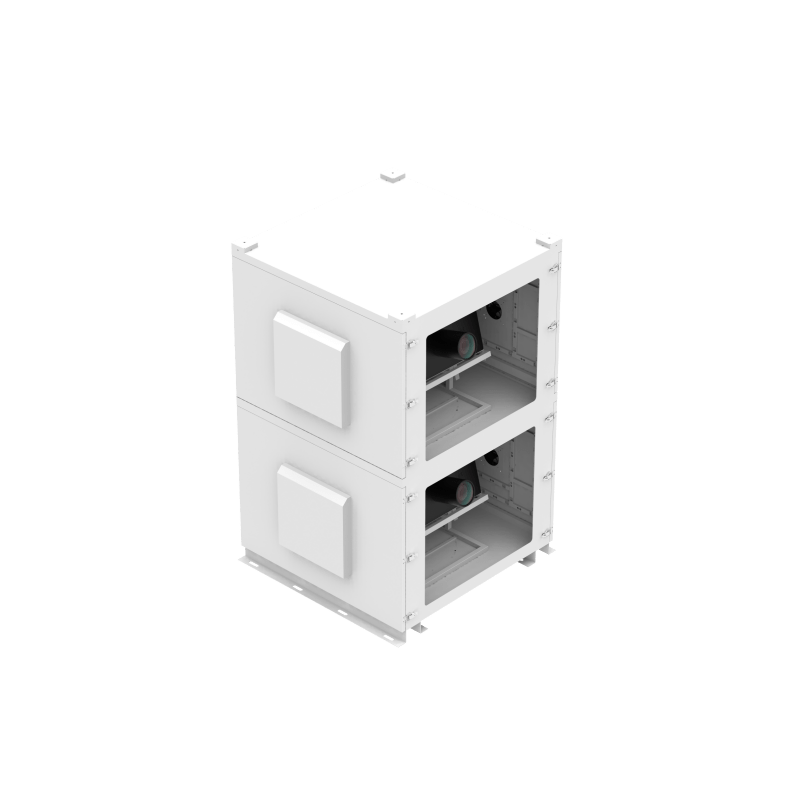

The design method of the outdoor projector thermostatic box can be determined according to the project needs. It can install 2 projectors in one shell, or 4 or 5 projectors in one shell.Most of the house projections use large projectors, with 20,000-50,000 lumens projectors. The designed projector thermostat box can be installed horizontally and vertically, and can also realize horizontal and vertical angle adjustment, making it ideal for taller buildings. Houses and buildings provide projection conditions.
Product Parameters
| Material | Galvanized Steel | IP level | IP65 |
| Type | Control Box | Brand Name | thisshirui |
| Place of Origin | Guangdong, China | Product Name | outdoor projector enclosure |
| Material | Galvanized Steel | Surface treatment | Spray paint |
| Function | Air cooling system thermostat | Application | Outdoor Indoor Electronic Equipment |
| IP Rating | IP65 Waterproof Box | Feature | Safety Durable |
| Service | OEM ODM Customised | Color | Accept Customized |
| Drawing Format | DWG/PDF | ||

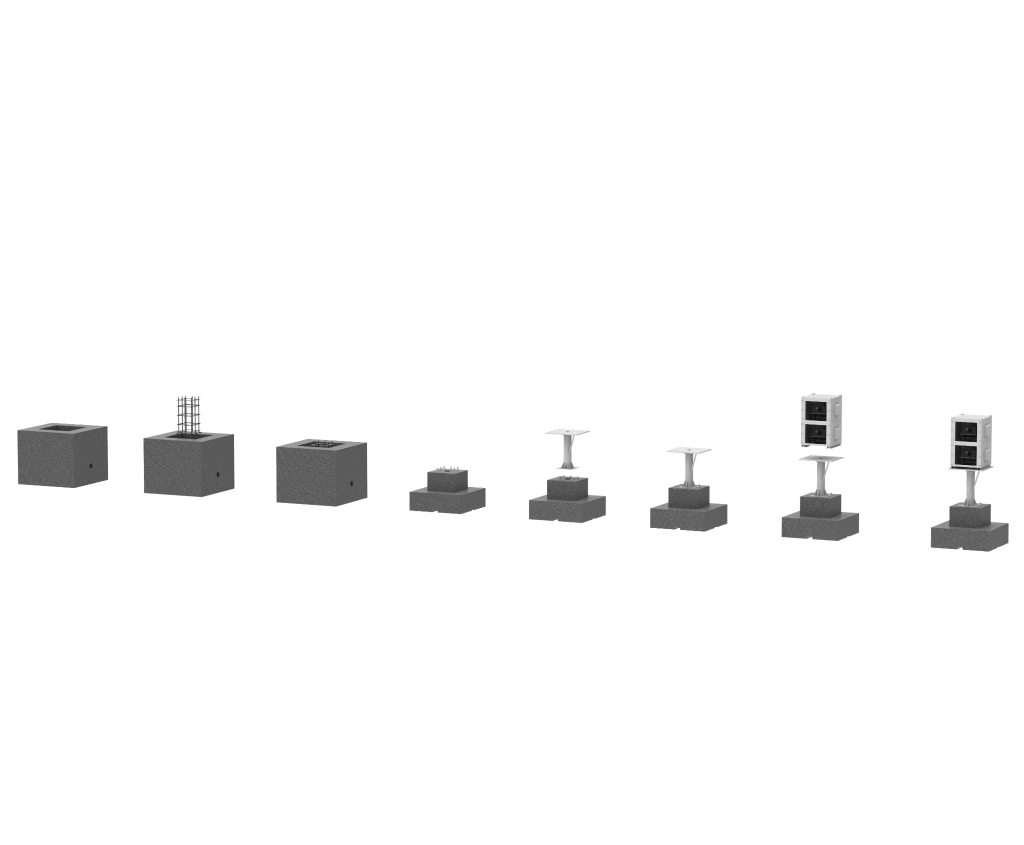

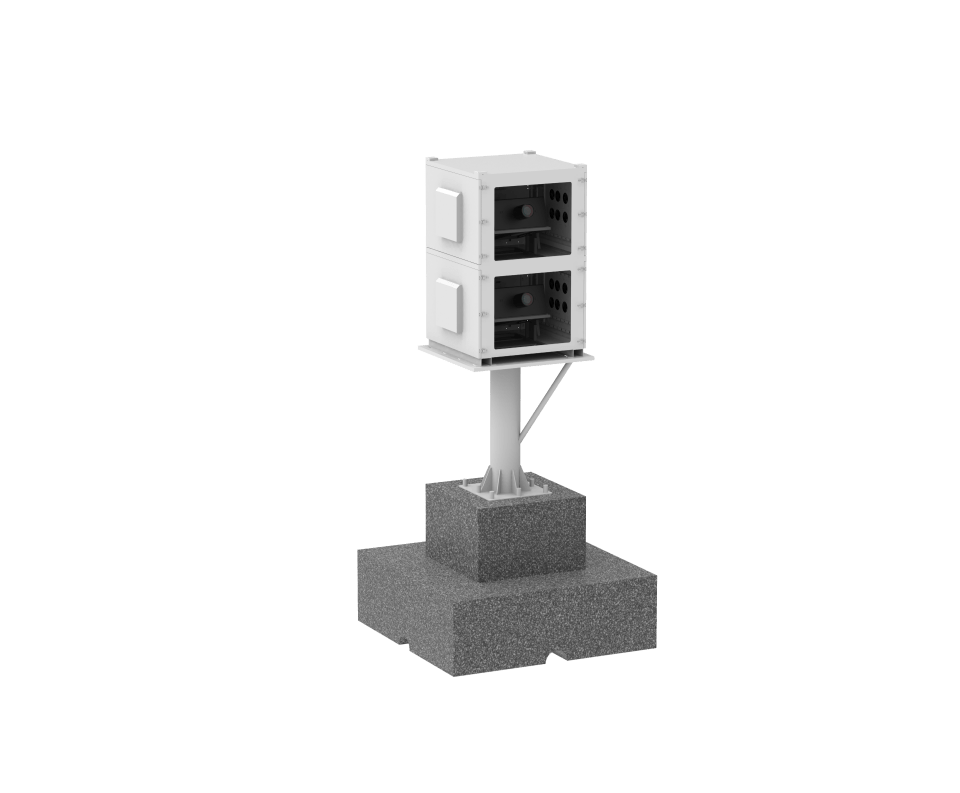

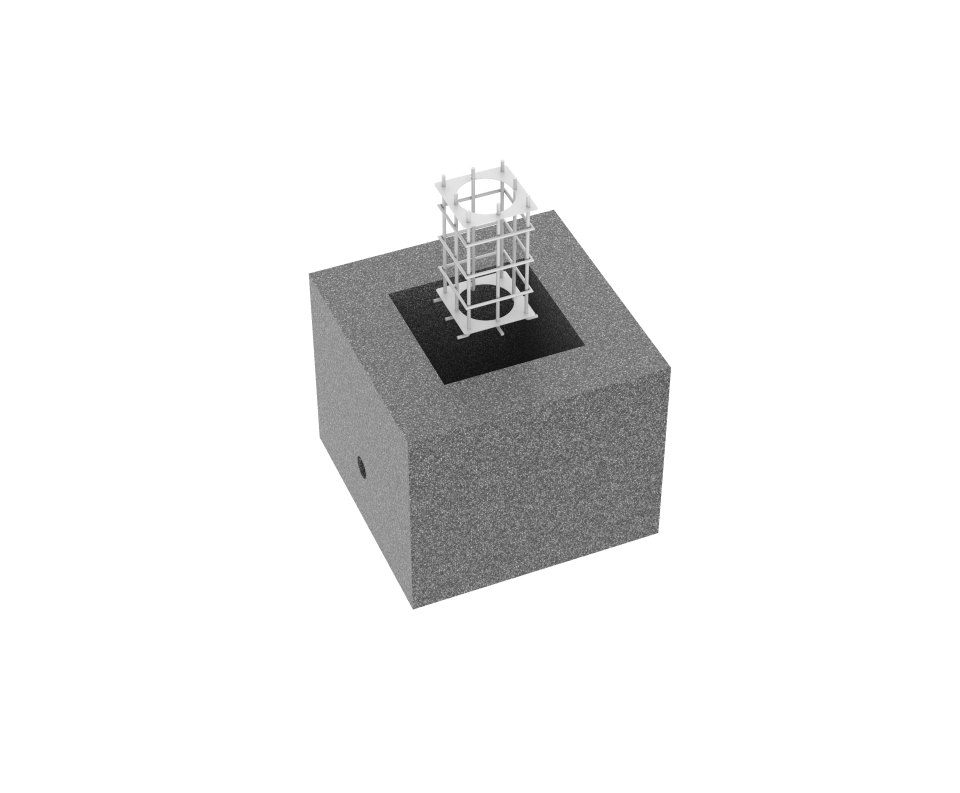

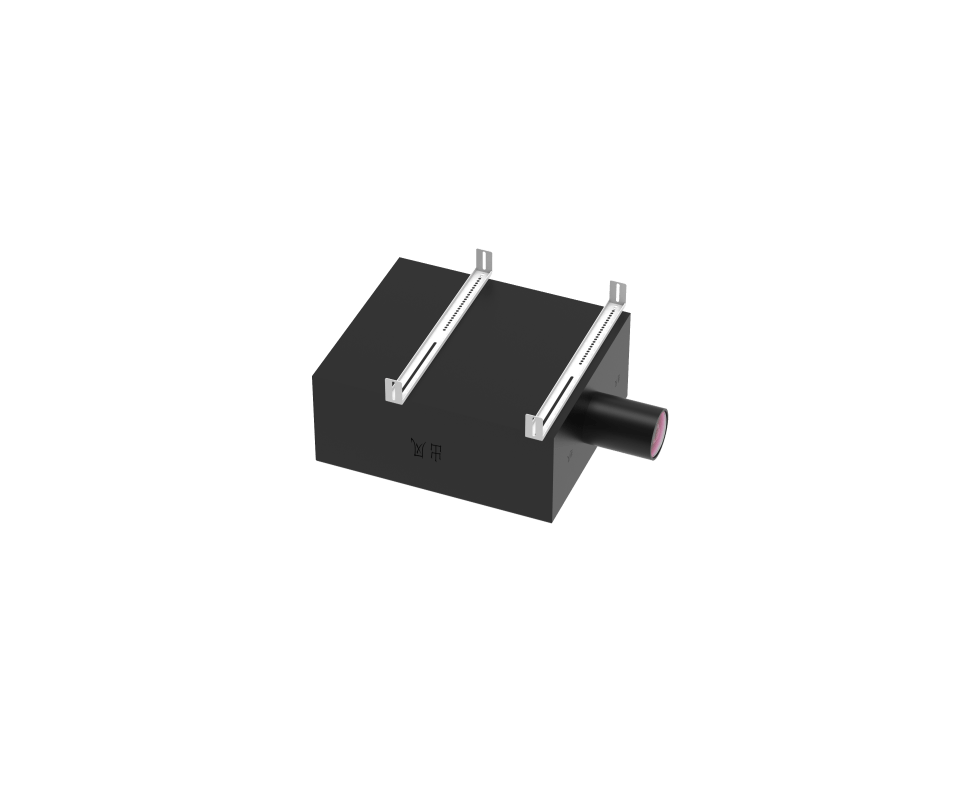

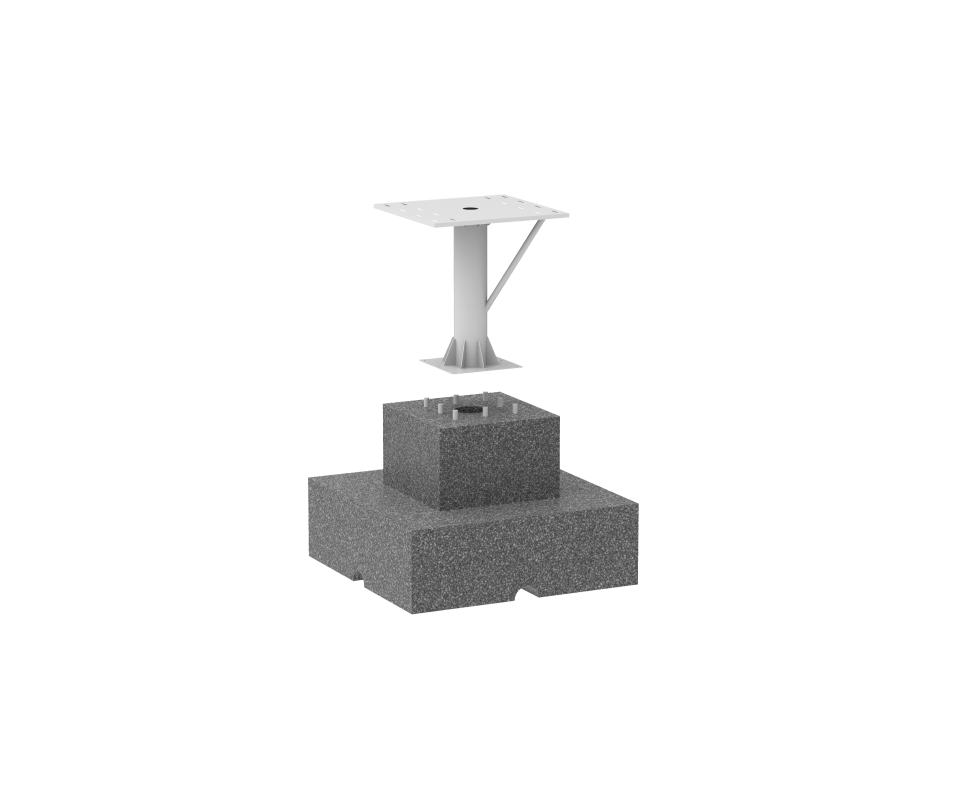

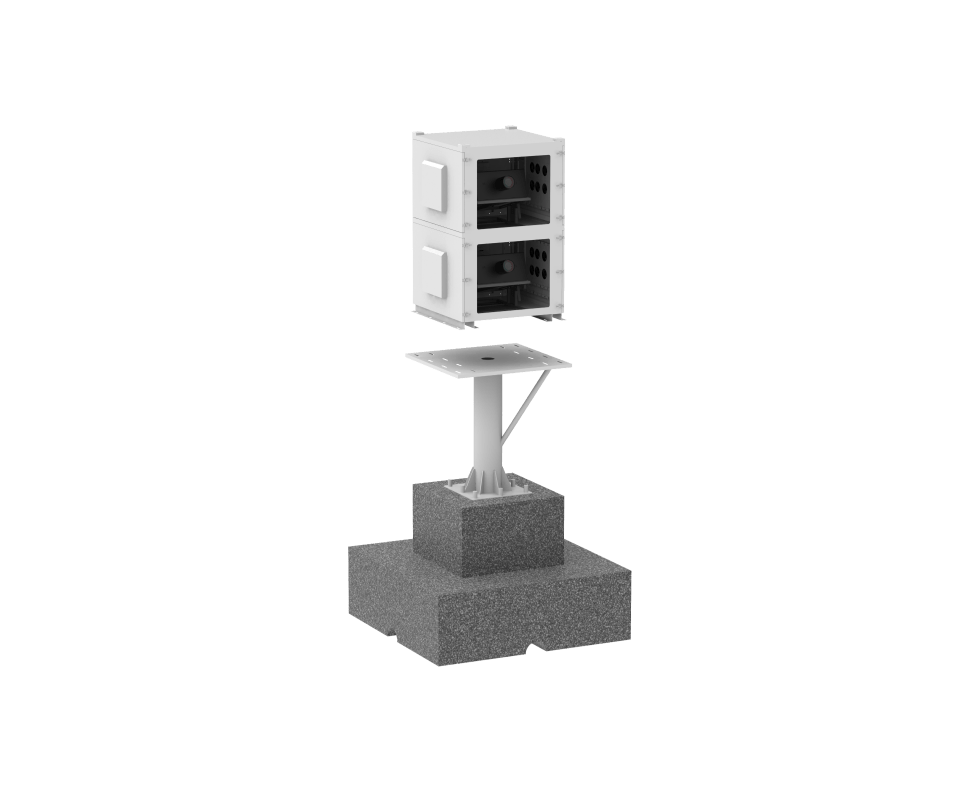

Installation Steps
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

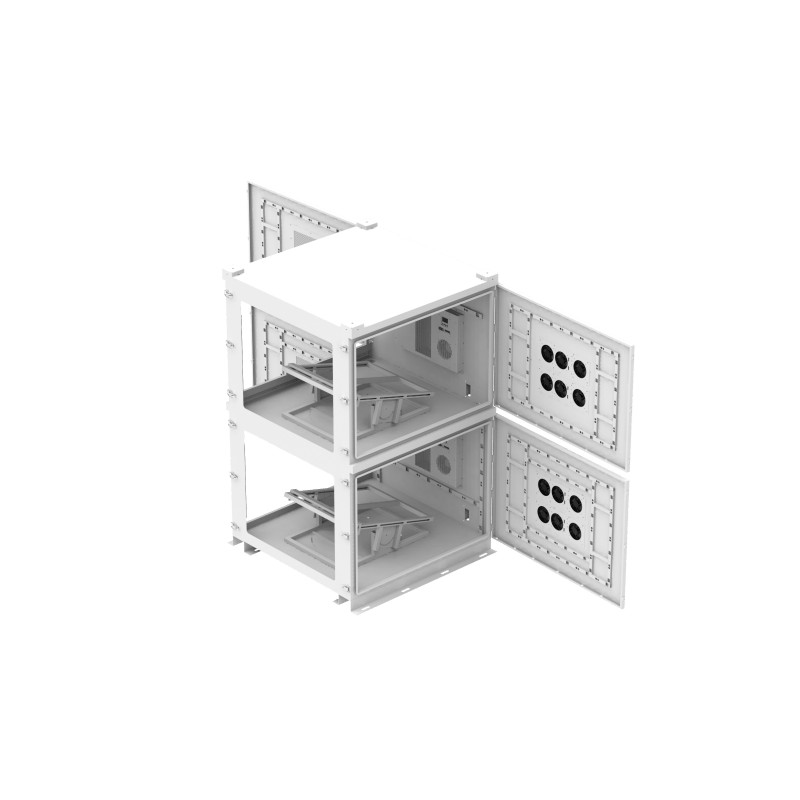

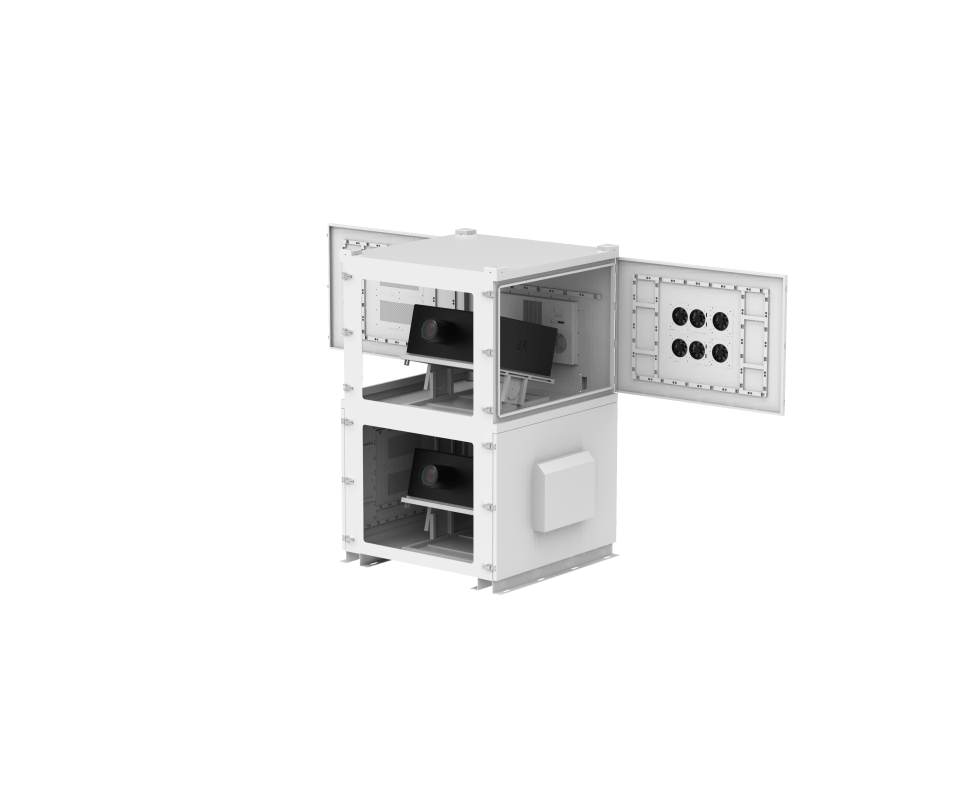

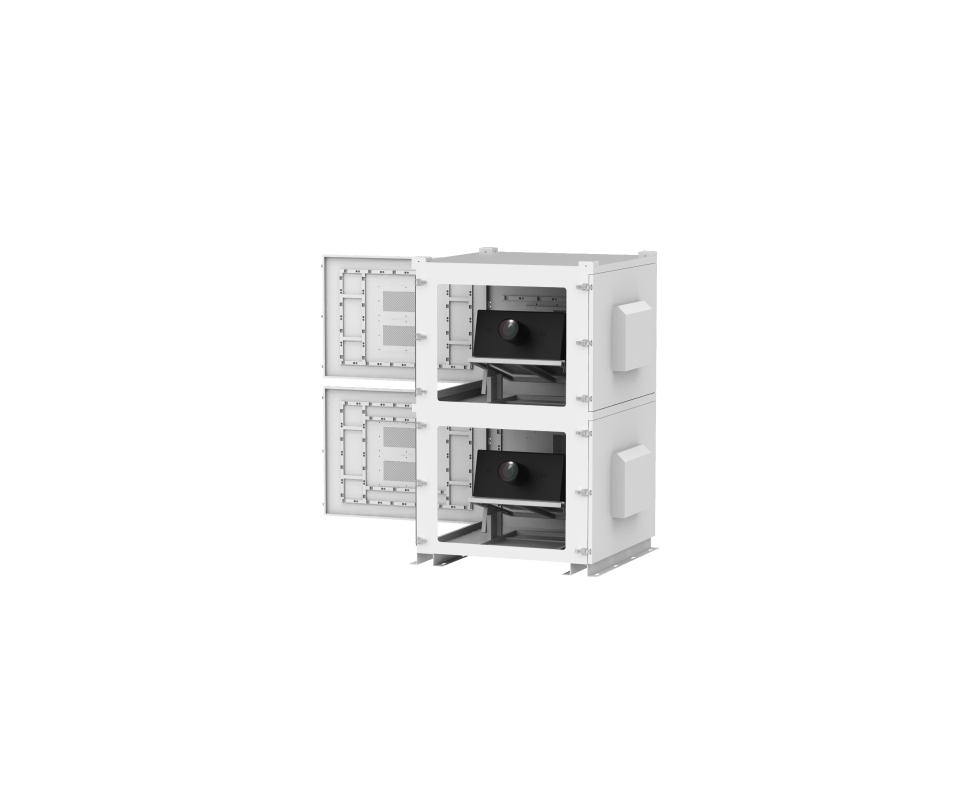

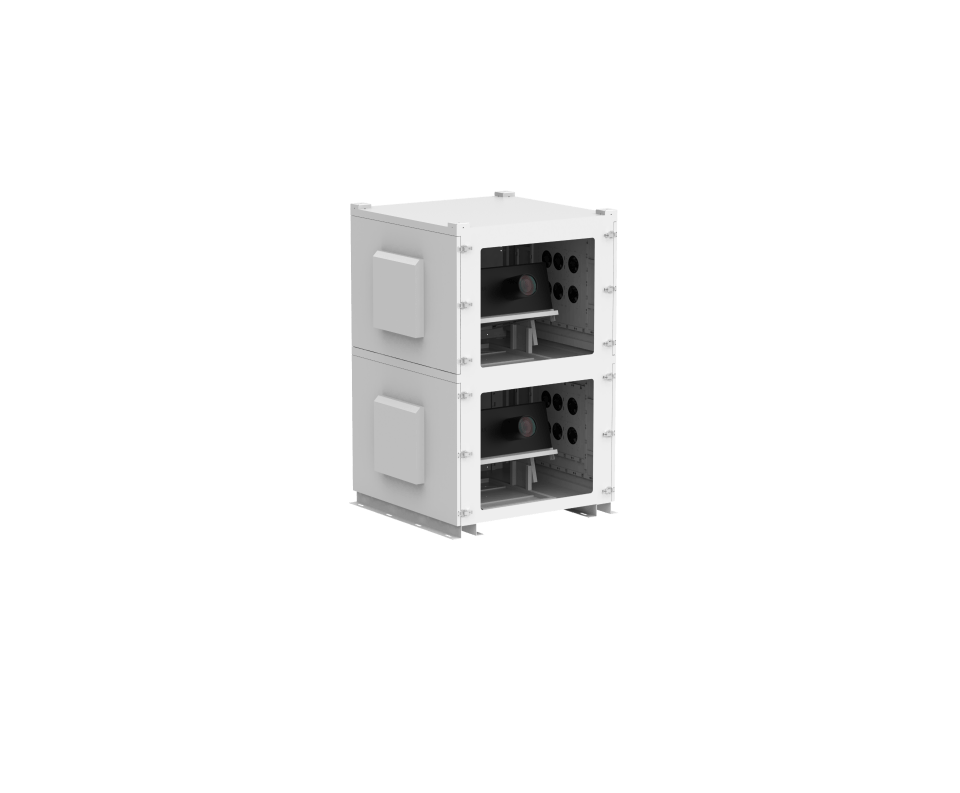

Internal structure of the waterproof box

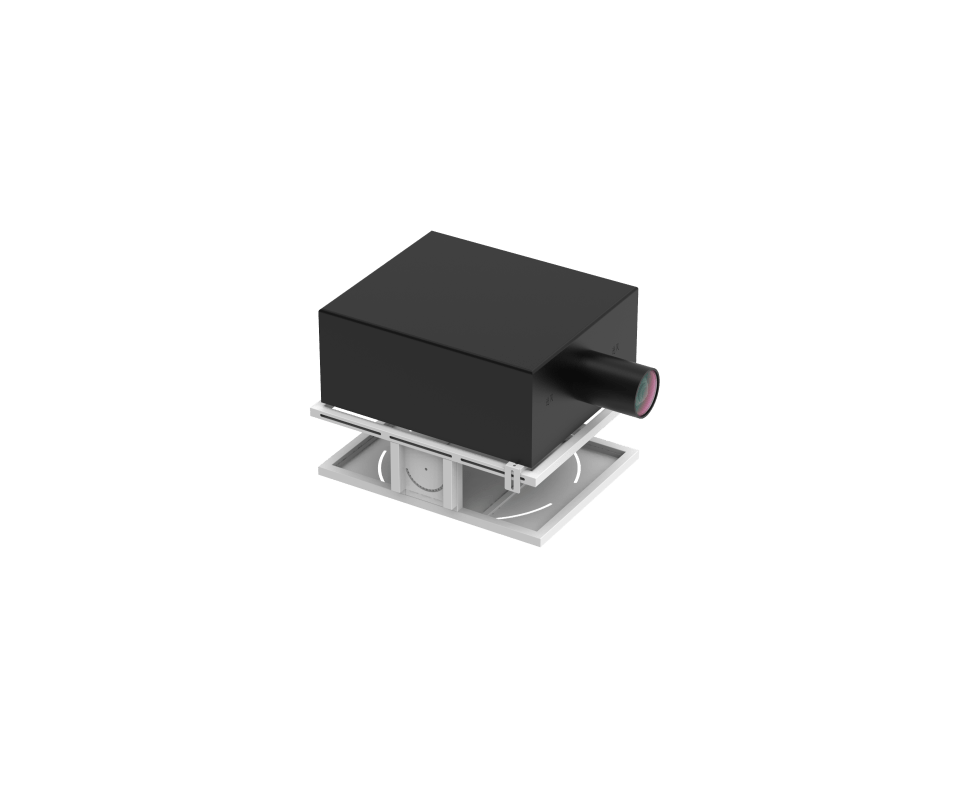

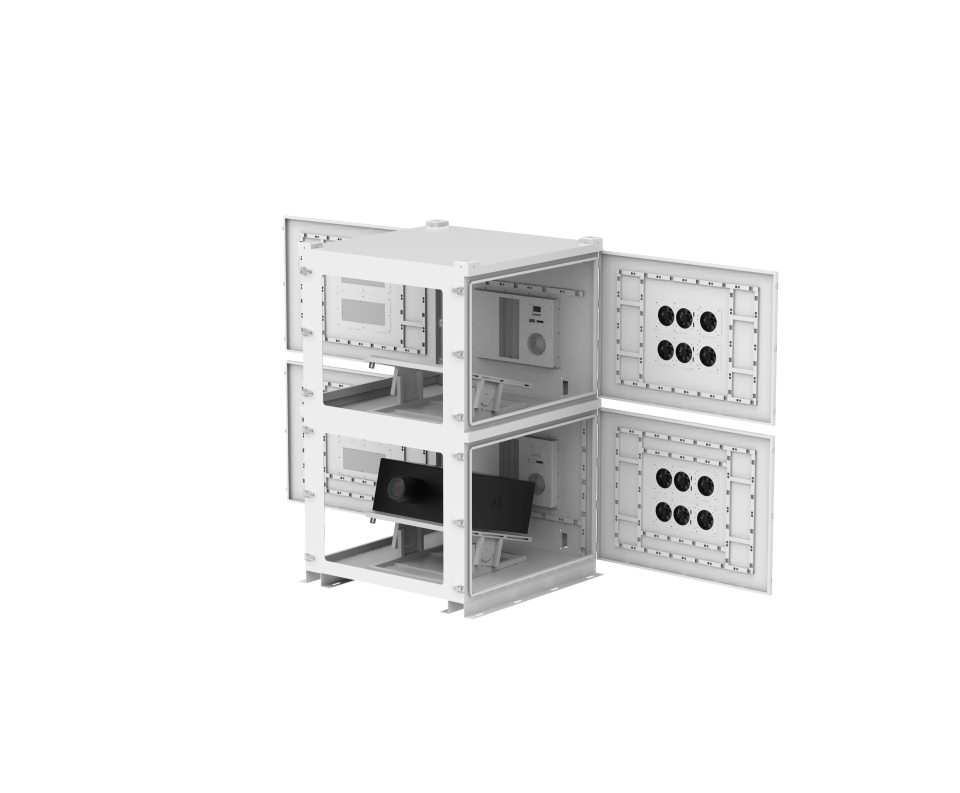

The waterproof box structure is divided into six main parts: the outer layer of the sheet metal body, the intelligent main control box, the maintenance waterproof door, the projector adjustment base, high-transparency optical glass, and stainless steel installation hanging rings for waterproof box adjustment. The placement method of the projector, the projection method, and the installation method of the waterproof box determine the overall structural design of the waterproof box. In addition to ensuring a stable working environment for the projector, the design of the waterproof box also takes into account the projection angle of the projector and its safety in public places.
Practical features of waterproof boxes
1. The waterproof box has functions such as waterproofing, dustproofing, corrosion resistance, anti-frosting, heating, and dehumidification.

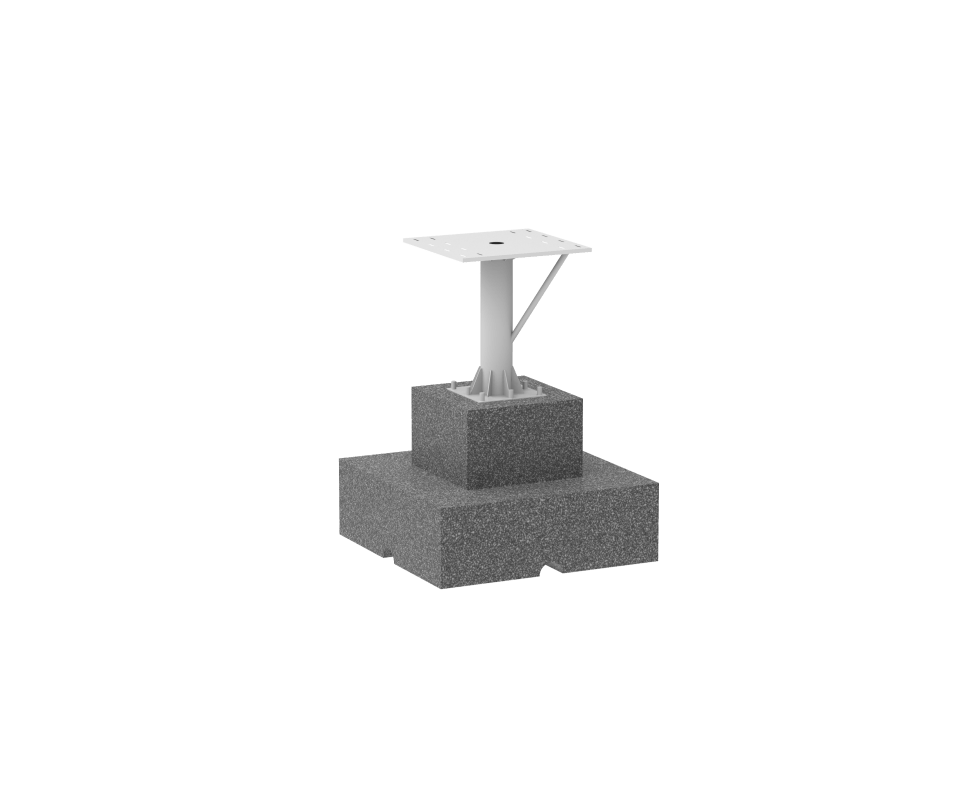

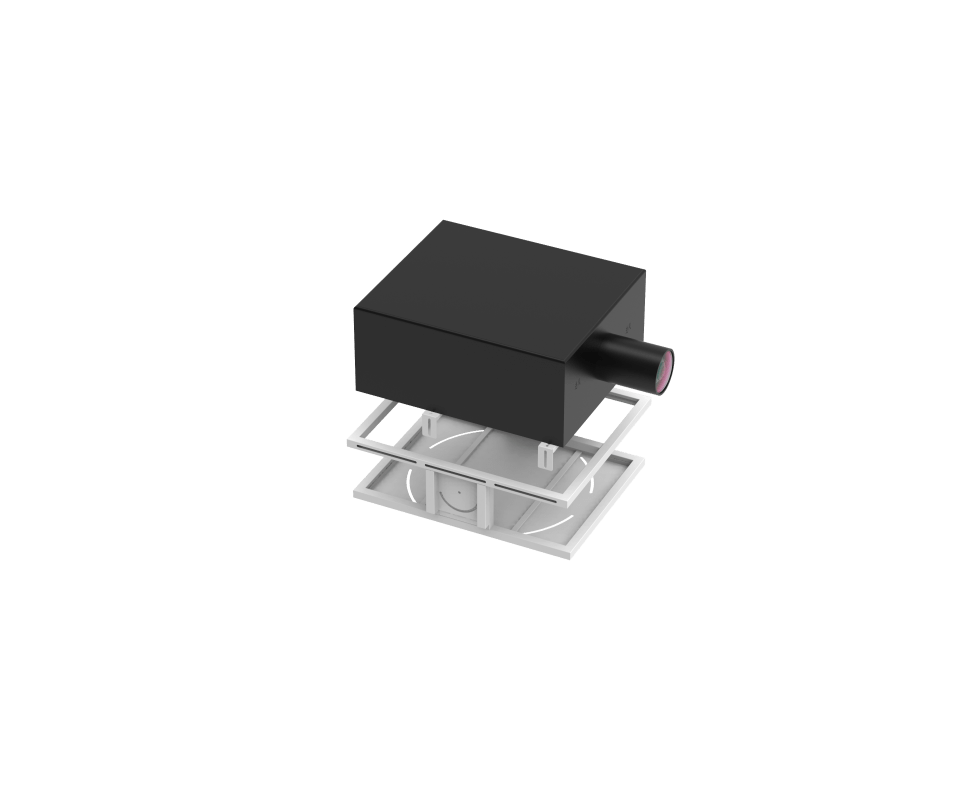

2. The projector platform allows for linear angle adjustment (up to 10 degrees, with larger adjustment angles available upon customization).

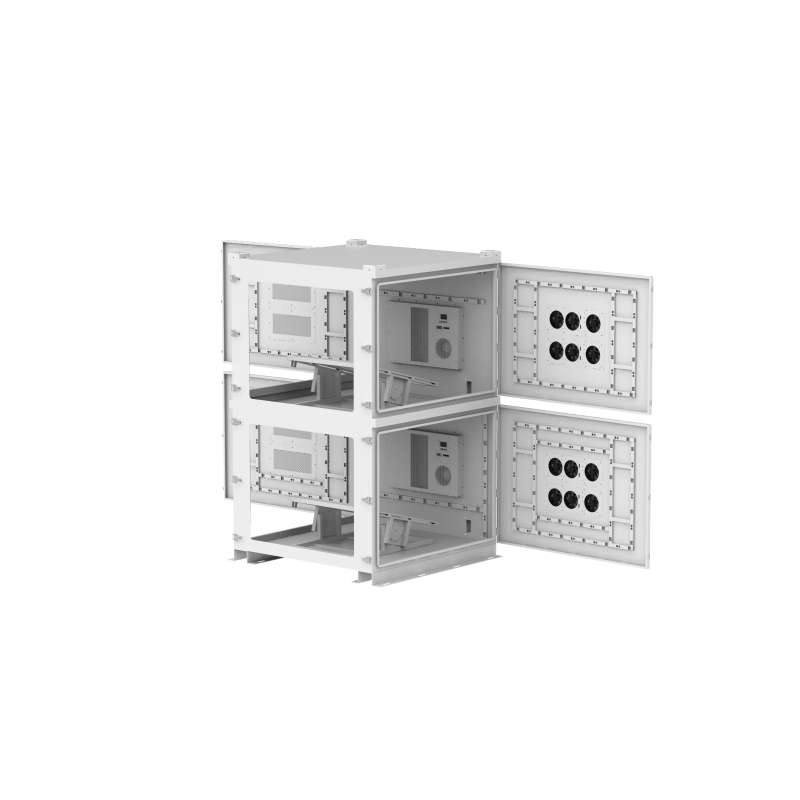

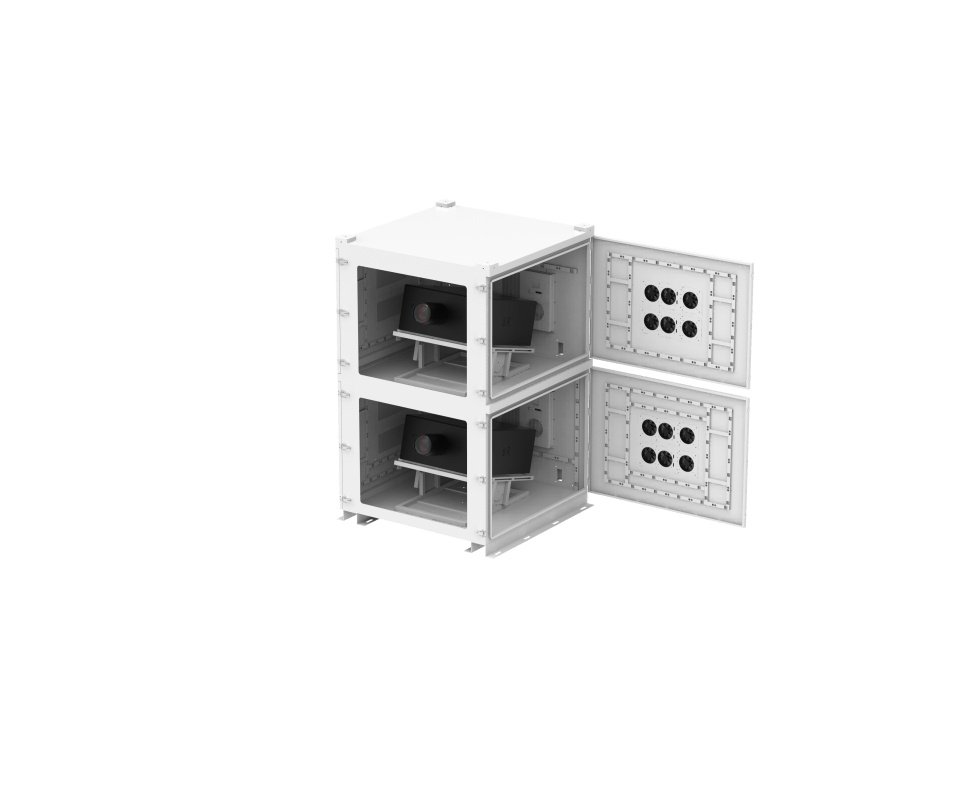

3. The multi-door design facilitates easy installation and maintenance of the projector.
4. It is equipped with an internal hot air blower to ensure that there is no frost or fog on the projection surface.

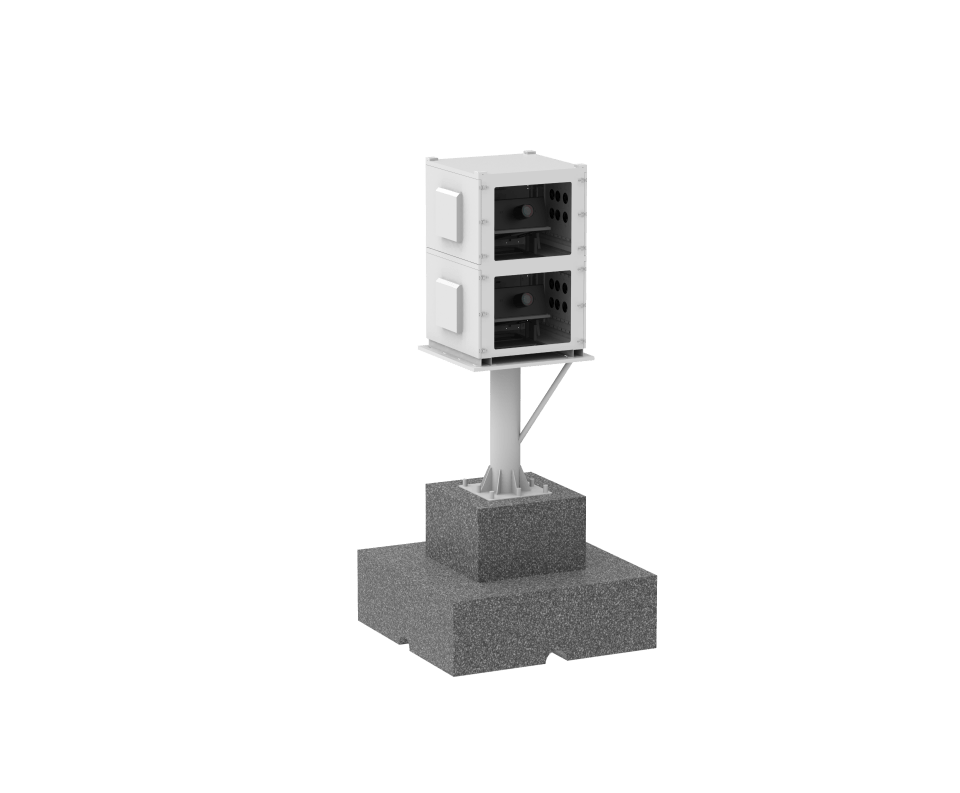

5. The tripod and door use reinforced structures designed for strong wind solidification, and additional hanging protection ensures the safety of the waterproof box before and after installation.
6. Inside, it includes a 32A AC contactor, a 16A or 10A multifunctional socket.
7. The projection port uses optical ultra-white glass with a 95% light transmission rate.
