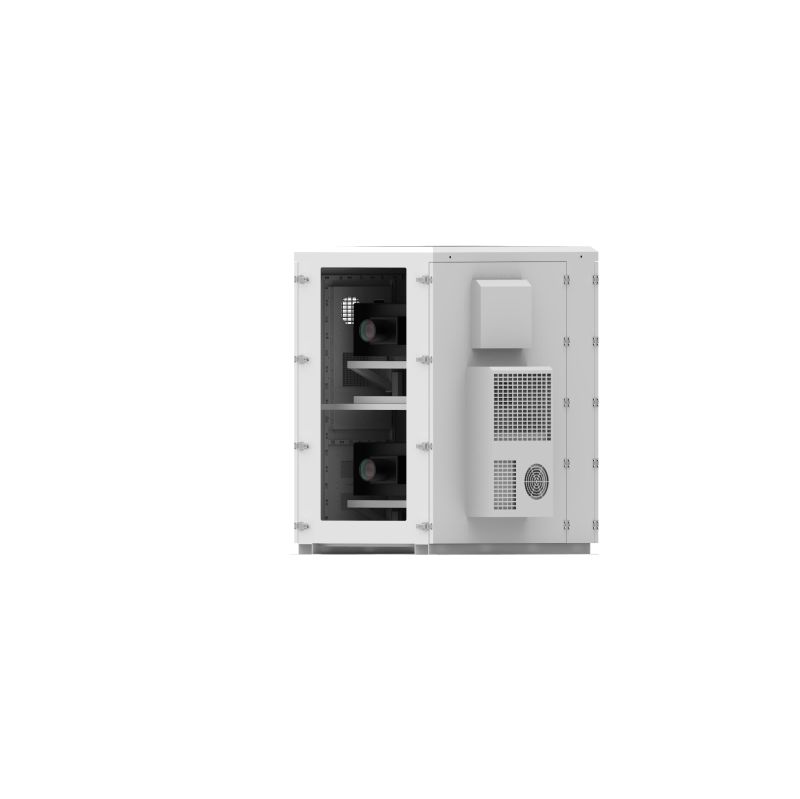

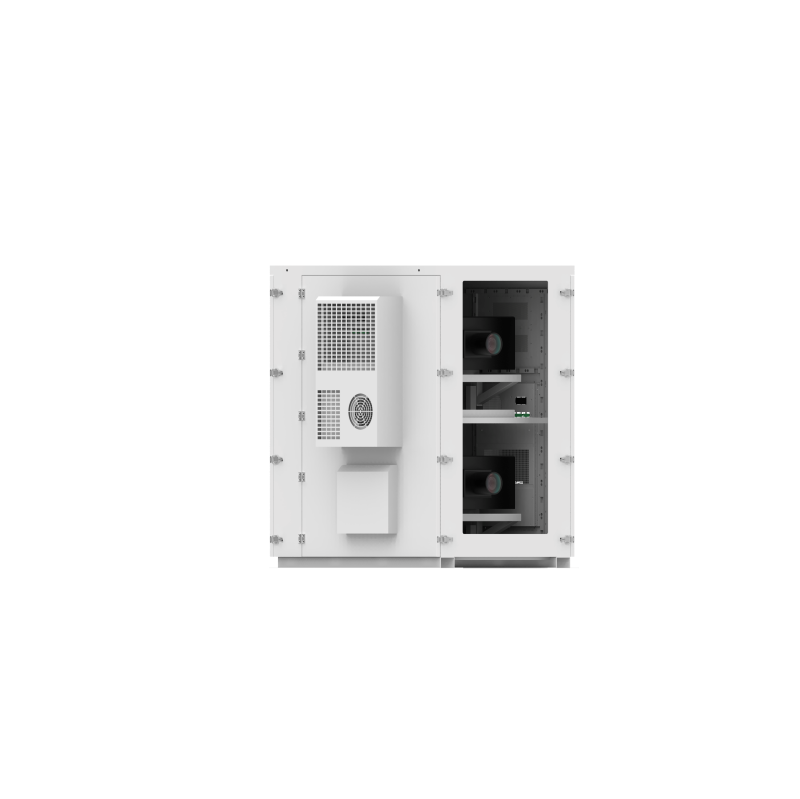

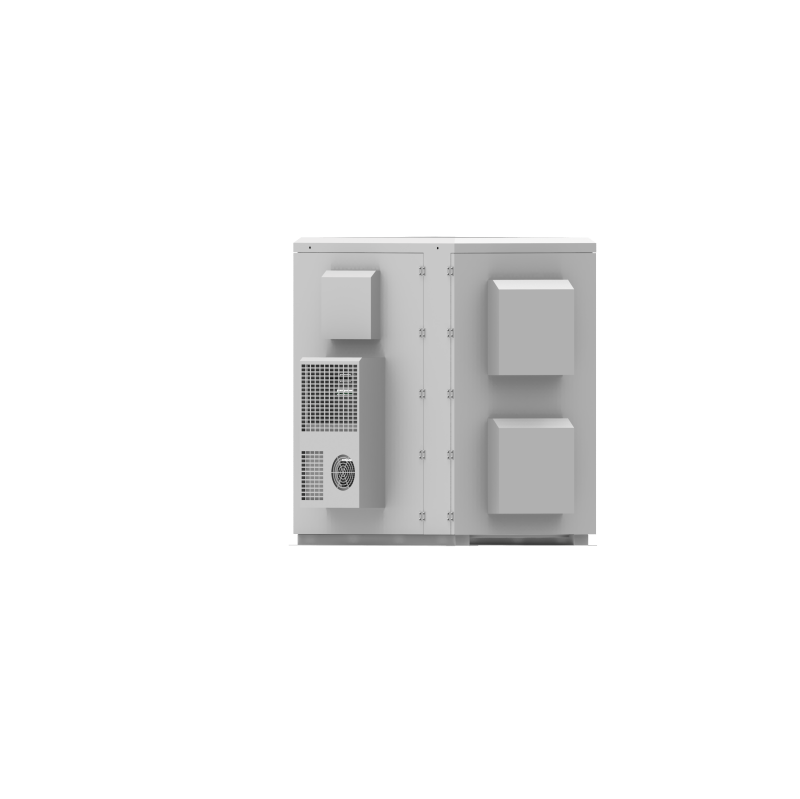

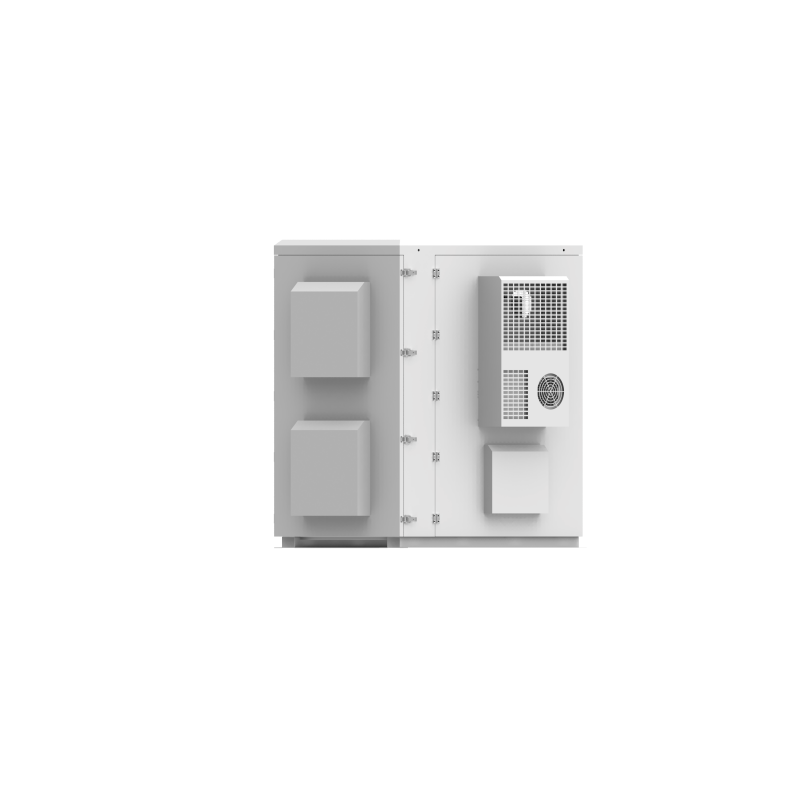

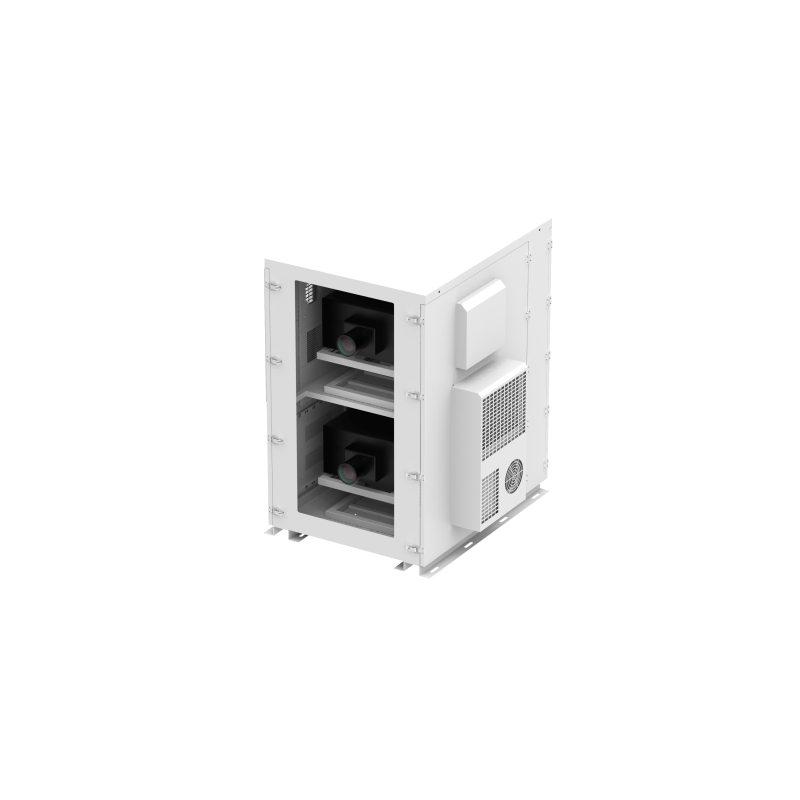

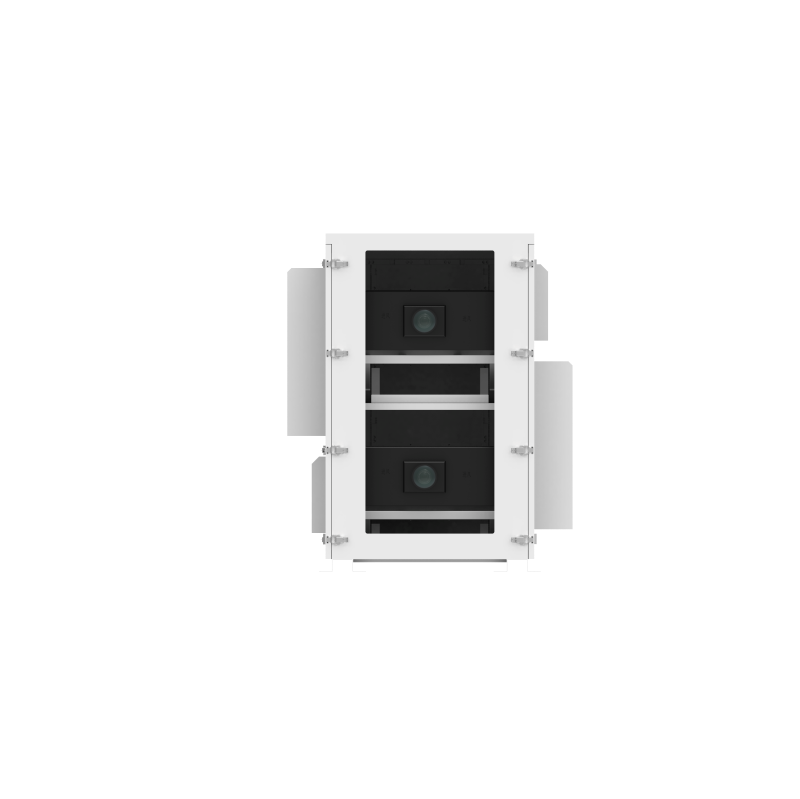

Wall-mounted Installation of Outdoor Projector Shell Wind Cooling Waterproof Box

Product Introduction
1.The power supply of the smart test and control board is stabilized by the Meanwell switching power supply.
2.Built-in temperature probe and temperature and humidity sensor.
3.3-way adjustable fans, each fan with a peak speed of up to 5000 RPM and an airflow of 5 m³/minute.
4.When the temperature is 2 degrees Celsius higher than the preset temperature (30°C), the fans will start, and the higher the temperature, the faster the fan speed and the greater the airflow.
5.F6 medium efficiency air filter, with high air permeability, dust and mosquito proof functions.
6.Heating module, when the temperature is ≤5°C and the humidity is ≥85%, the heating will start, and when the temperature reaches 10°C and the humidity is ≤75%, the heating will stop.
7.Reserved 16A or 10A multi-function sockets.
8.The power supply for the projector is equipped with an AC contactor. In case of a fault, the power will be immediately cut off to protect the projector.
9.When the internal temperature is 2°C or more above the preset value (30°C), the air conditioning cooling will start, and when it is 2°C or less below the preset value, the cooling will stop.
10.When the internal temperature is 2°C or more above the preset value (35°C), the fan cooling system will start, and when it is 2°C or less below the preset value, the fans will stop.
11.Passed IP65 waterproof certification.

Practical Features
1.The temperature-controlled cabinet has functions of waterproofing, dust-proof, anti-corrosion, heating, and dehumidification.
2.The projector platform can realize linear angle adjustment (≤10°, and larger adjustment angles can also be customized).
3.Multi-door structure design, convenient for projector installation and maintenance.
4.There is a blowing heating device inside to ensure that the projection port surface is free of frost and fog.
5.The legs and door body are designed with a strengthened structure reinforced by strong wind curing, and lifting rings are added to ensure the safety of the temperature-controlled cabinet before and after installation.
6.The projection port uses optical ultra-white glass with a 95% light transmittance.

Product Parameters

Installation Steps

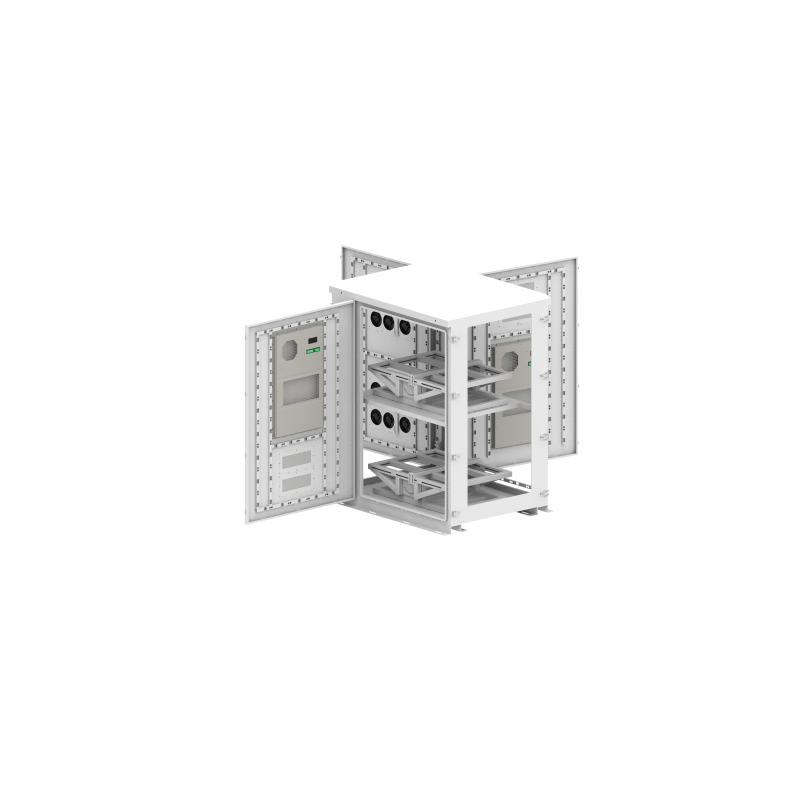

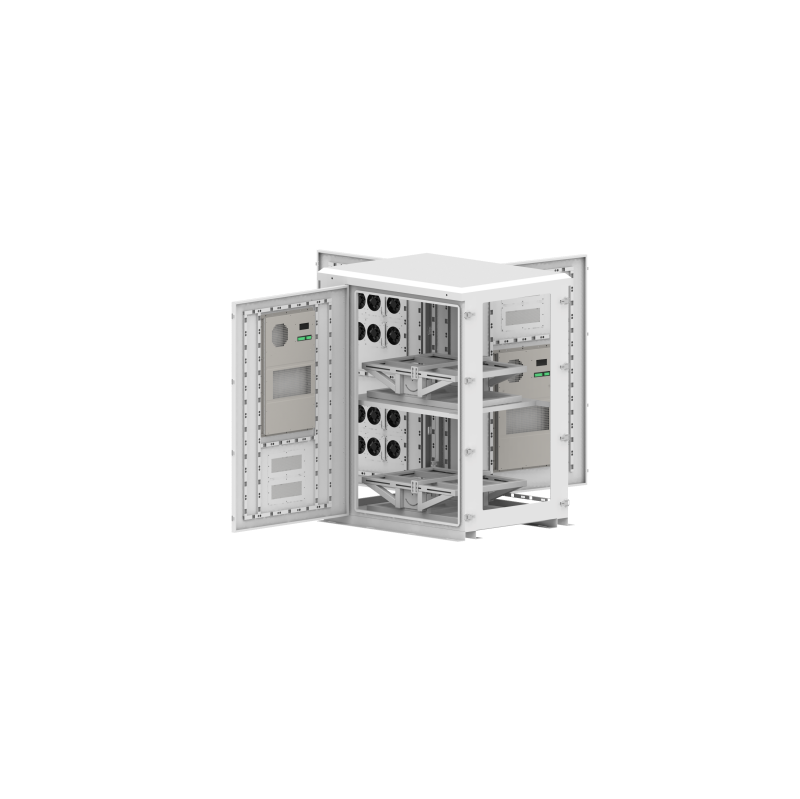

Internal structure of the waterproof box
The waterproof box structure is divided into six main parts: the outer layer of the sheet metal body, the intelligent main control box, the maintenance waterproof door, the projector adjustment base, high-transparency optical glass, and stainless steel installation hanging rings for waterproof box adjustment. The placement method of the projector, the projection method, and the installation method of the waterproof box determine the overall structural design of the waterproof box. In addition to ensuring a stable working environment for the projector, the design of the waterproof box also takes into account the projection angle of the projector and its safety in public places.

Practical features of waterproof boxes
1. The waterproof box has functions such as waterproofing, dustproofing, corrosion resistance, anti-frosting, heating, and dehumidification.
2. The projector platform allows for linear angle adjustment (up to 10 degrees, with larger adjustment angles available upon customization).
3. The multi-door design facilitates easy installation and maintenance of the projector.
4. It is equipped with an internal hot air blower to ensure that there is no frost or fog on the projection surface.
5. The tripod and door use reinforced structures designed for strong wind solidification, and additional hanging protection ensures the safety of the waterproof box before and after installation.
6. Inside, it includes a 32A AC contactor, a 16A or 10A multifunctional socket.
7. The projection port uses optical ultra-white glass with a 95% light transmission rate.

Wind-cooling

• Utilize industrial silent fans for cooling, expelling hot air from the waterproof box, while simultaneously drawing in fresh air through intake vents to create a circulation effect. This helps reduce the heat emitted by the projector within the waterproof box, and the heating module removes fog and moisture from the glass.

Air-conditioning

• Fans and air conditioners together form a dual system, used in high lumen machines and also suitable for harsh weather conditions. The air conditioner not only cools but also dehumidifies, while the heating module clears water droplets and fog from the glass.

Waterproof box material

• The material for waterproof boxes is divided into external and internal materials. The external material is typically made from galvanized steel sheets or stainless steel with thicknesses of 1.2-1.5-1.8-4mm, depending on its shape and size. The internal material is usually made from galvanized steel or stainless steel.

Surface treatment

• Surface treatment involves applying a secret putty, mechanical sanding, spraying outdoor powder paint, and baking. It offers waterproofing, anti-corrosion, anti-static, and heat resistance features. The color can be customized based on the specific needs of the customer's project.
