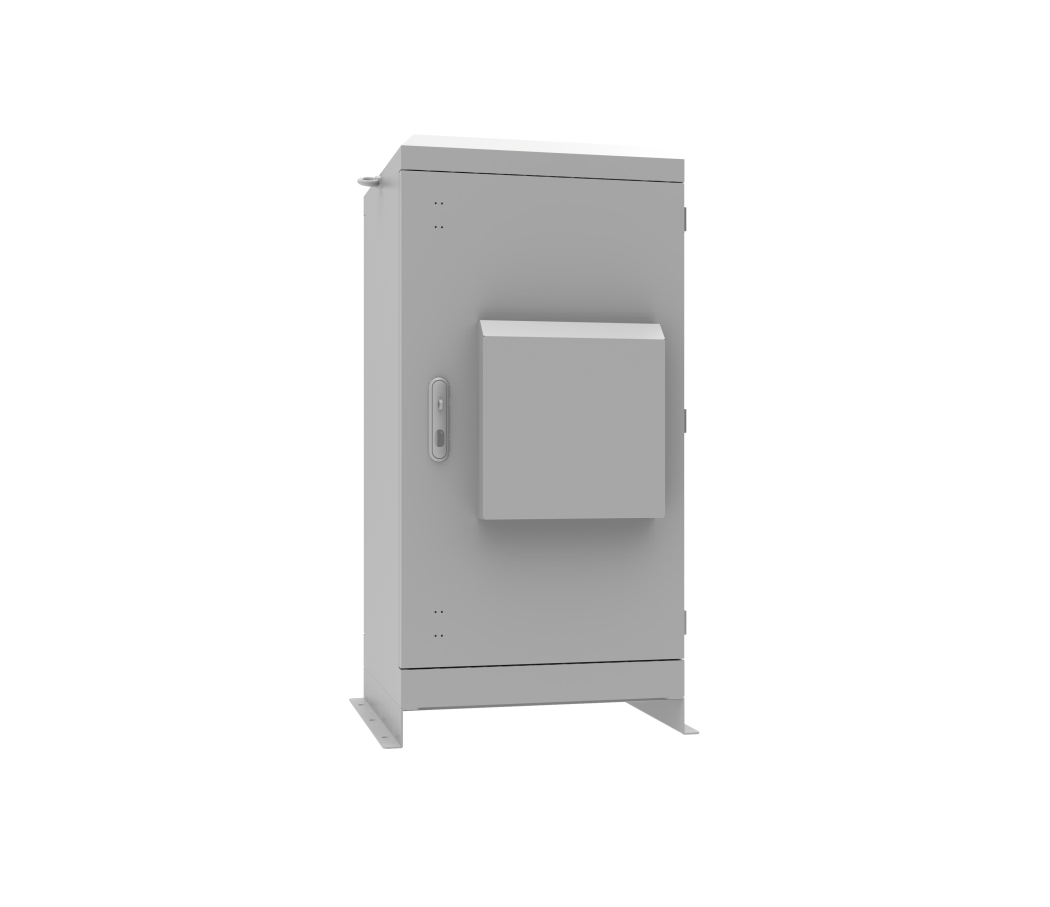

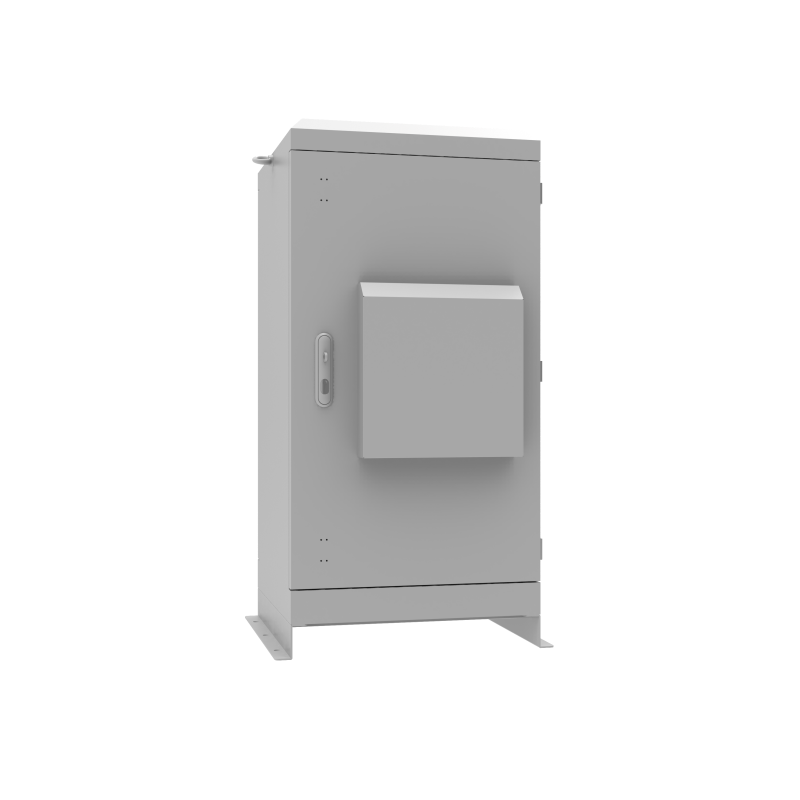

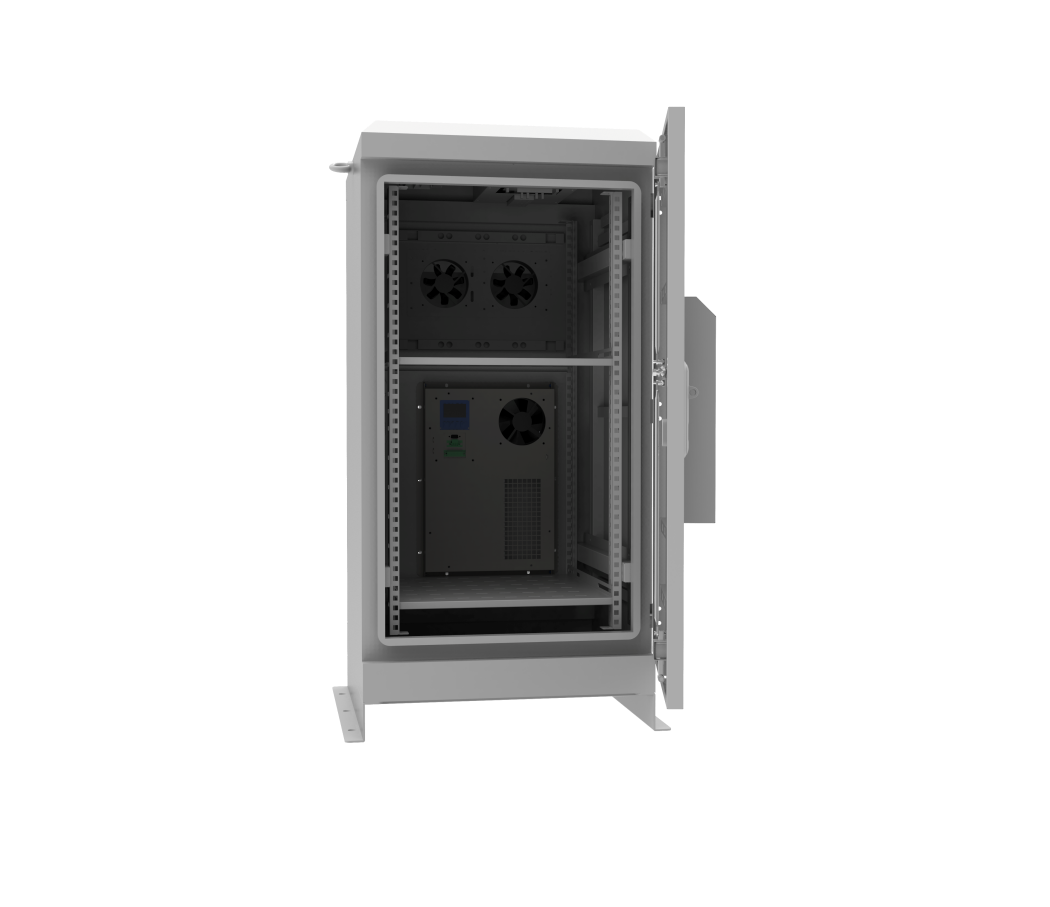

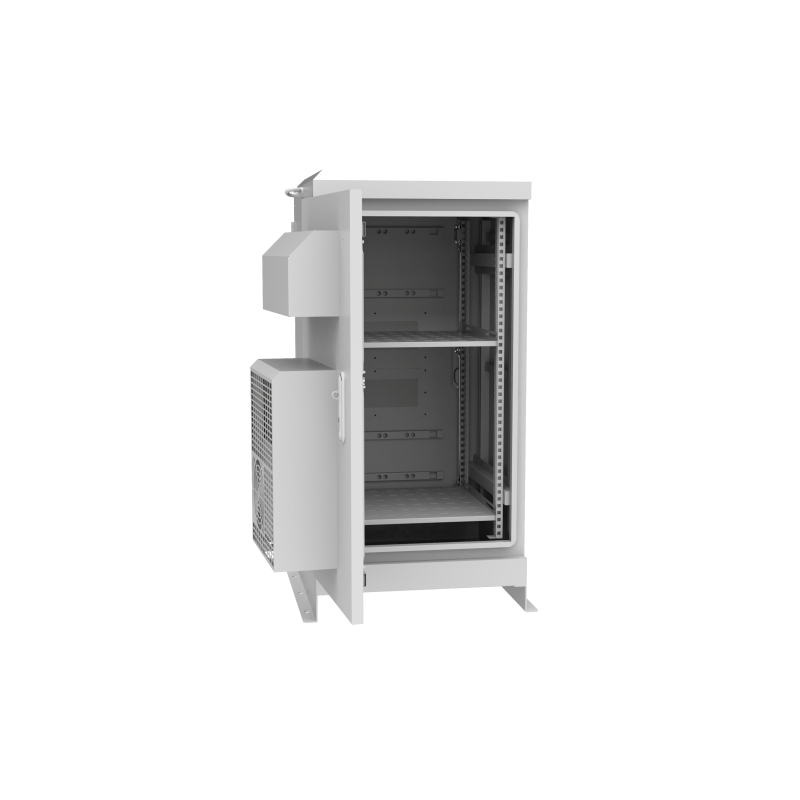

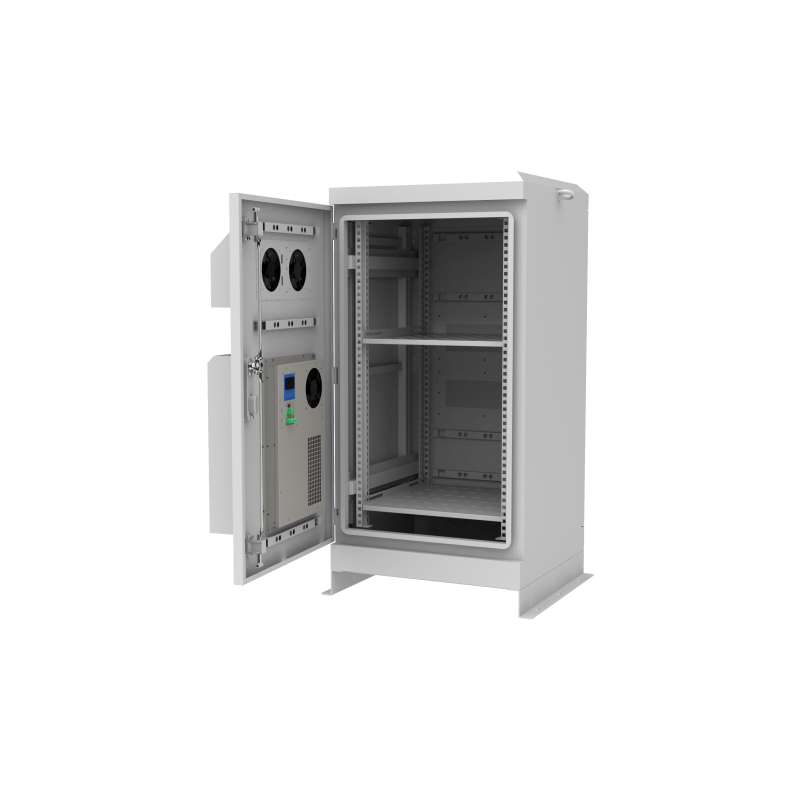

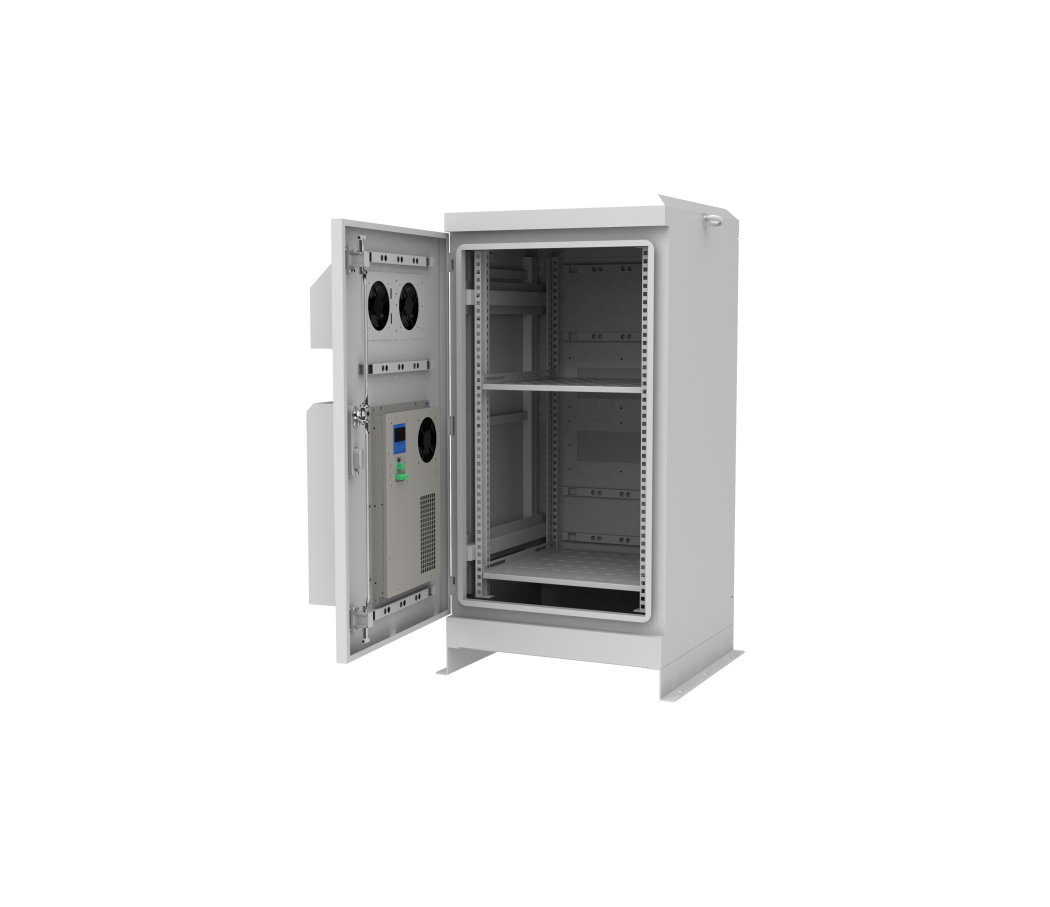

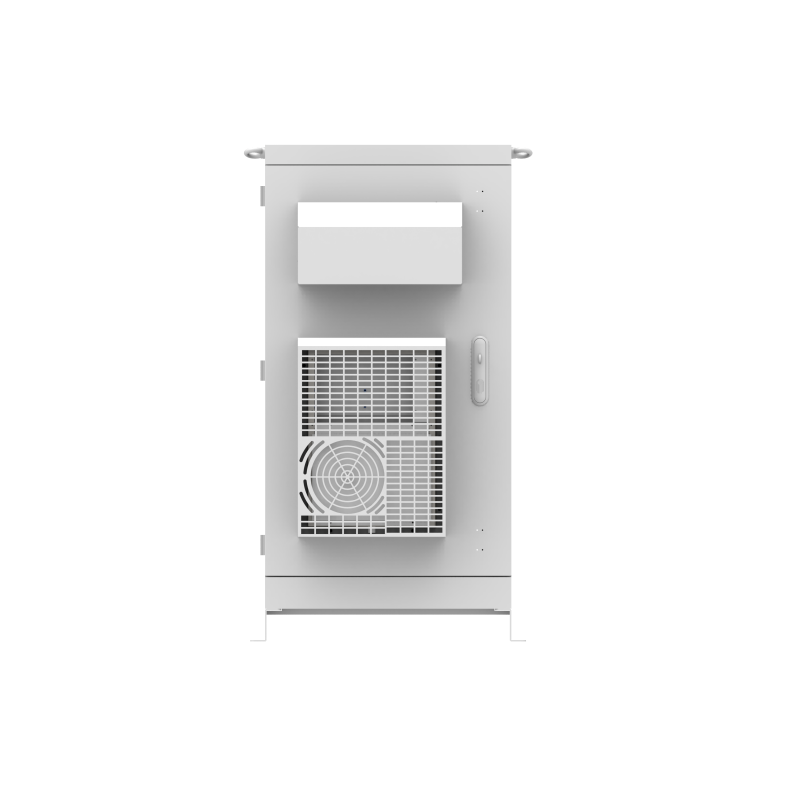

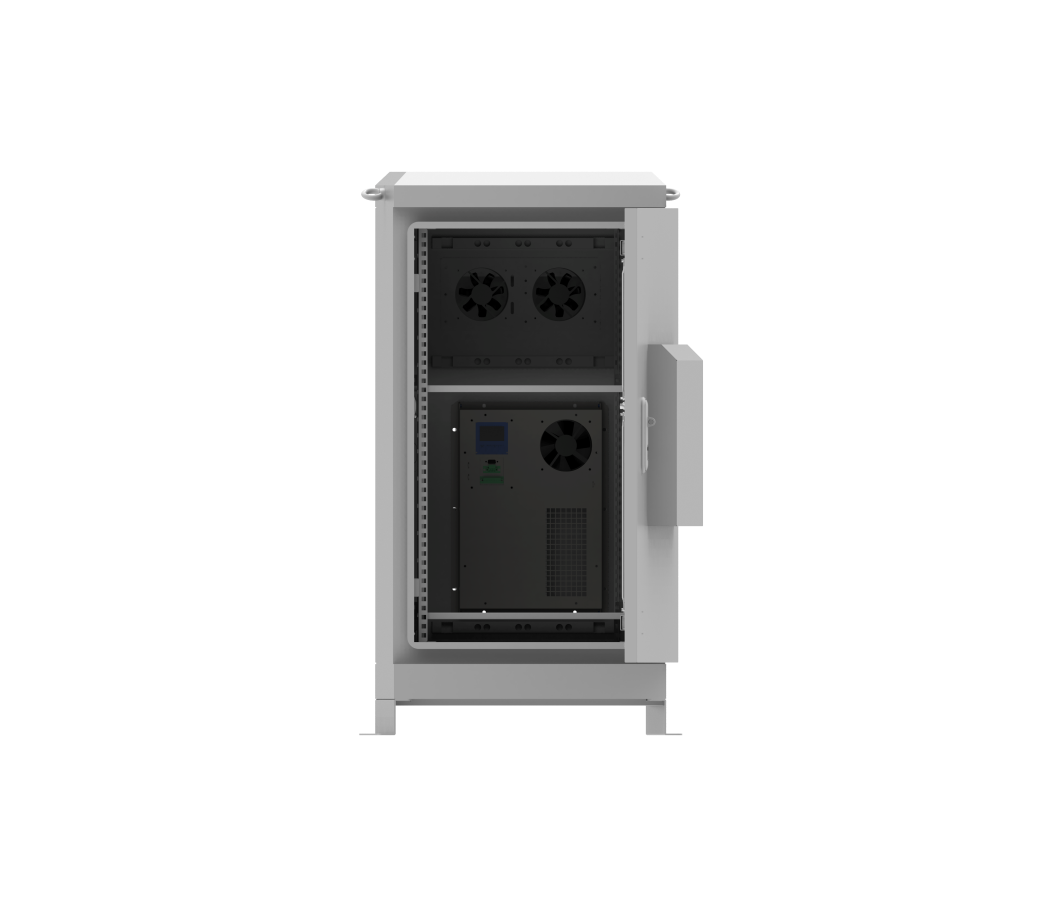

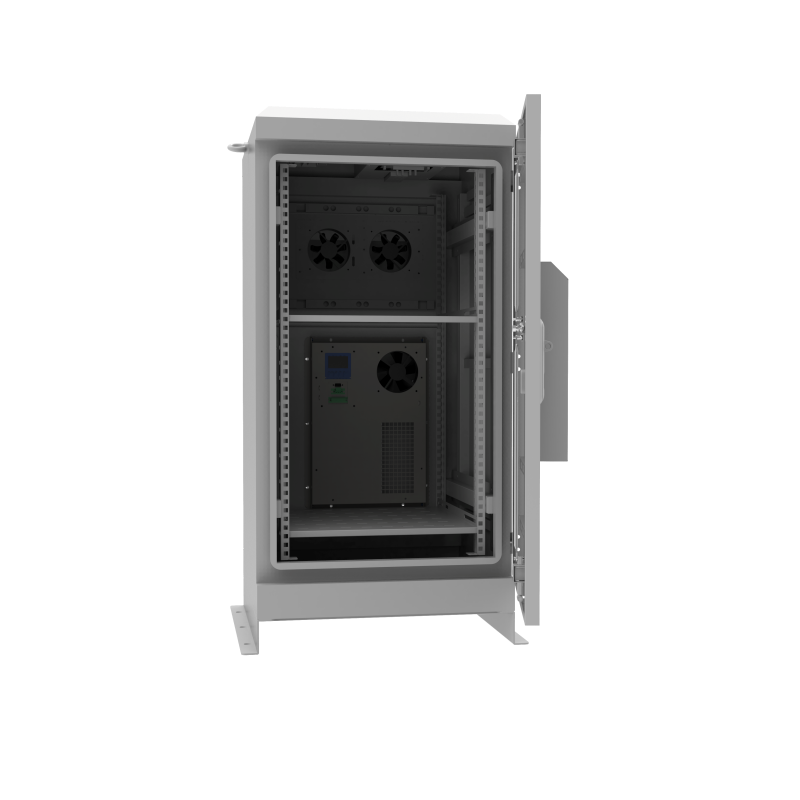

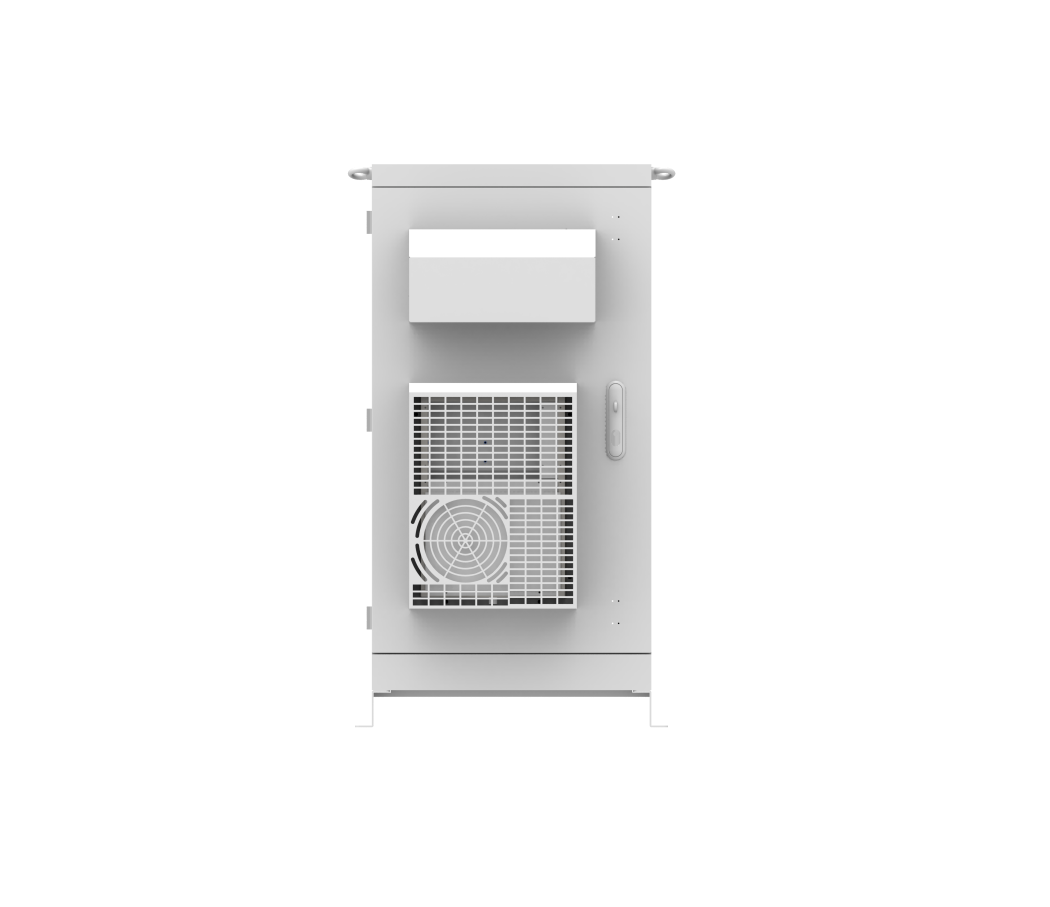

OEM IP65 Communication Server Cabinet Electrical Equipment Enclosure Waterproof Network Cabinet Outdoor

Product Introduction

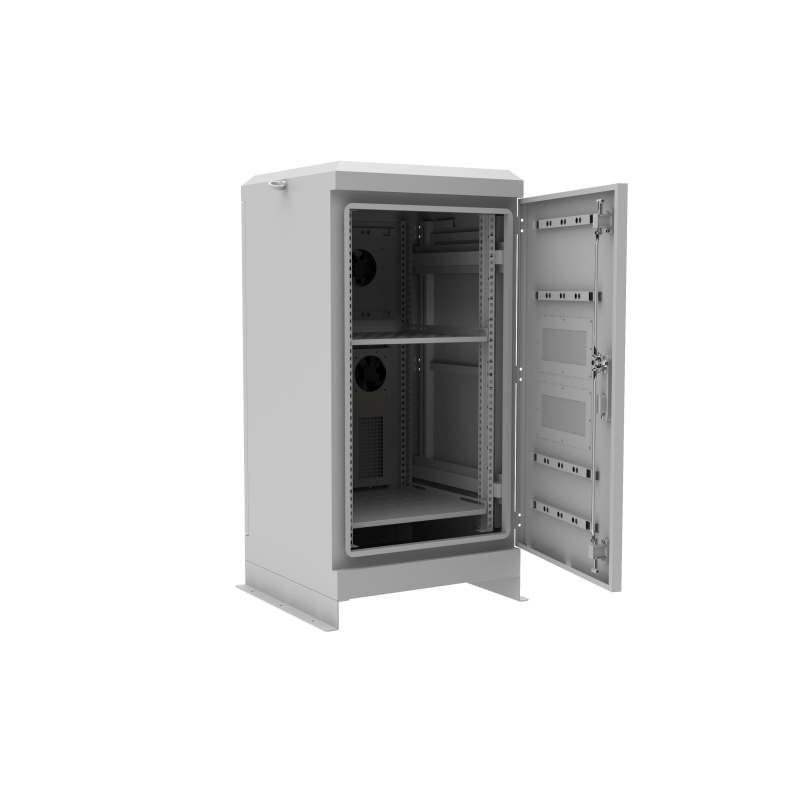

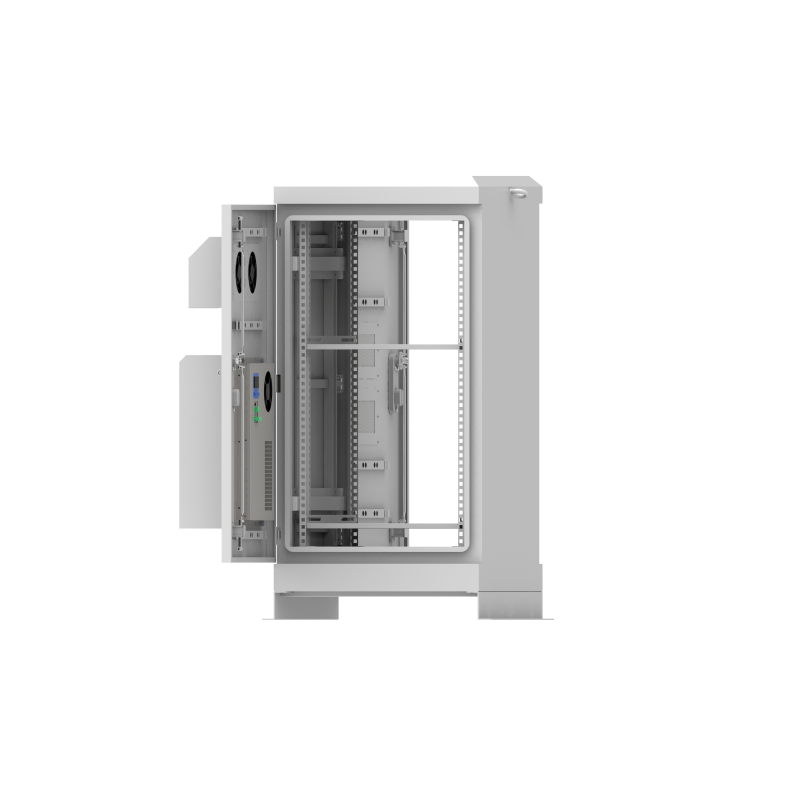

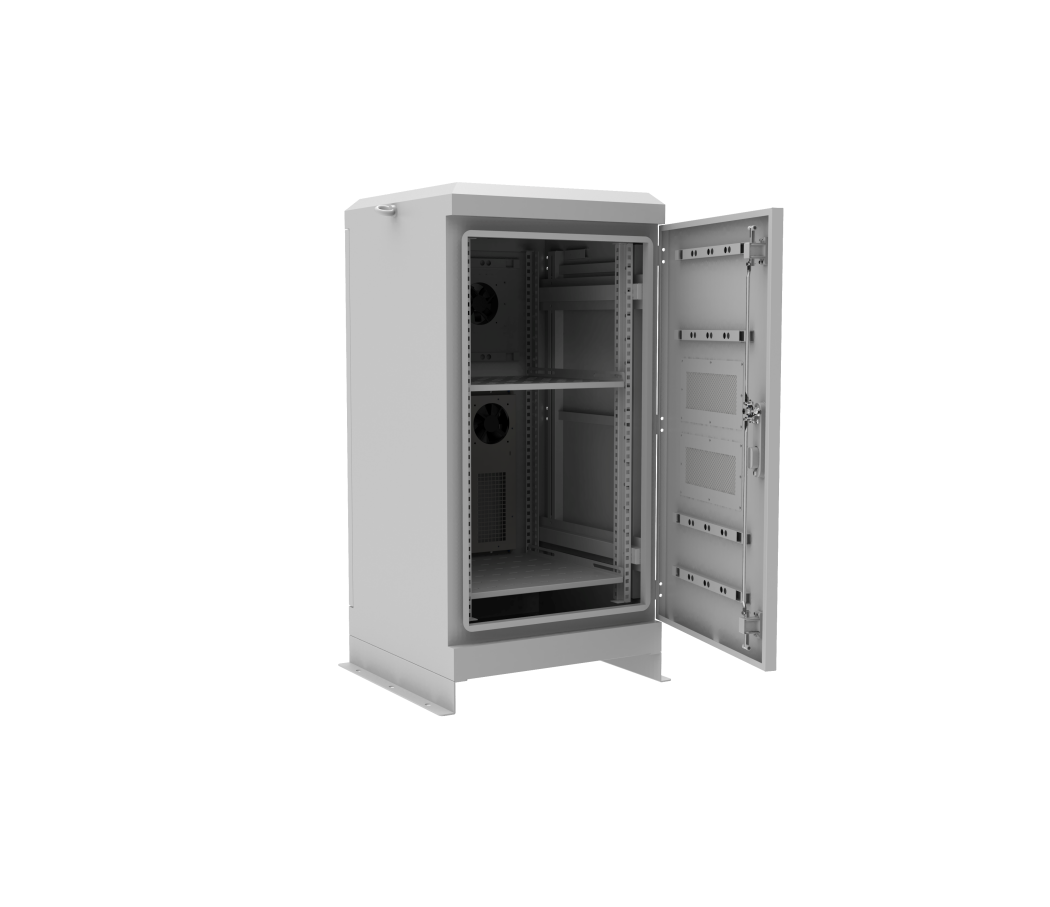

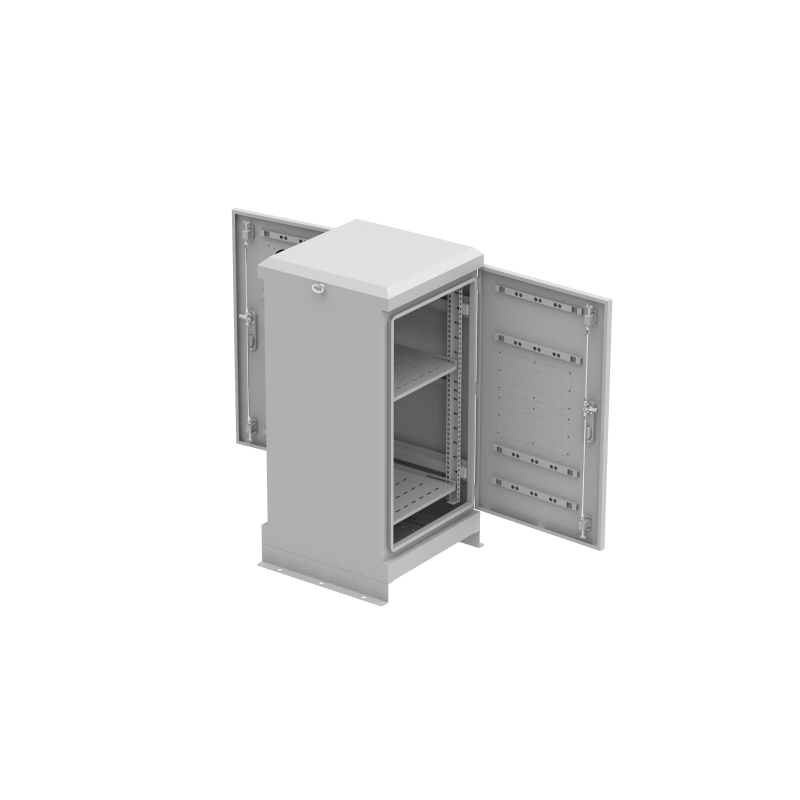

The cabinet body is made of galvanized steel, with stainless steel available for corrosive environments. Panel thickness is determined according to size and structural requirements, typically ranging from 1.2 mm to 4 mm. After fabrication, each cabinet undergoes putty filling and sanding, mechanical polishing, outdoor-grade powder coating, and baking curing, ensuring corrosion resistance, anti-static properties, and long-term weather durability. The doors and maintenance panels feature sealing gaskets, and the multi-door structure facilitates routine maintenance, while the robust frame keeps the cabinet intact under wind, dust, or public exposure.

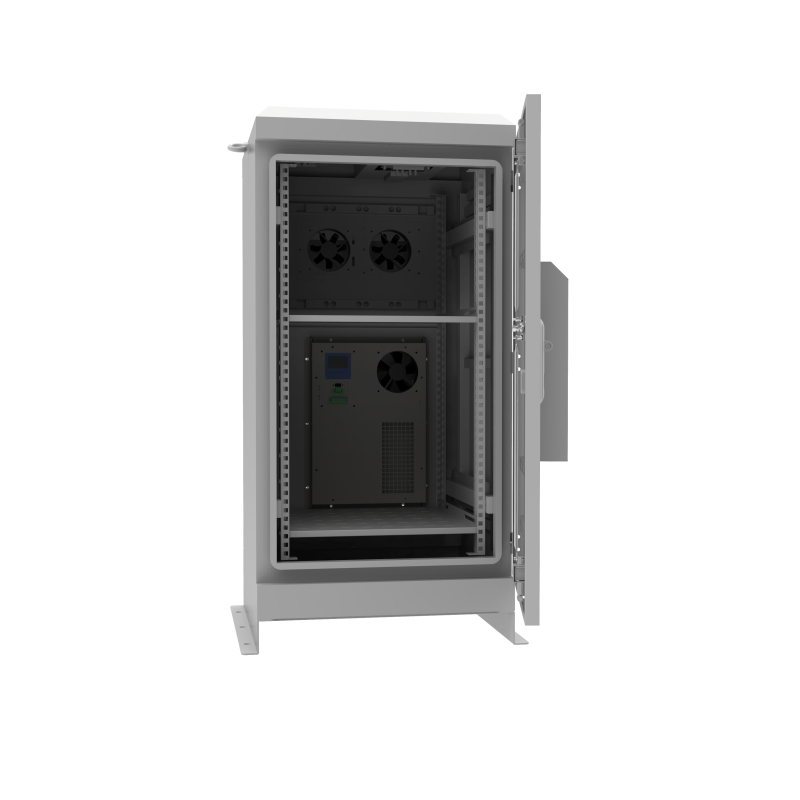

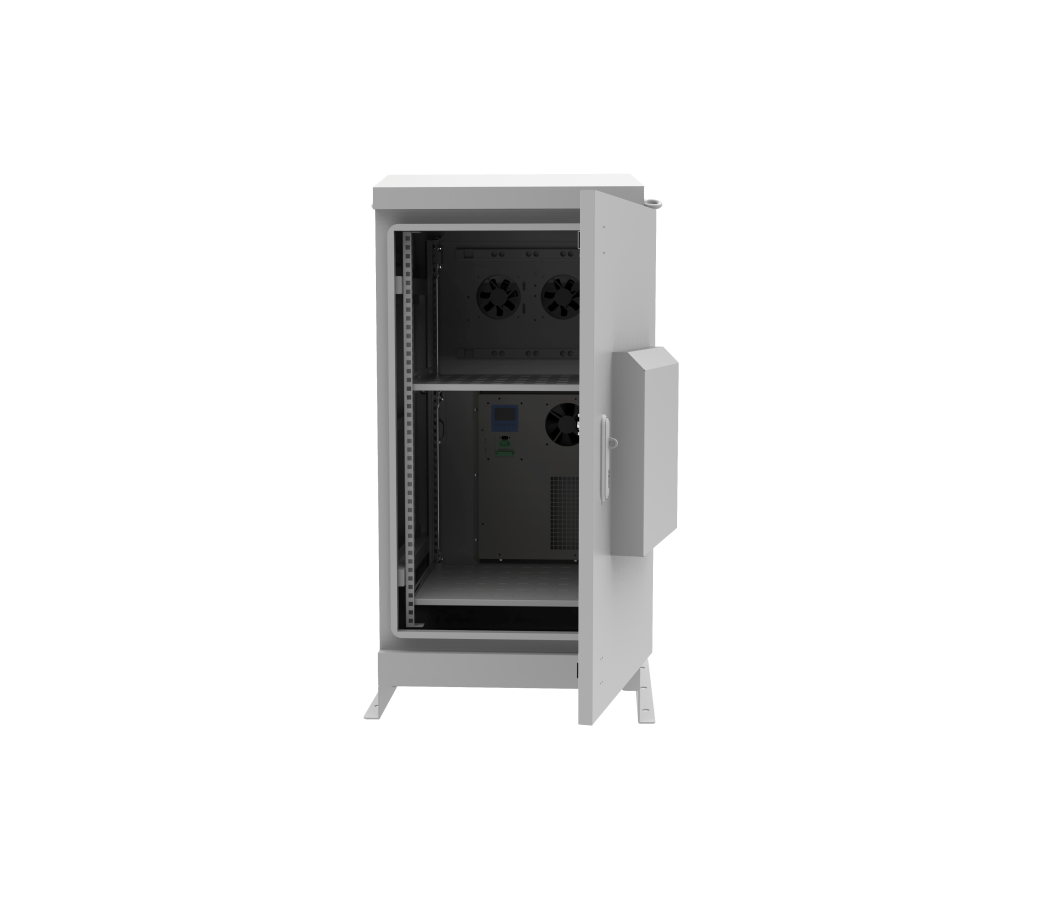

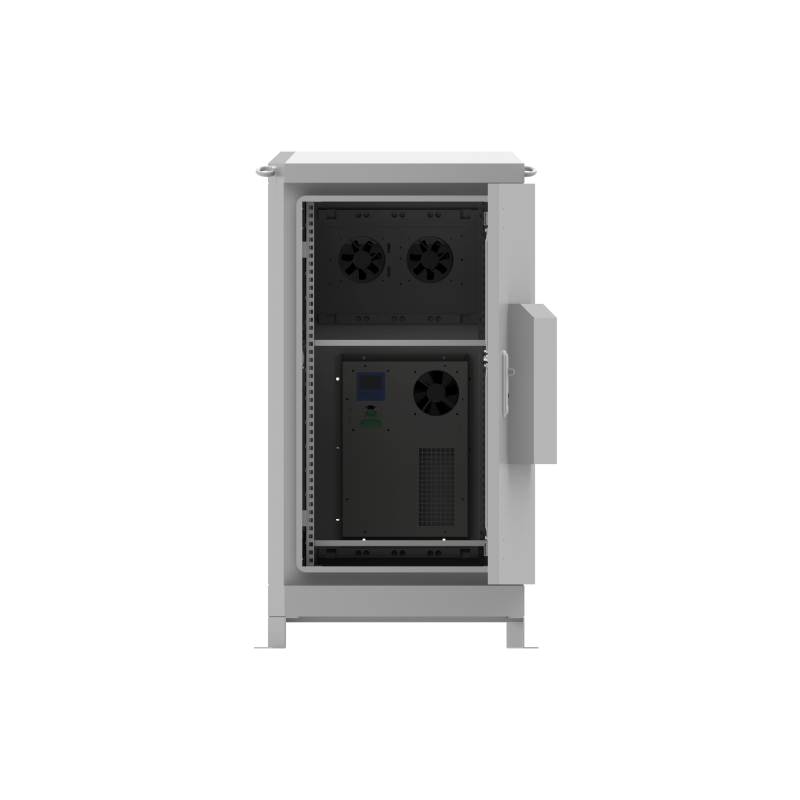

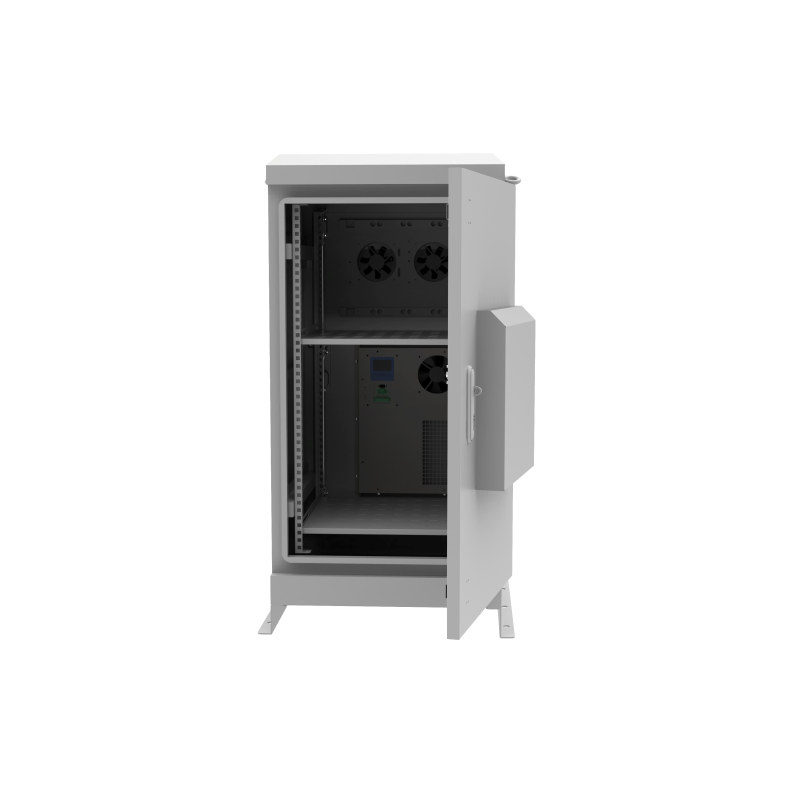

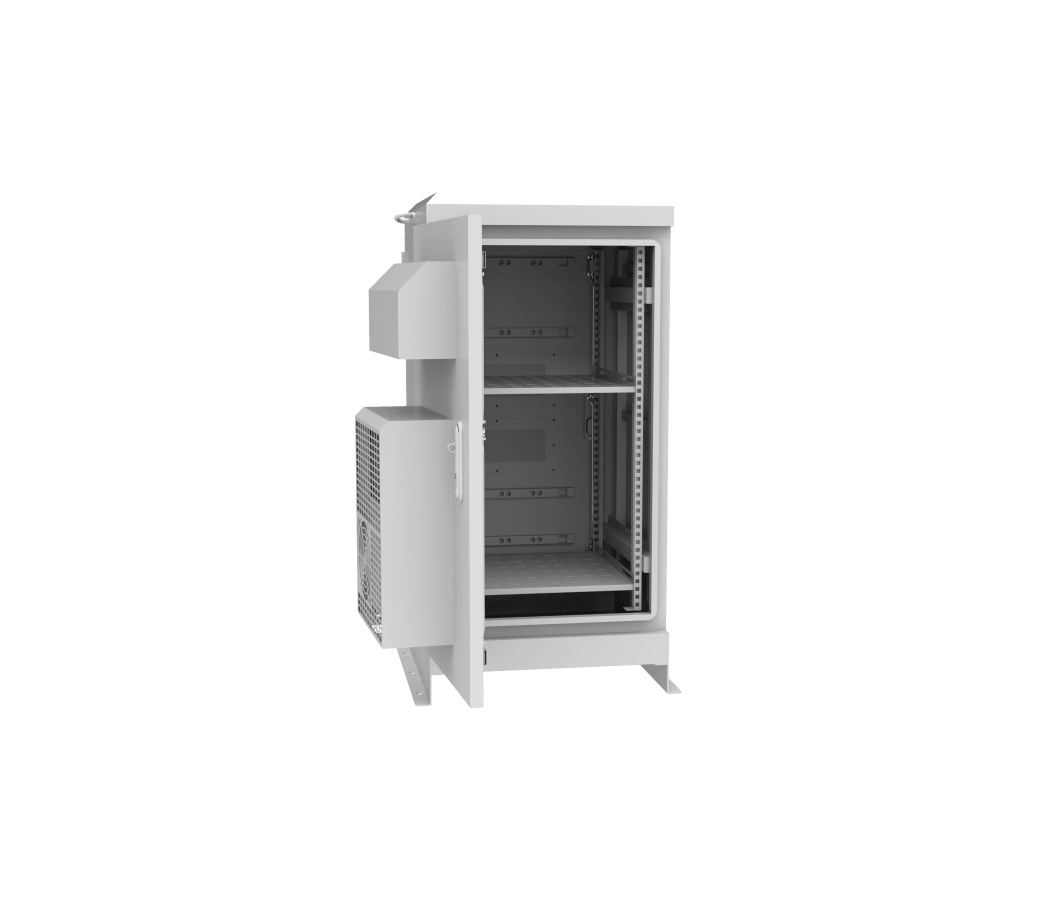

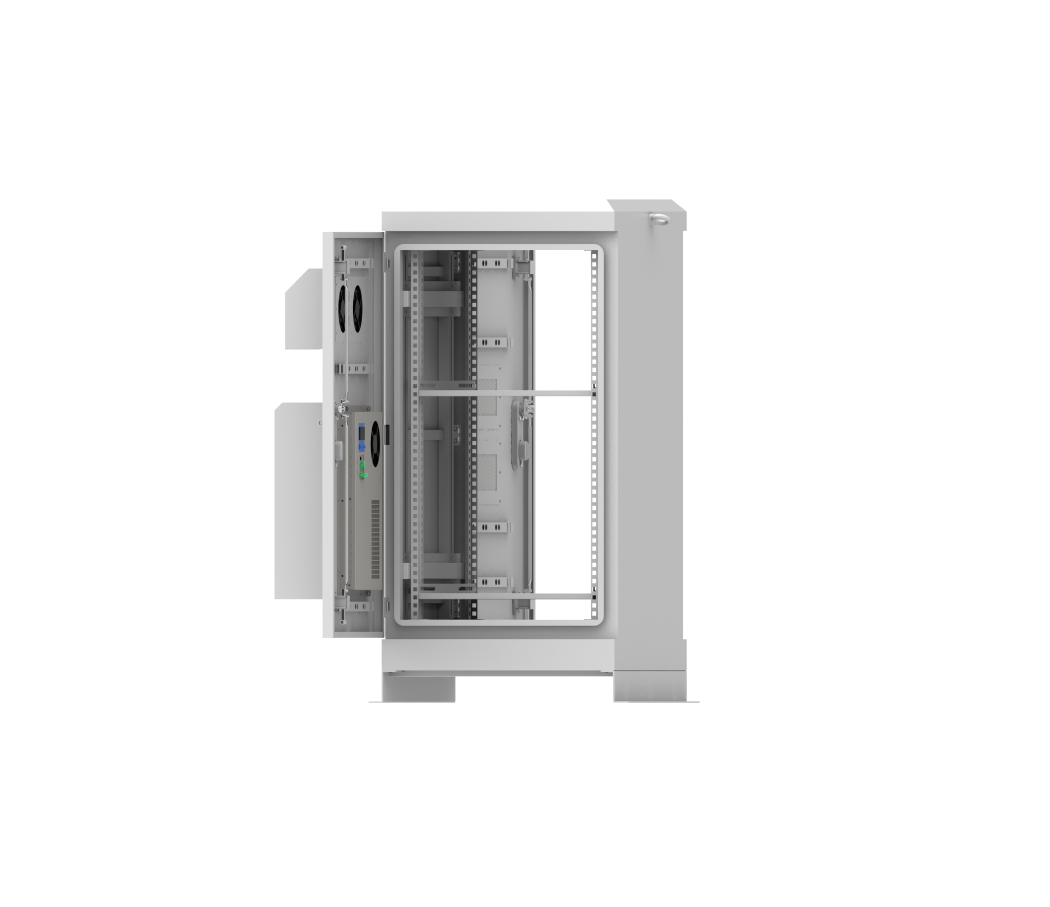

Internally, the cabinet supports standard 19-inch rack installation, with cable entry points equipped with cable trays or sealed wiring plates. Optional climate control devices such as fans, heaters, and dehumidifiers can be installed to keep network equipment clean, cool, and operating at optimal conditions, reducing downtime caused by environmental stress.

This outdoor network cabinet combines industrial-grade materials, IP65 protection, and user-friendly design, making it suitable for various outdoor deployments. Whether facing dust, rain, salt spray, or high temperatures, it provides reliable protection, ventilation, and maintenance convenience, giving network engineers peace of mind and flexibility while ensuring high-value equipment operates reliably even in the harshest outdoor environments.

Product Parameters

Installation Steps

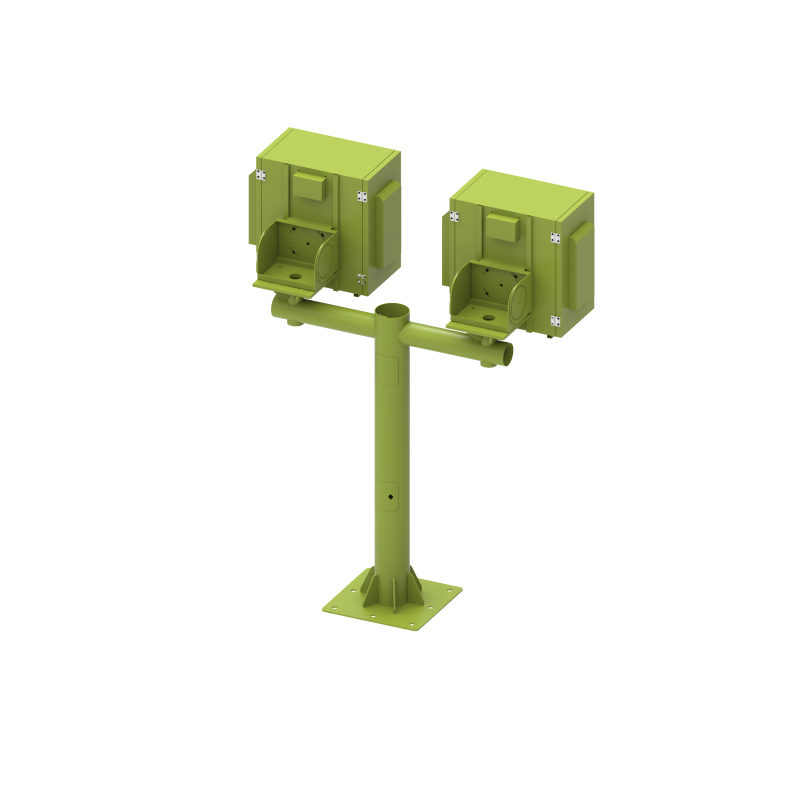

Internal structure of the waterproof box
The waterproof box structure is divided into six main parts: the outer layer of the sheet metal body, the intelligent main control box, the maintenance waterproof door, the projector adjustment base, high-transparency optical glass, and stainless steel installation hanging rings for waterproof box adjustment. The placement method of the projector, the projection method, and the installation method of the waterproof box determine the overall structural design of the waterproof box. In addition to ensuring a stable working environment for the projector, the design of the waterproof box also takes into account the projection angle of the projector and its safety in public places.

Practical features of waterproof boxes
1. The waterproof box has functions such as waterproofing, dustproofing, corrosion resistance, anti-frosting, heating, and dehumidification.
2. The projector platform allows for linear angle adjustment (up to 10 degrees, with larger adjustment angles available upon customization).
3. The multi-door design facilitates easy installation and maintenance of the projector.
4. It is equipped with an internal hot air blower to ensure that there is no frost or fog on the projection surface.
5. The tripod and door use reinforced structures designed for strong wind solidification, and additional hanging protection ensures the safety of the waterproof box before and after installation.
6. Inside, it includes a 32A AC contactor, a 16A or 10A multifunctional socket.
7. The projection port uses optical ultra-white glass with a 95% light transmission rate.

Wind-cooling

• Utilize industrial silent fans for cooling, expelling hot air from the waterproof box, while simultaneously drawing in fresh air through intake vents to create a circulation effect. This helps reduce the heat emitted by the projector within the waterproof box, and the heating module removes fog and moisture from the glass.

Air-conditioning

• Fans and air conditioners together form a dual system, used in high lumen machines and also suitable for harsh weather conditions. The air conditioner not only cools but also dehumidifies, while the heating module clears water droplets and fog from the glass.

Waterproof box material

• The material for waterproof boxes is divided into external and internal materials. The external material is typically made from galvanized steel sheets or stainless steel with thicknesses of 1.2-1.5-1.8-4mm, depending on its shape and size. The internal material is usually made from galvanized steel or stainless steel.

Surface treatment

• Surface treatment involves applying a secret putty, mechanical sanding, spraying outdoor powder paint, and baking. It offers waterproofing, anti-corrosion, anti-static, and heat resistance features. The color can be customized based on the specific needs of the customer's project.
