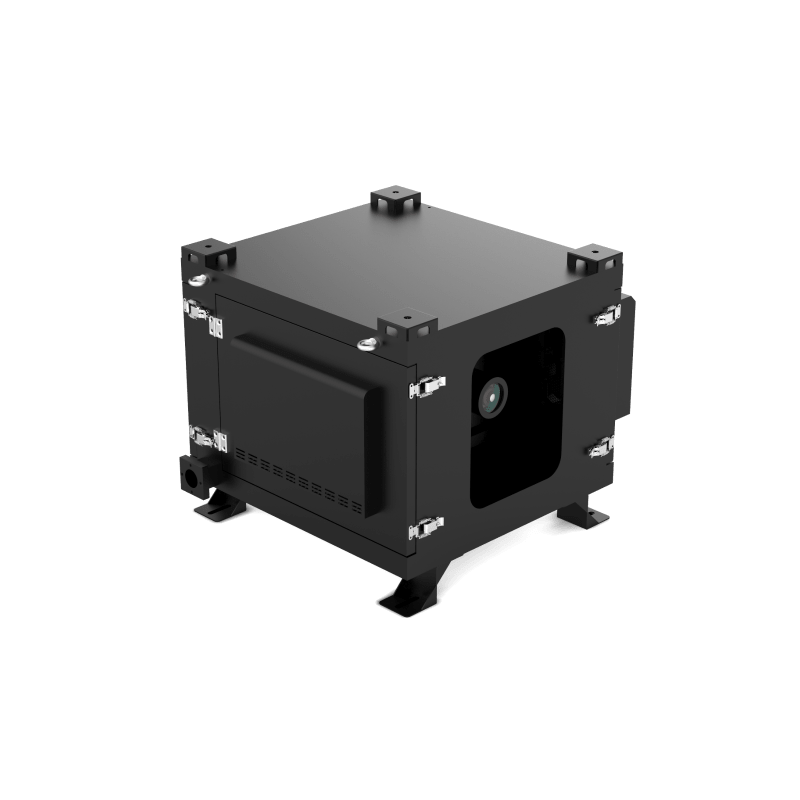

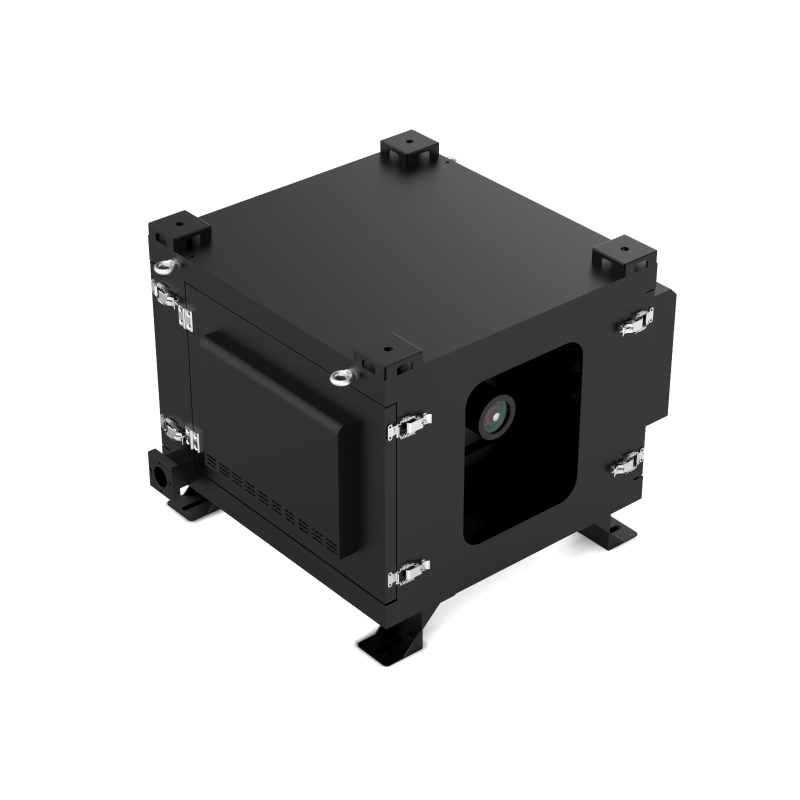

Outdoor Active Cooling Systems Waterproof Electronics & Instrument Enclosure Air Conditioner & Projector Box Optimal Projection

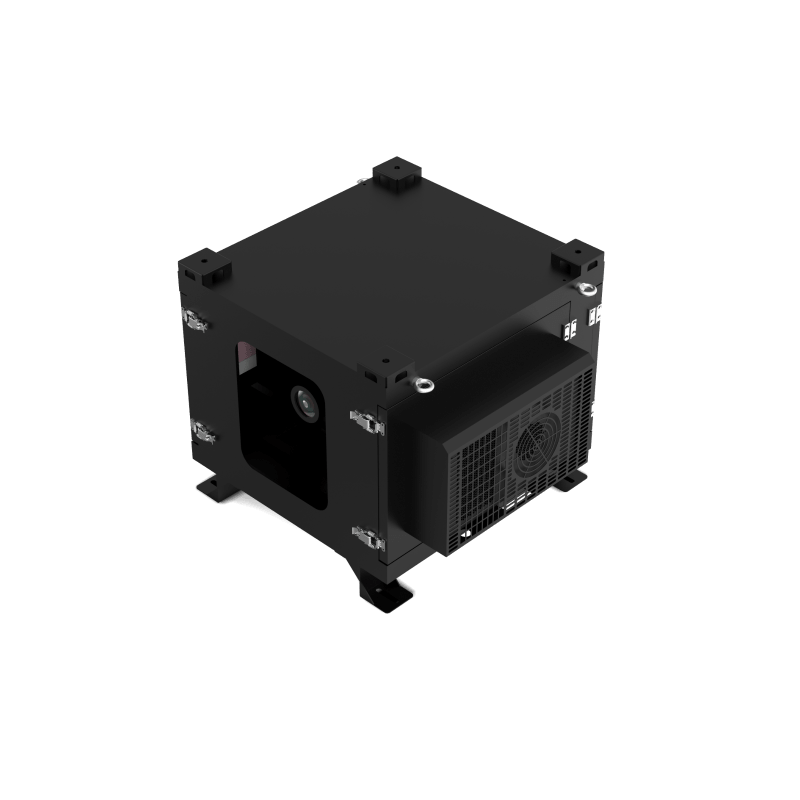

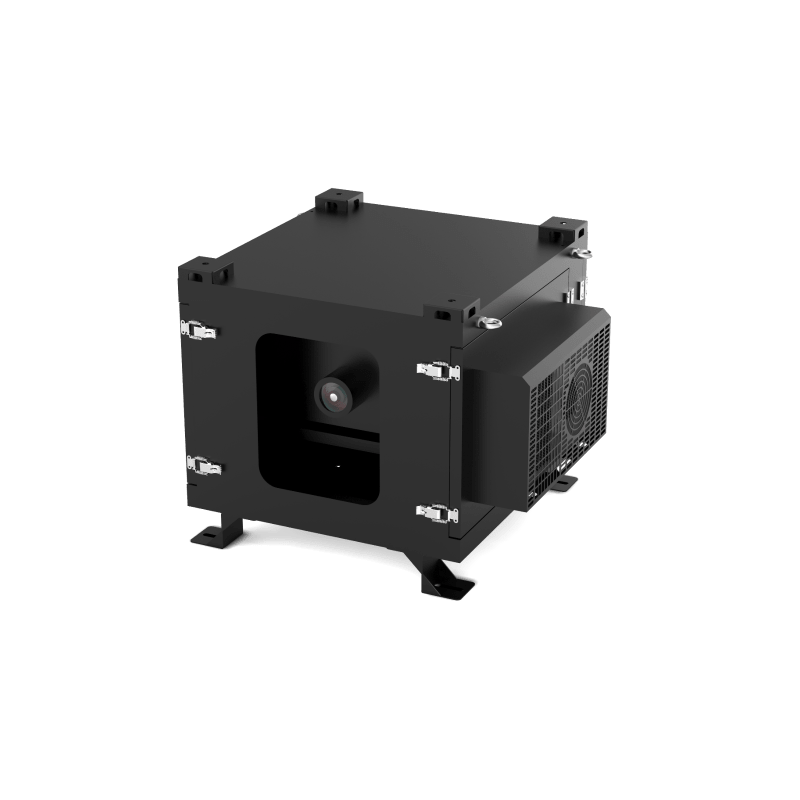

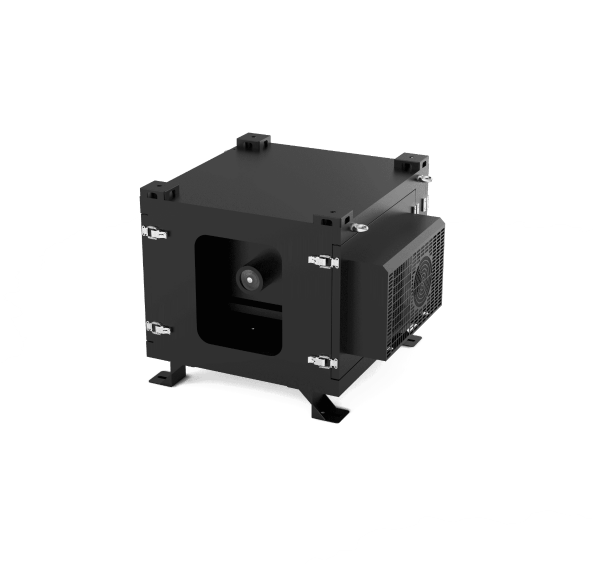

The “Outdoor Active Cooling Systems Waterproof Electronics & Instrument Enclosure Air Conditioner & Projector Box — Optimal Projection” is designed for demanding outdoor installations where projectors and sensitive electronics must perform reliably under all conditions. Whether used for high-brightness laser projection mapping, outdoor cinema, façade displays or equipment cabinets in exposed environments, this enclosure offers full weather-proof, dust-proof and temperature-controlled protection to ensure long-term operational stability.
Constructed from durable galvanized steel or optional stainless-steel sheets (with thicknesses typically ranging from 1.2 mm to 4 mm depending on size and application), the enclosure’s external shell is built to resist corrosion, impact and harsh weathering. Inside the unit, a fully integrated active cooling system—comprising industrial fans, hot-air blower, air-conditioning and de-humidification modules—is precisely tuned to maintain optimal internal temperature and humidity for the projector or electronics. Sealing strips, gaskets and a waterproof IP65-IP66 rated design prevent ingress of water or dust, while a high-transparency optical glass viewing window (≈95% light transmittance) ensures the projection image remains crisp and bright even when enclosed. Surface treatments include mechanical sanding, putty-filling, outdoor powder-coating and baking to deliver anti-corrosion, anti-static and heat-resistant performance. This housing provides a robust, engineered solution to protect valuable projection equipment and electronics in unforgiving outdoor enclosures.
- Overview
- Recommended Products

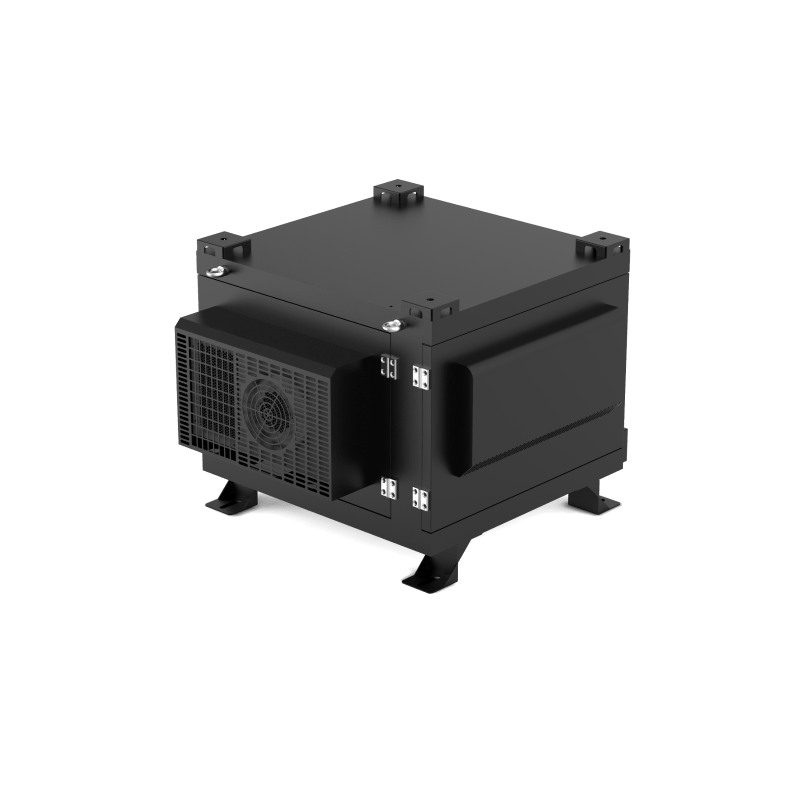

- Utilize industrial silent fans for cooling, expelling hot air from the waterproof box, while simultaneously drawing in fresh air through intake vents to create a circulation effect. This helps reduce the heat emitted by the projector within the waterproof box, and the heating module removes fog and moisture from the glass.

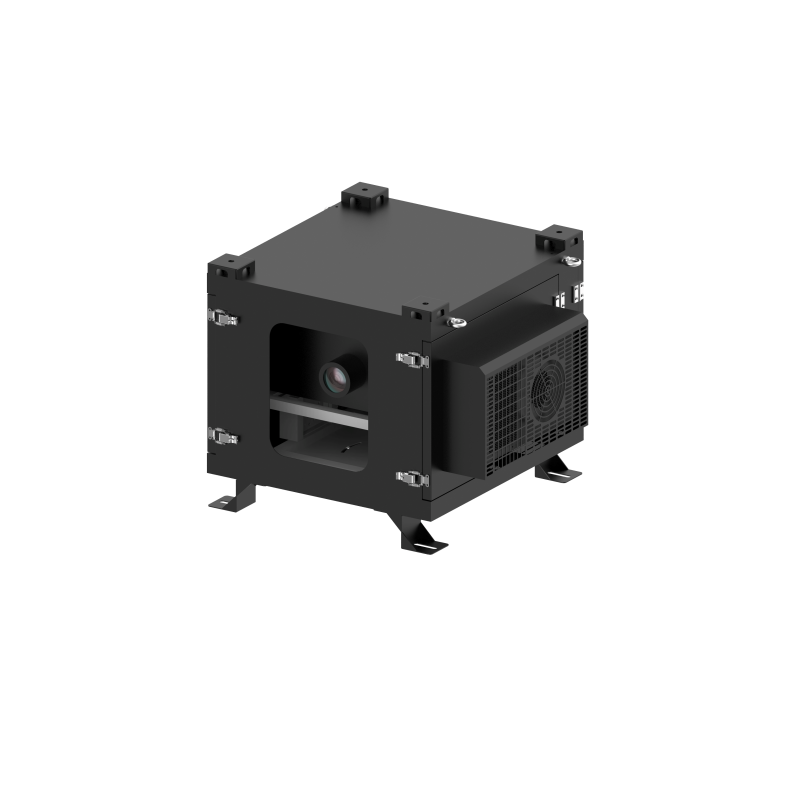

- Fans and air conditioners together form a dual system, used in high lumen machines and also suitable for harsh weather conditions. The air conditioner not only cools but also dehumidifies, while the heating module clears water droplets and fog from the glass.
- The material for waterproof boxes is divided into external and internal materials. The external material is typically made from galvanized steel sheets or stainless steel with thicknesses of 1.2-1.5-1.8-4mm, depending on its shape and size. The internal material is usually made from galvanized steel or stainless steel.
- Surface treatment involves applying a secret putty, mechanical sanding, spraying outdoor powder paint, and baking. It offers waterproofing, anti-corrosion, anti-static, and heat resistance features. The color can be customized based on the specific needs of the customer's project.
Product Introduction

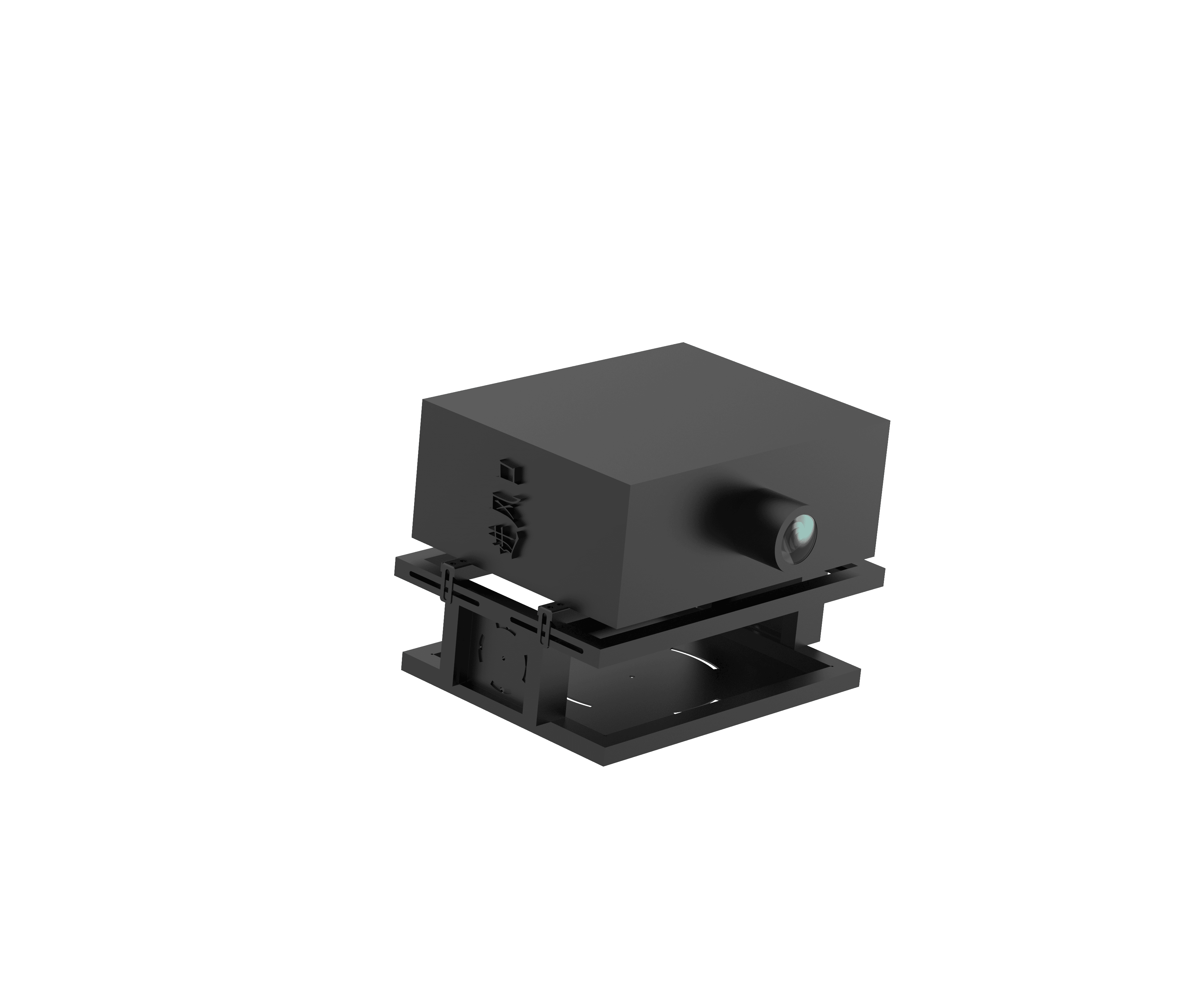

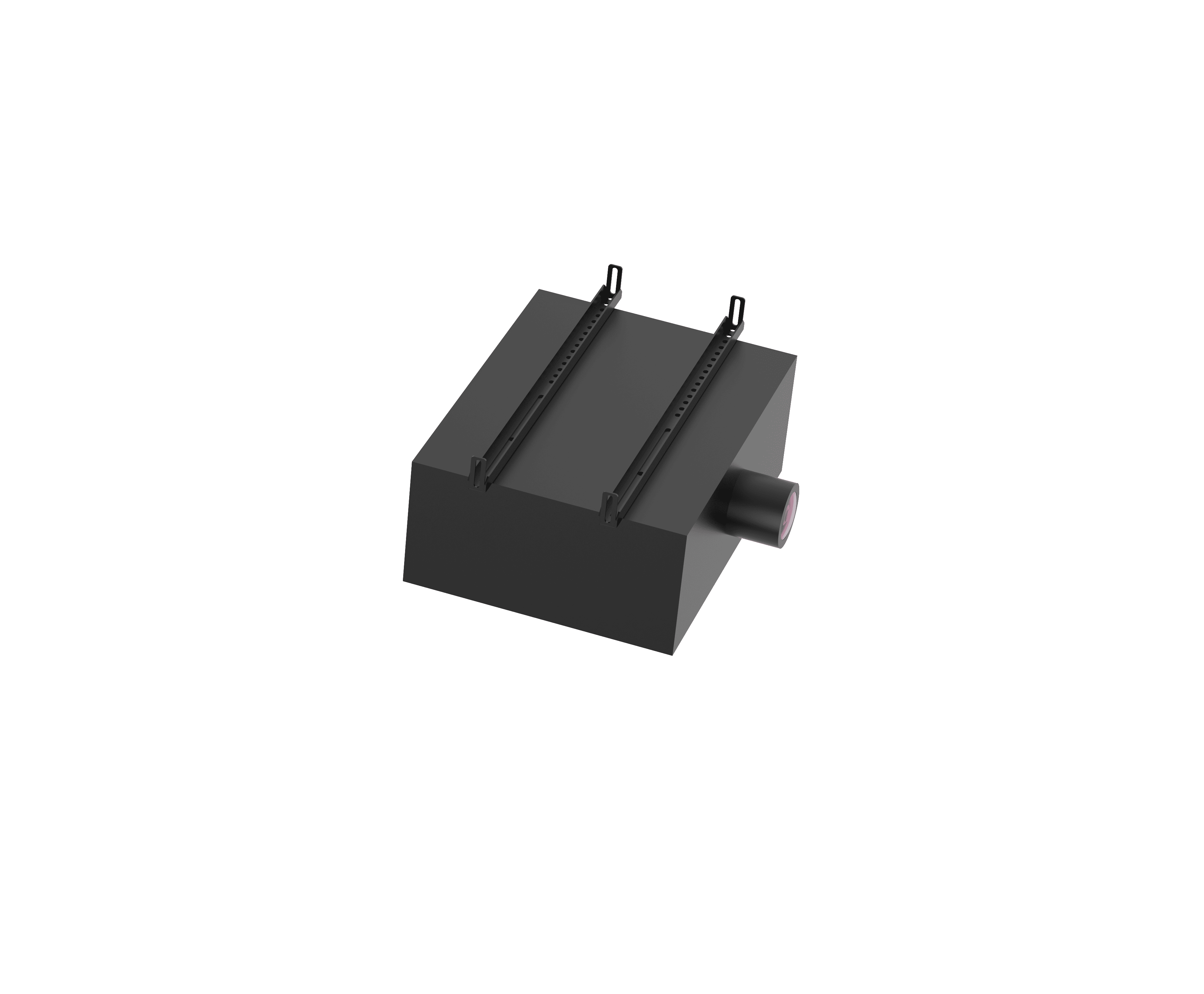

Projector Base Station:
The projector is placed in the cabinet at 45° and can be adjusted horizontally by ±5° and vertically by ±10–15°. At the same time, the projector is in a state of constant temperature and humidity inside the casing, and the temperature and humidity are controlled internally through a sensing system; the waterproof and dustproof rating of the casing reaches IP65; the light transmittance of the see-through window reaches 95%, which greatly reduces the light loss of the projector.
Product Parameters
| External Size | custom | Material | Galvanized steel |
| IP level | IP65 | Type | Control Box |
| Model Number | SR-12K-GDJKD | Brand Name | thisshirui |
| Place of Origin | Guangdong, China | Product Name | outdoor projector enclosure |
| Material | Galvanized steel | Surface treatment | Spray paint |
| Function | Waterproof Dustproof Control Box | Drawing Format | DWG/PDF |
| IP Rating | IP65 Waterproof Box | Application | Protect Appliance |
| Applicable Scene | projection show | Customization | Accept Enclosure Customized |
| Performance | Automatic temperature and humidity control | ||

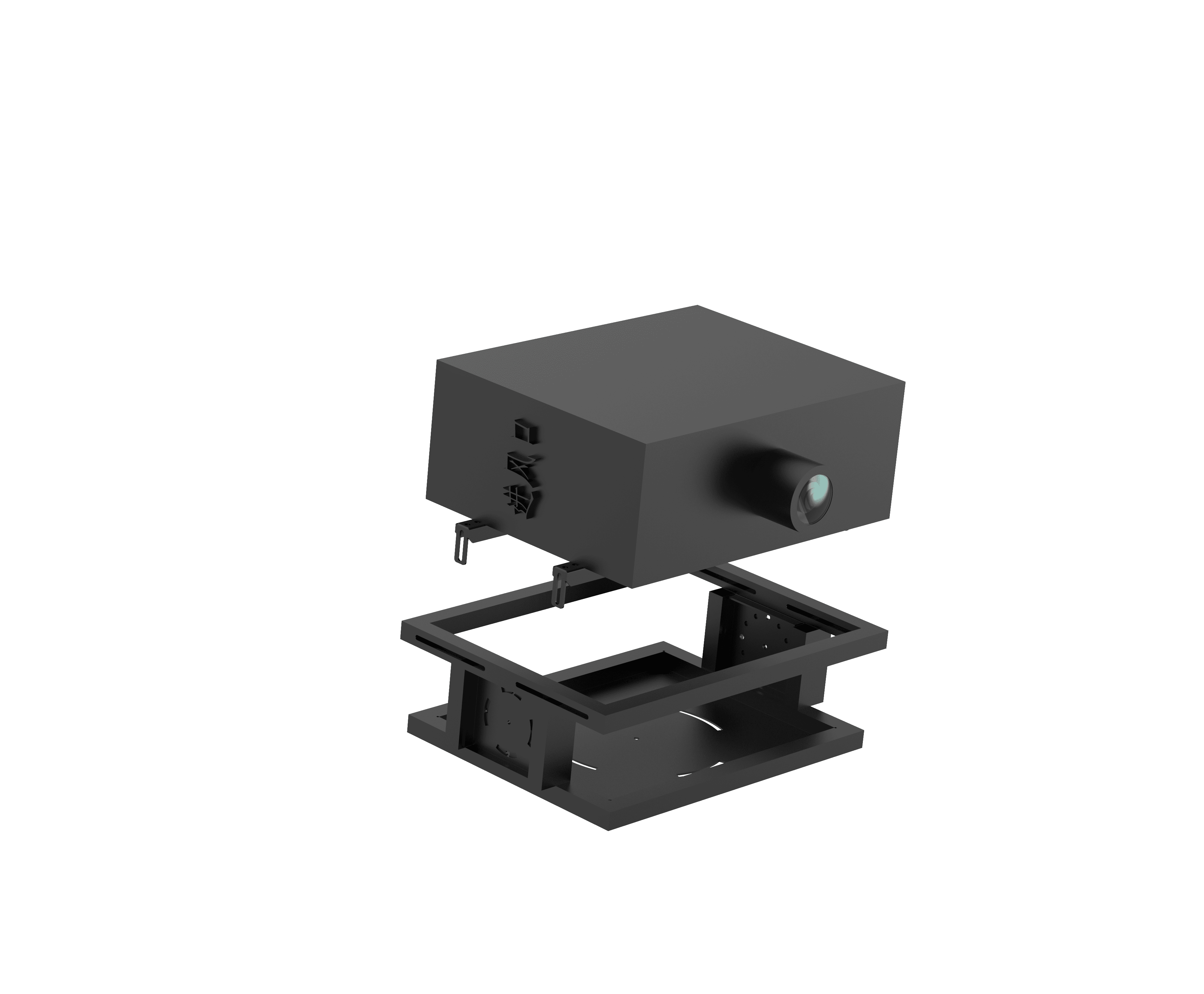

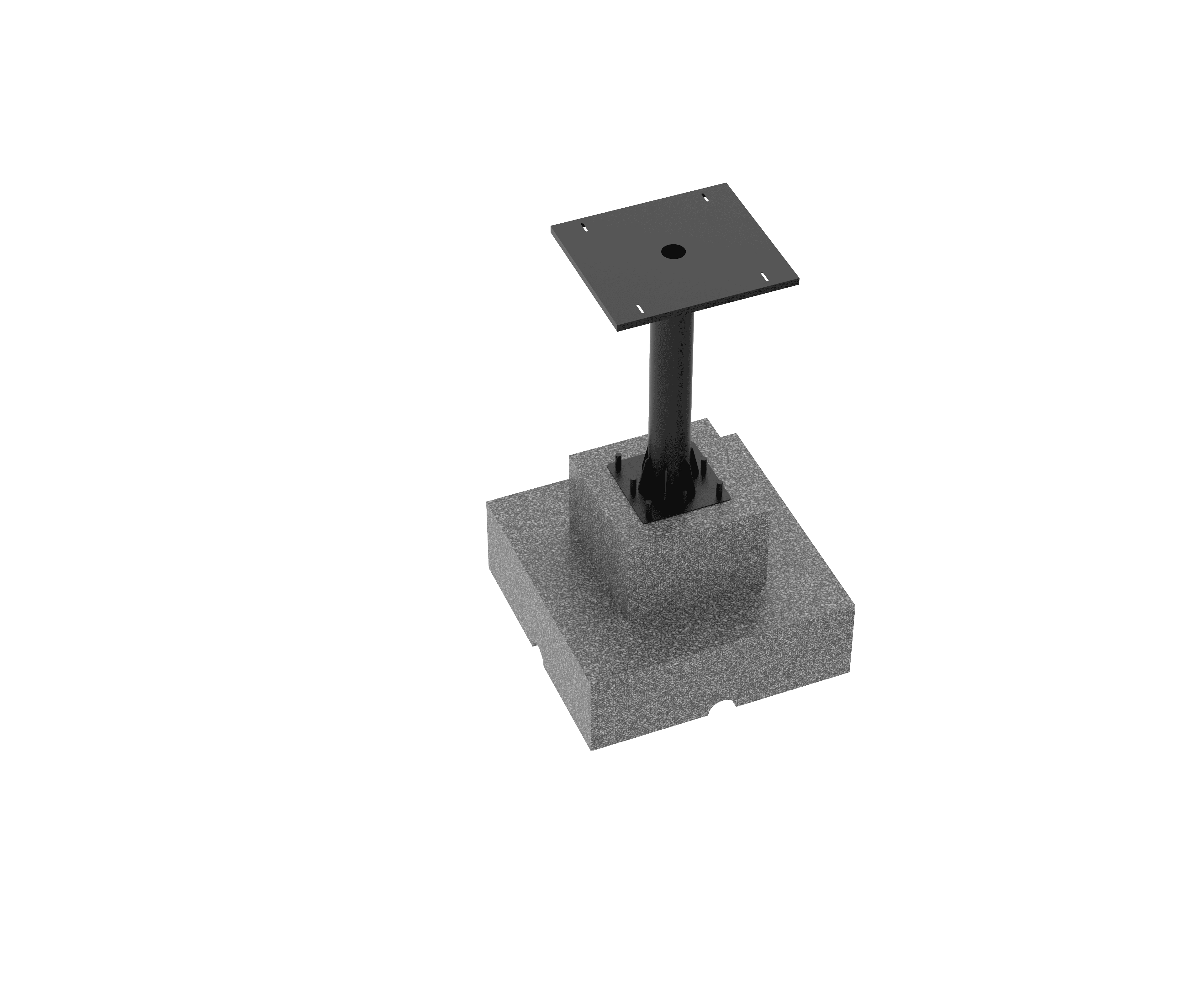

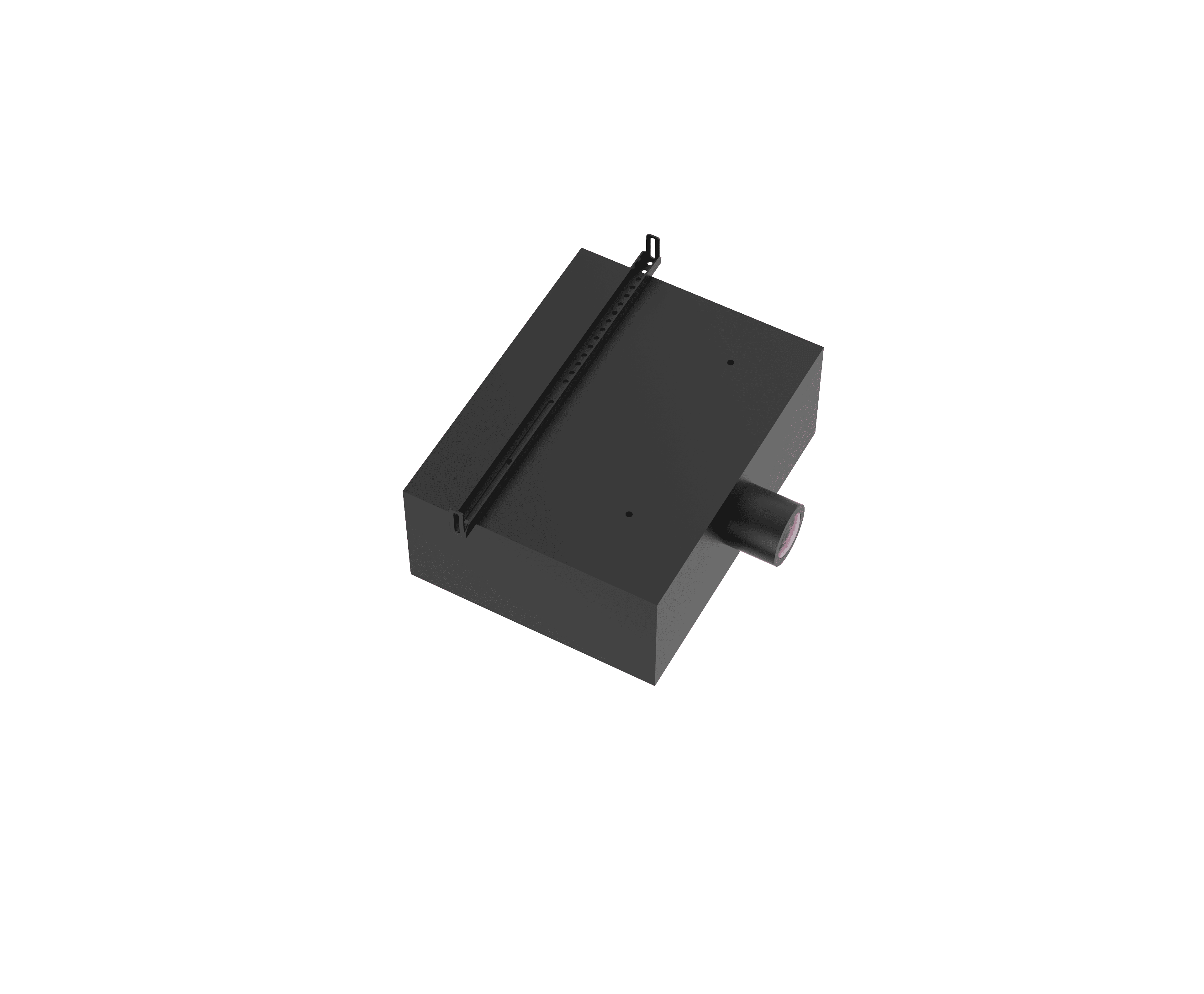

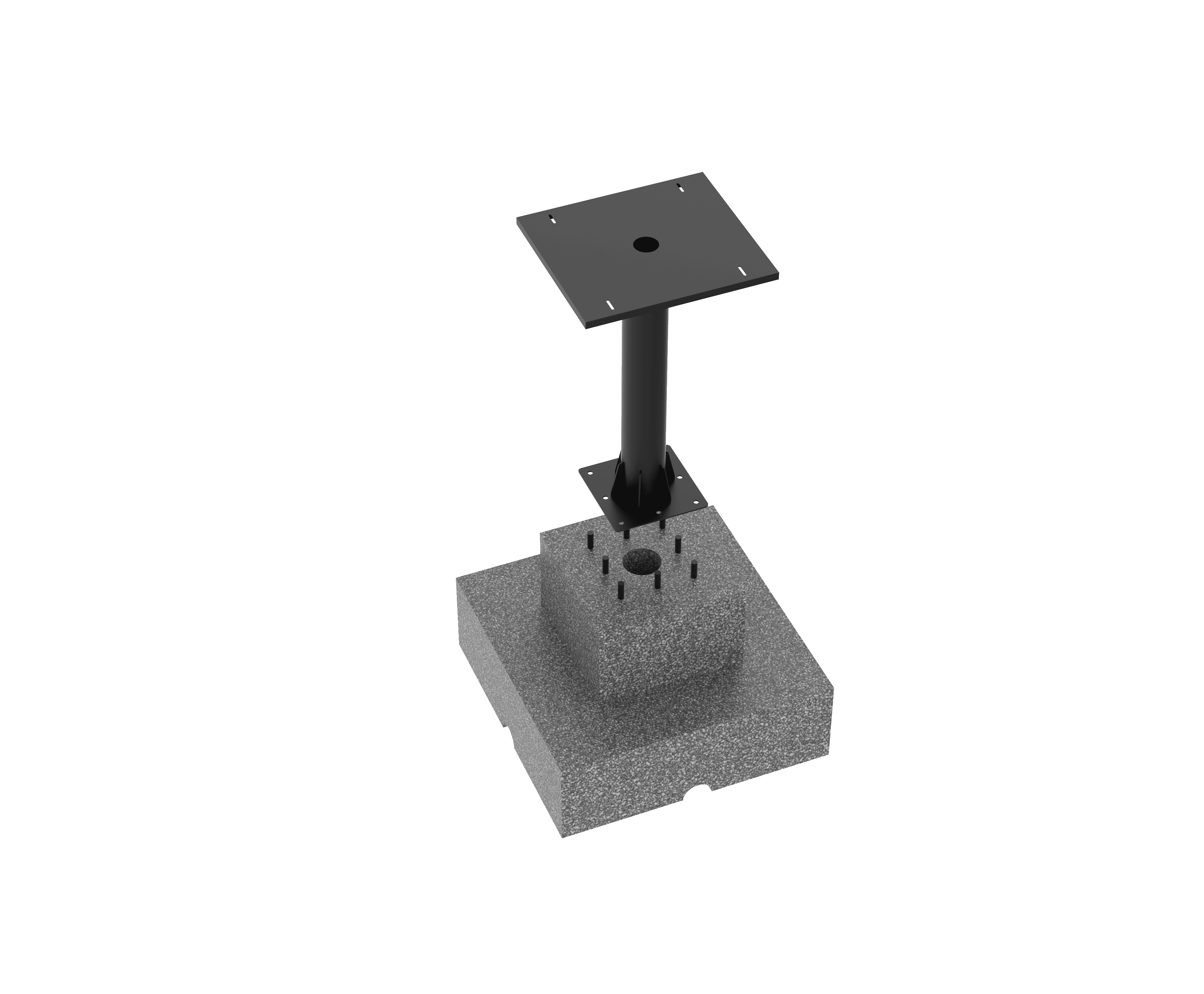

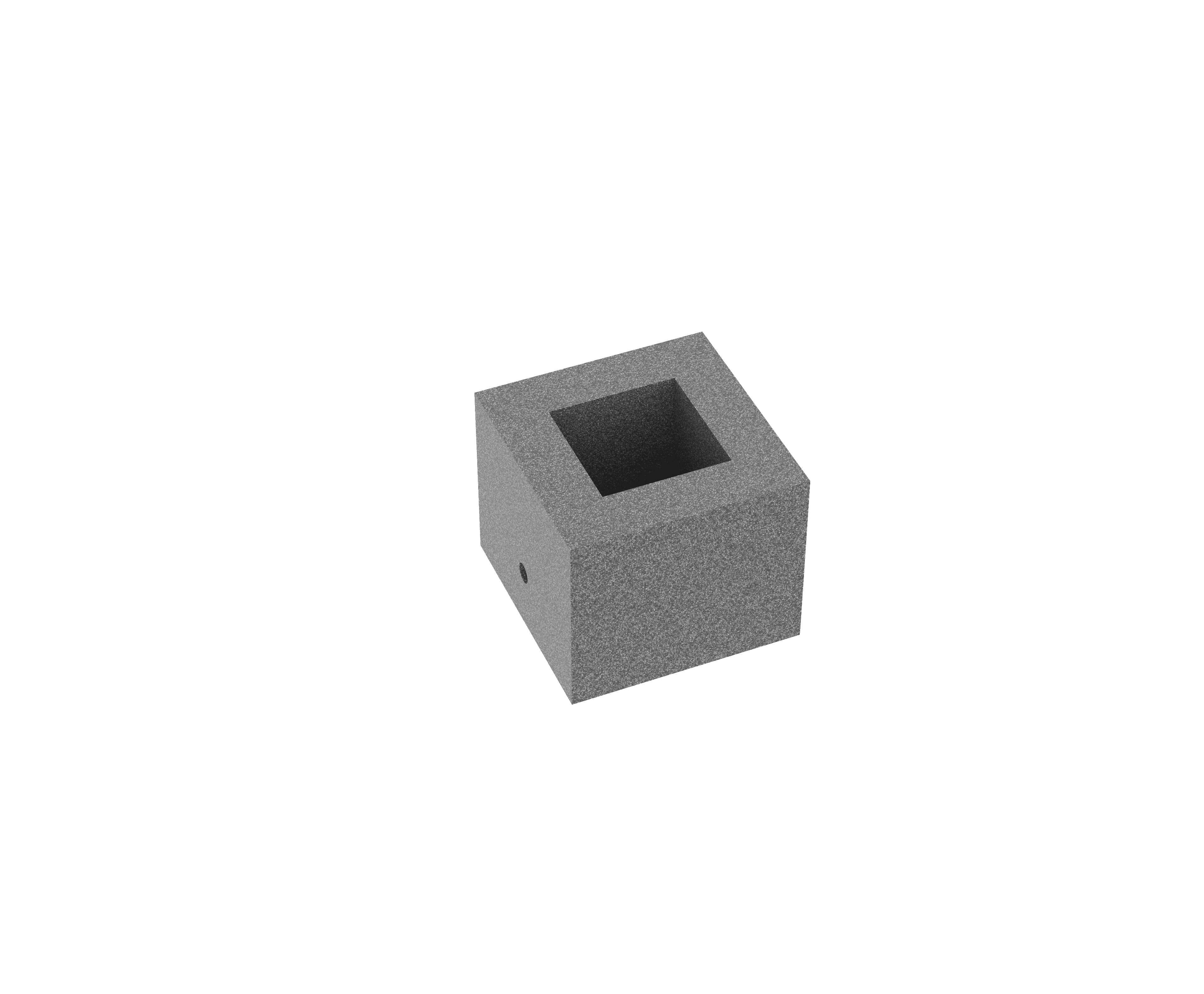

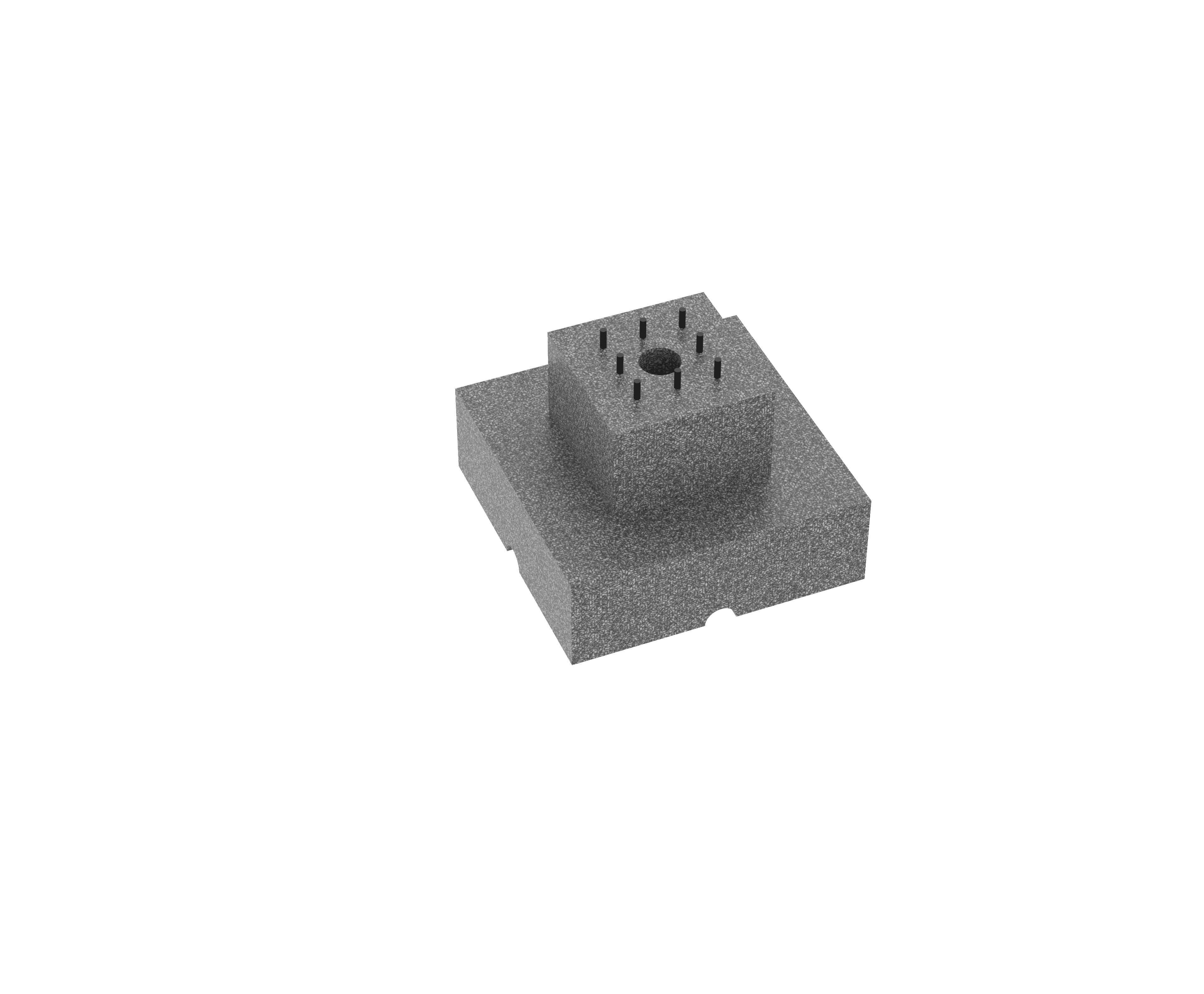

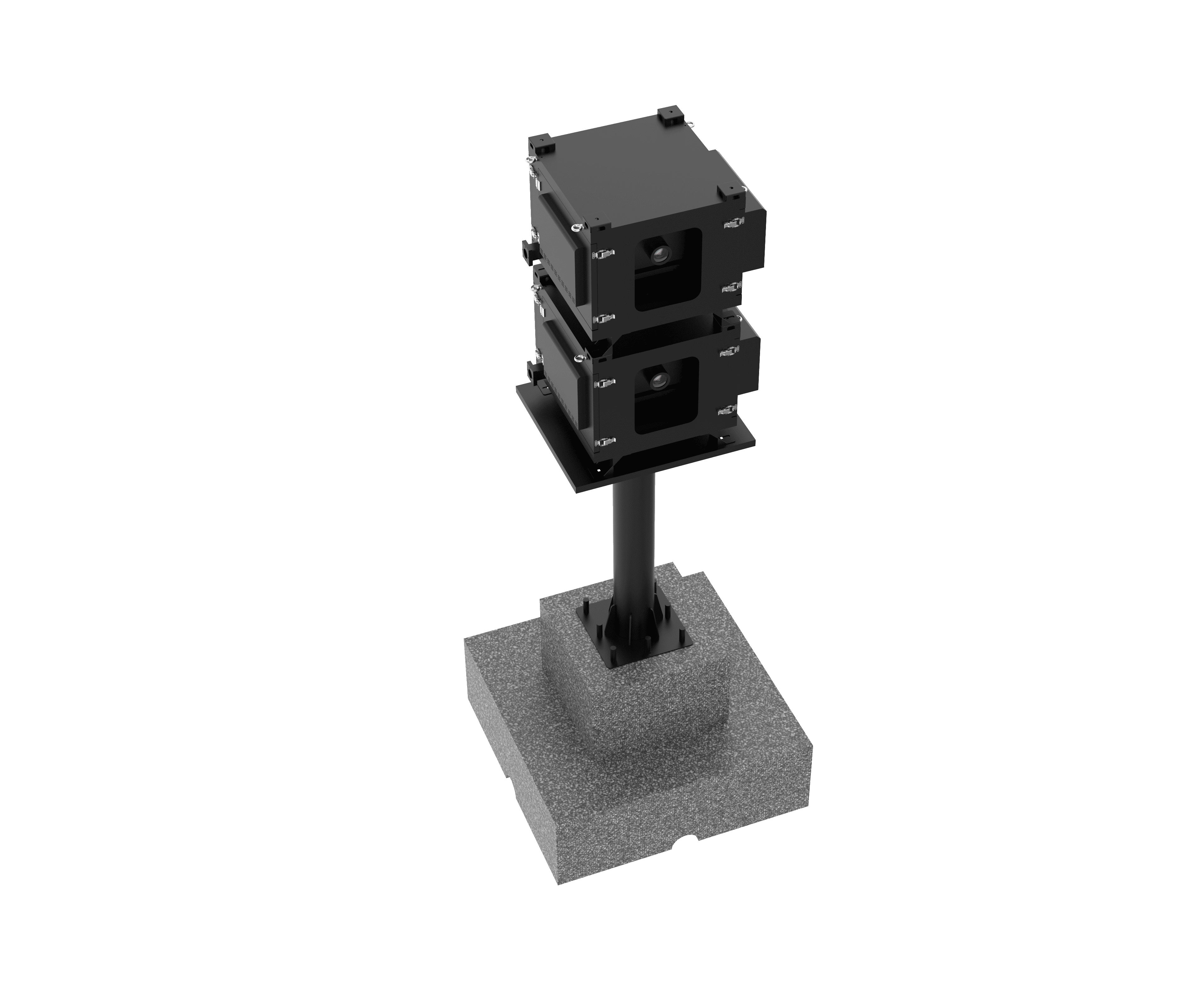

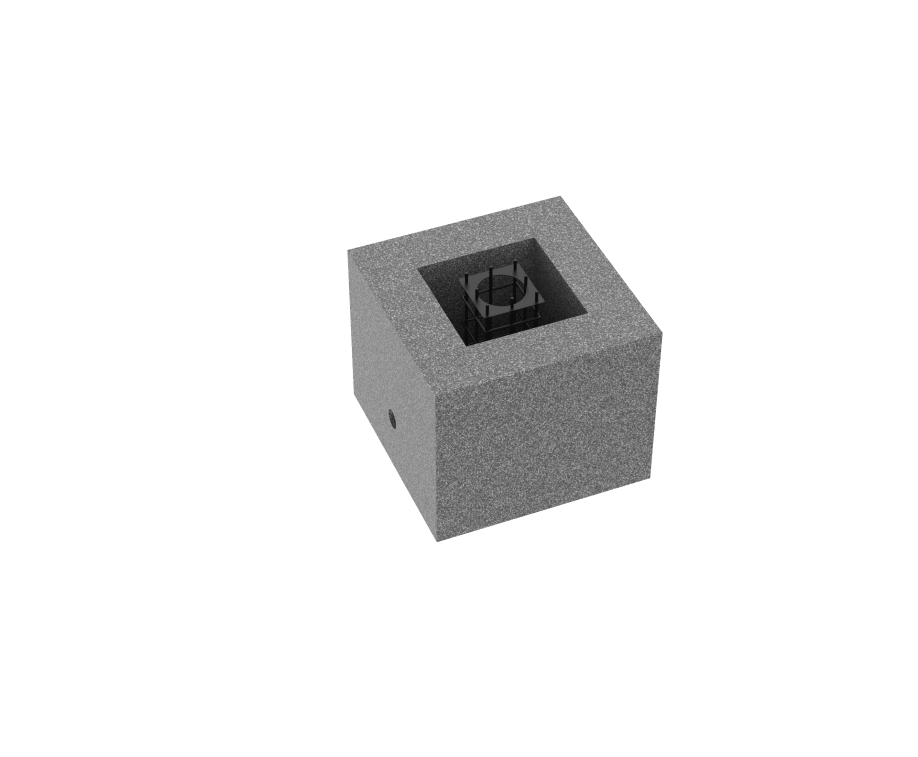

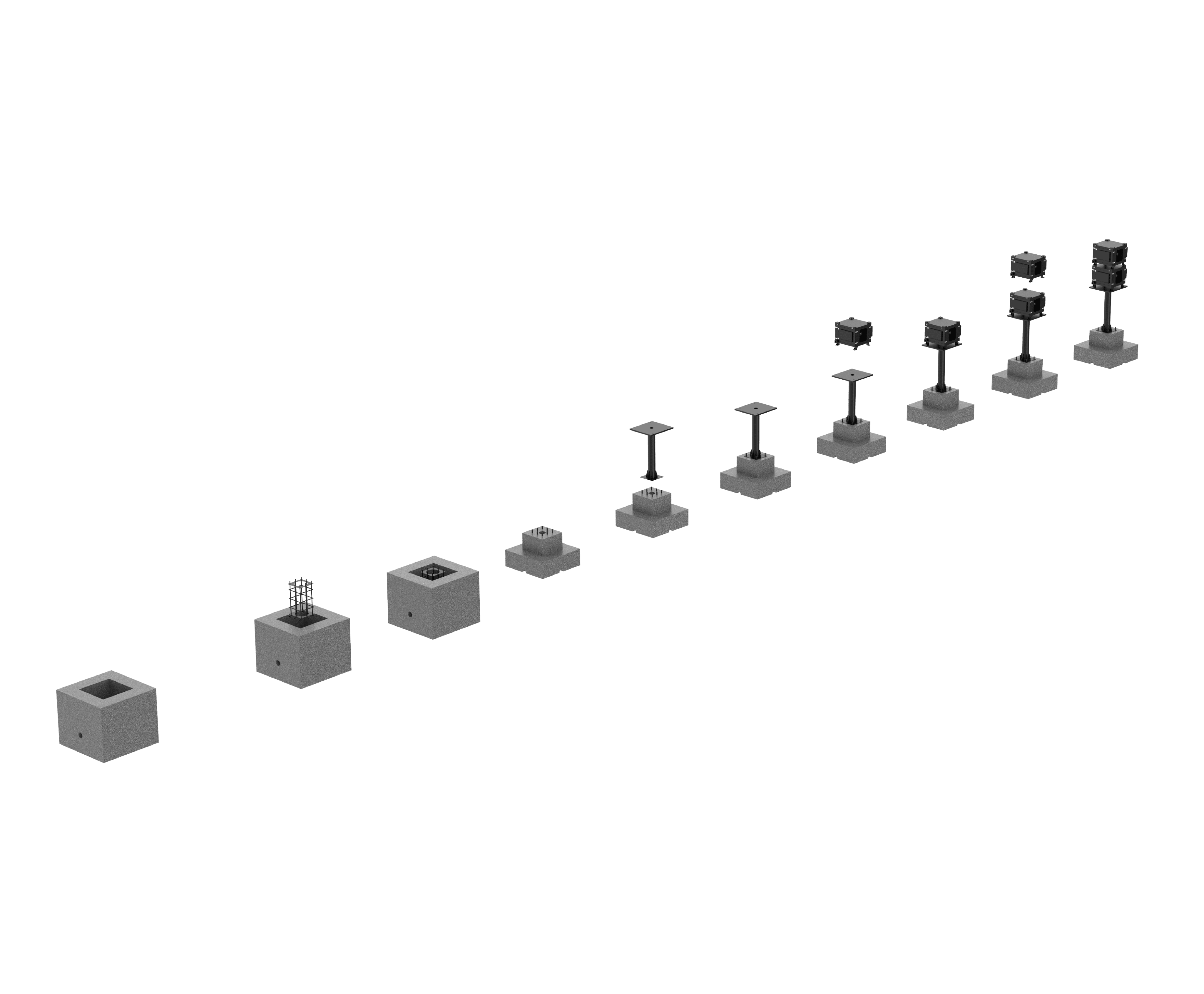

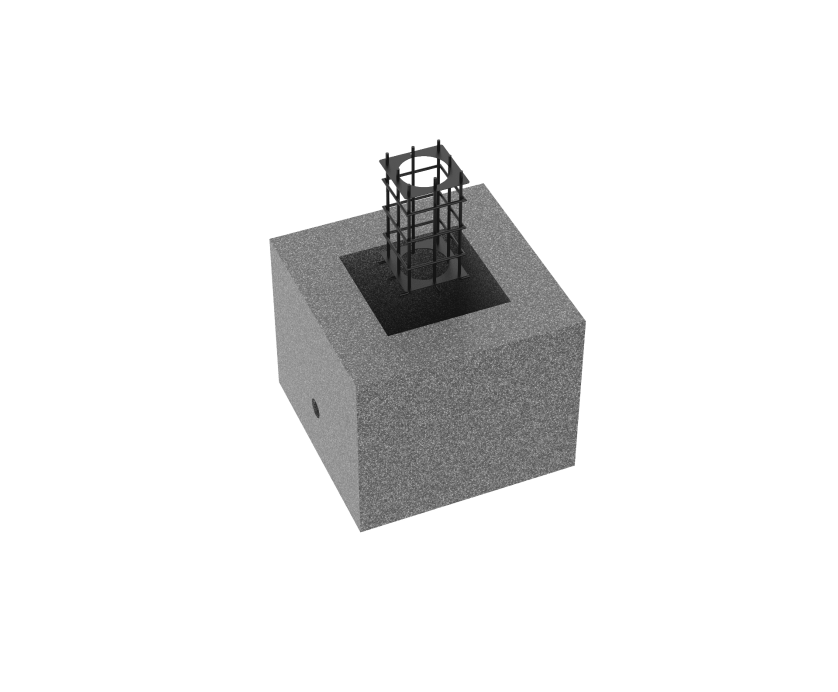

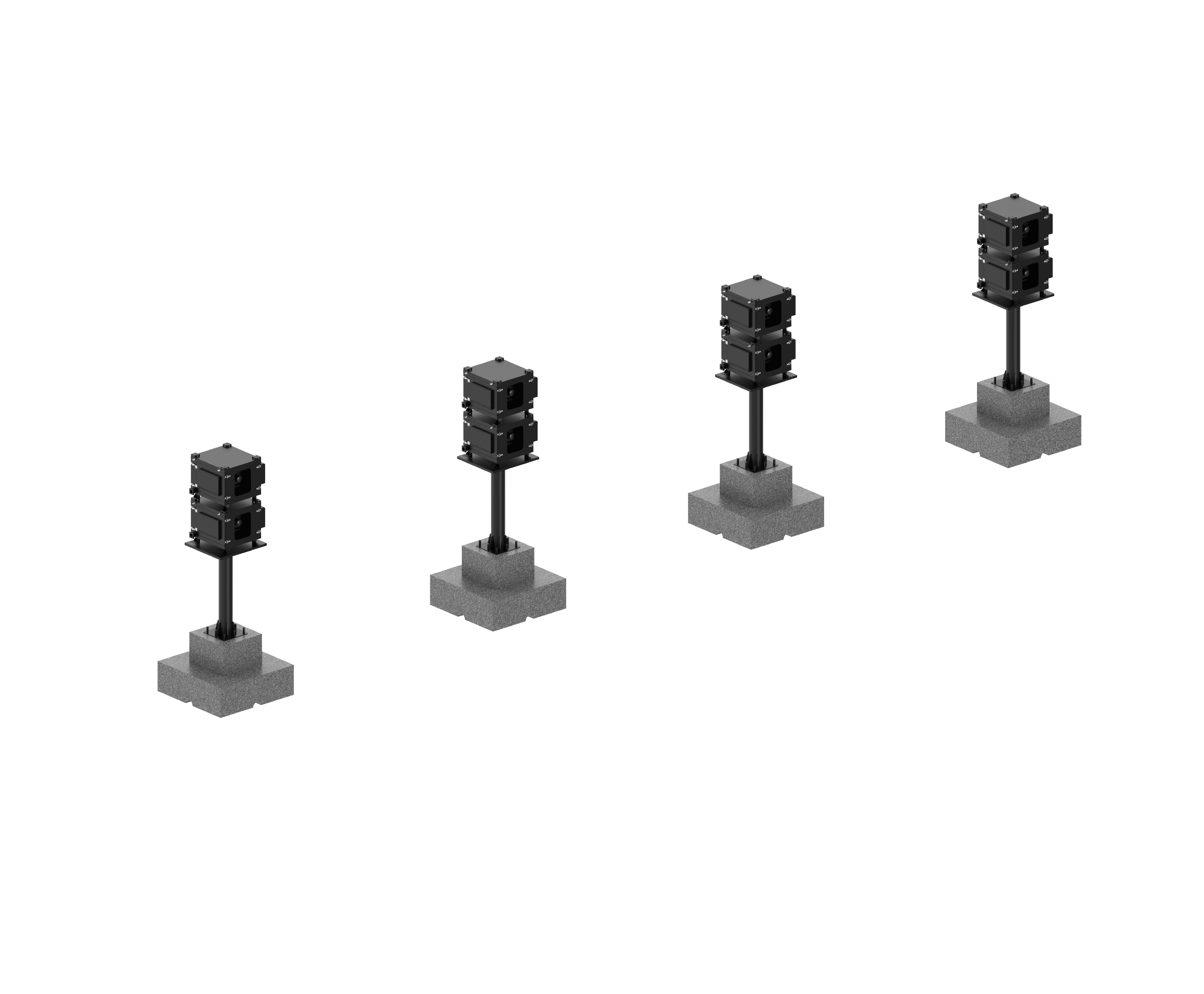

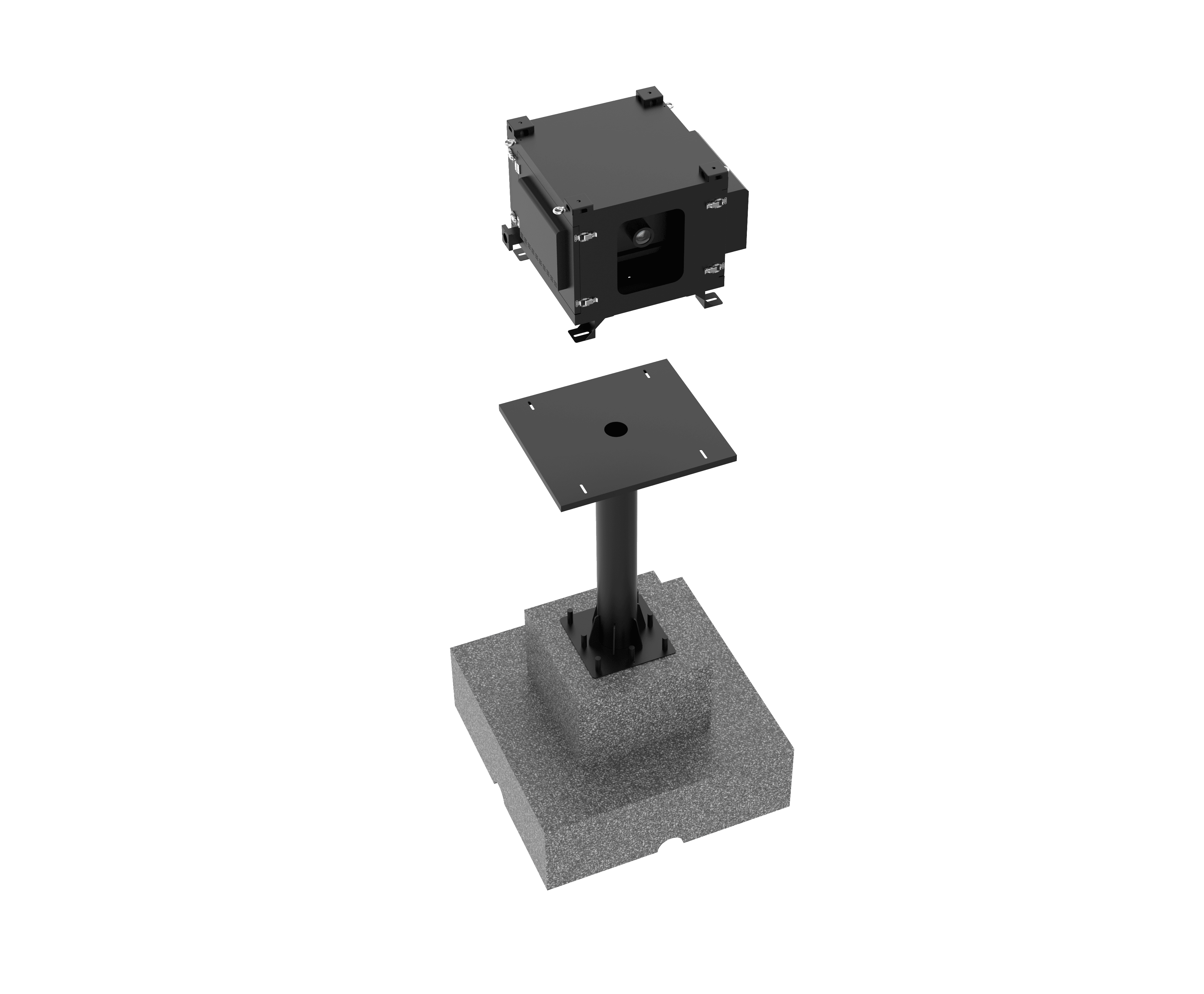

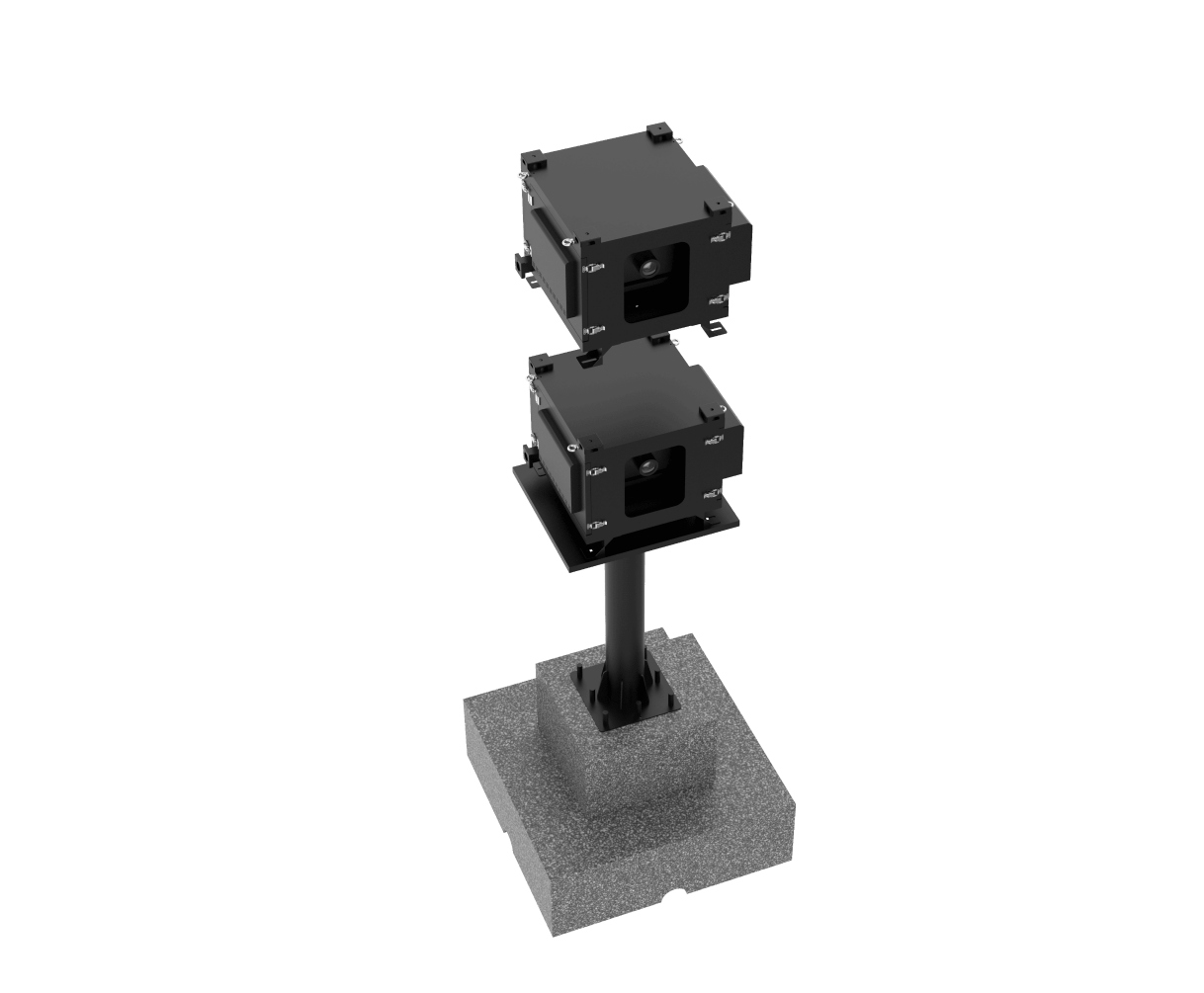

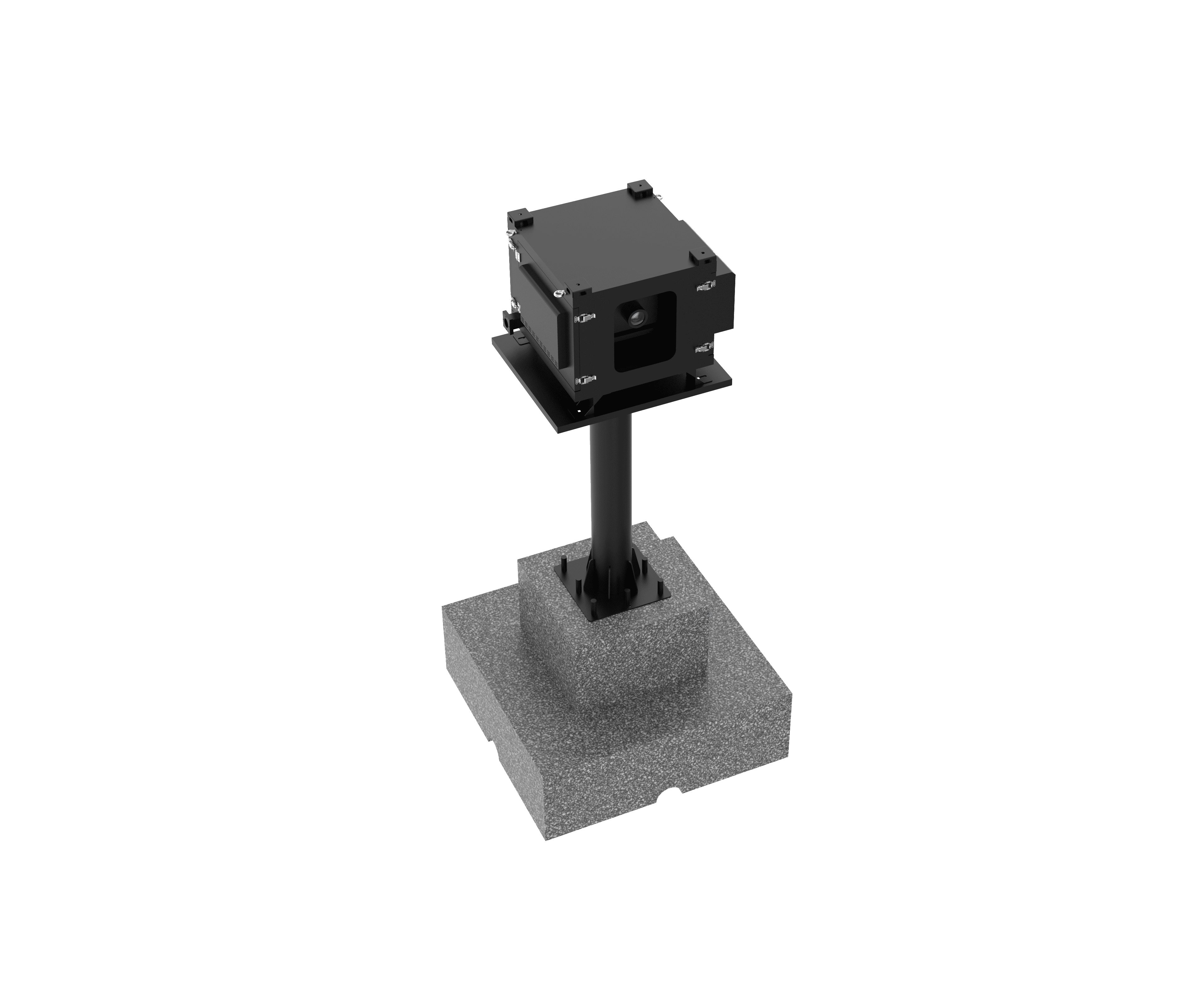

Installation Steps
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

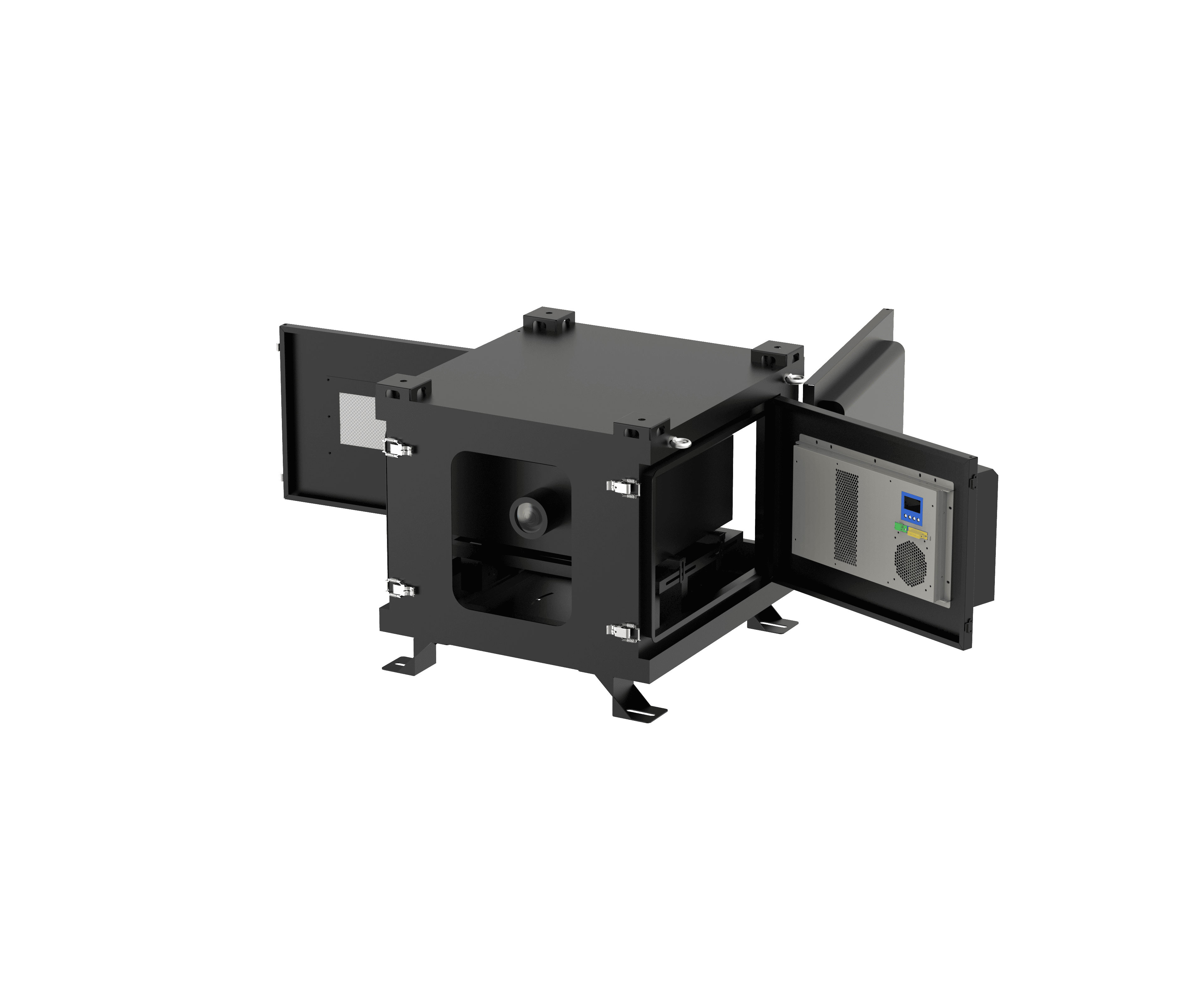

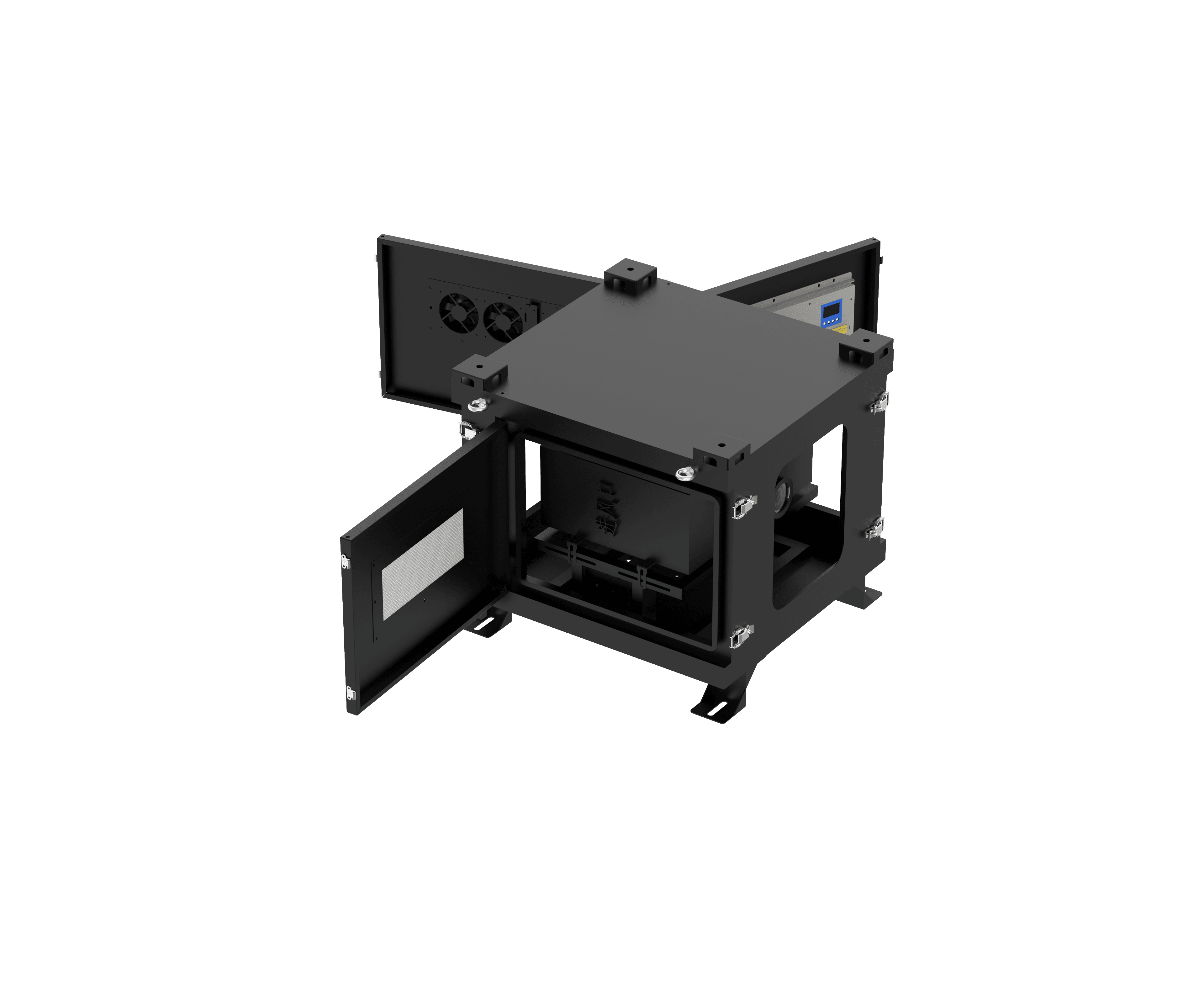

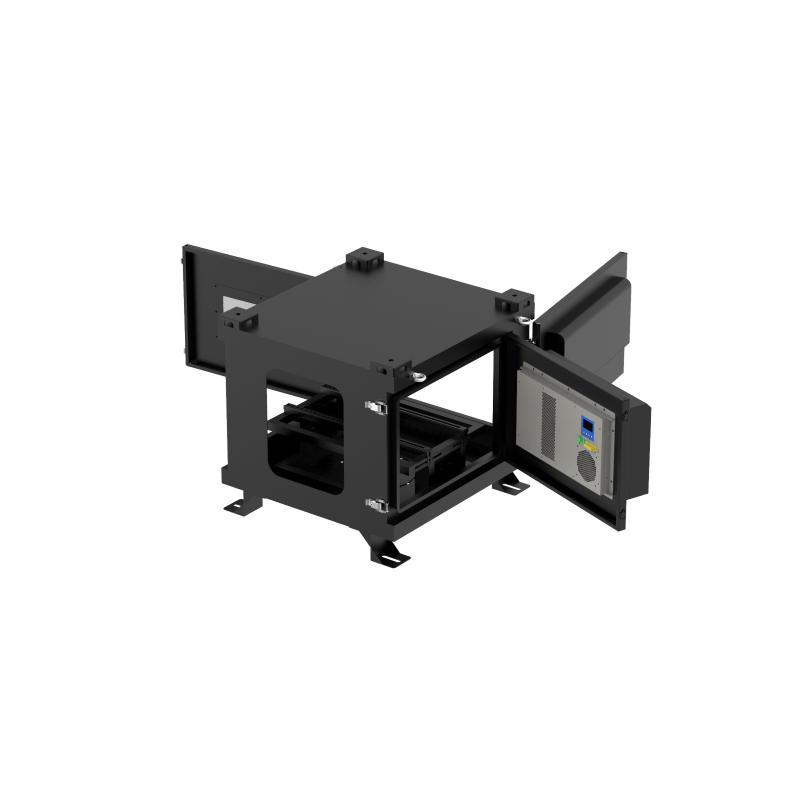

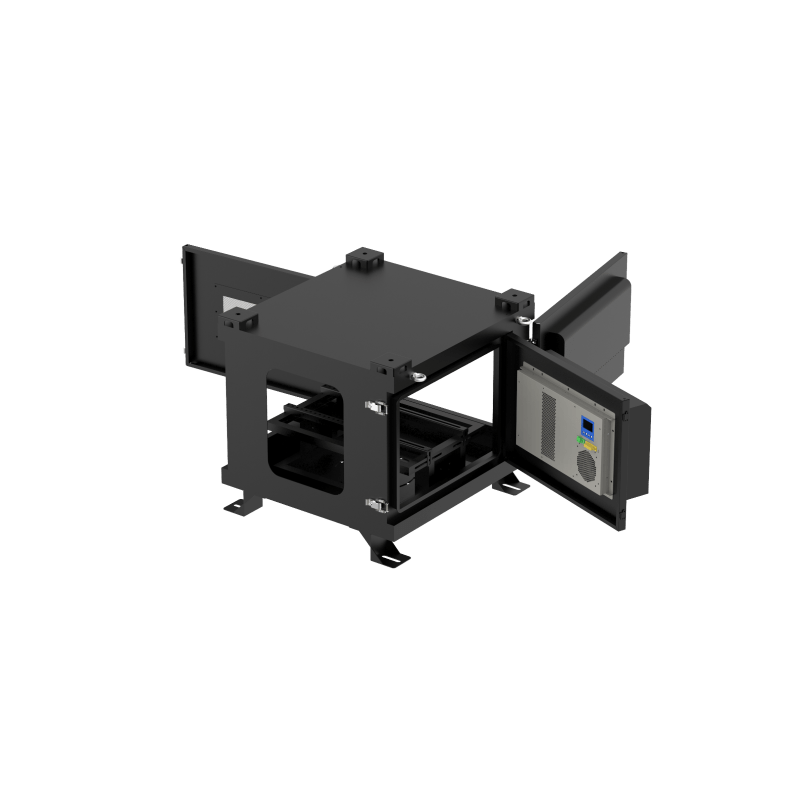

Internal structure of the waterproof box

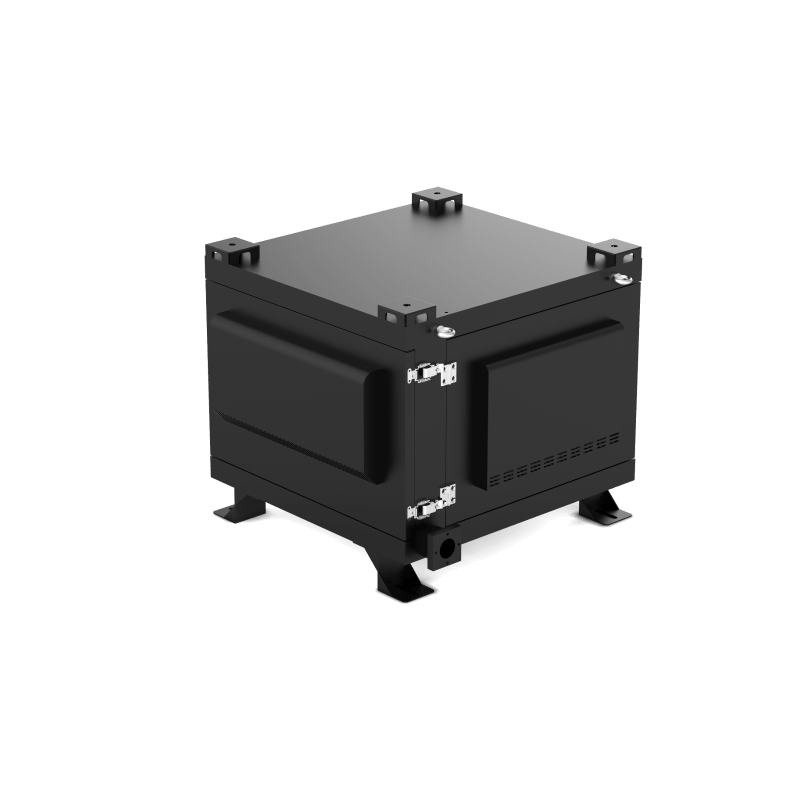

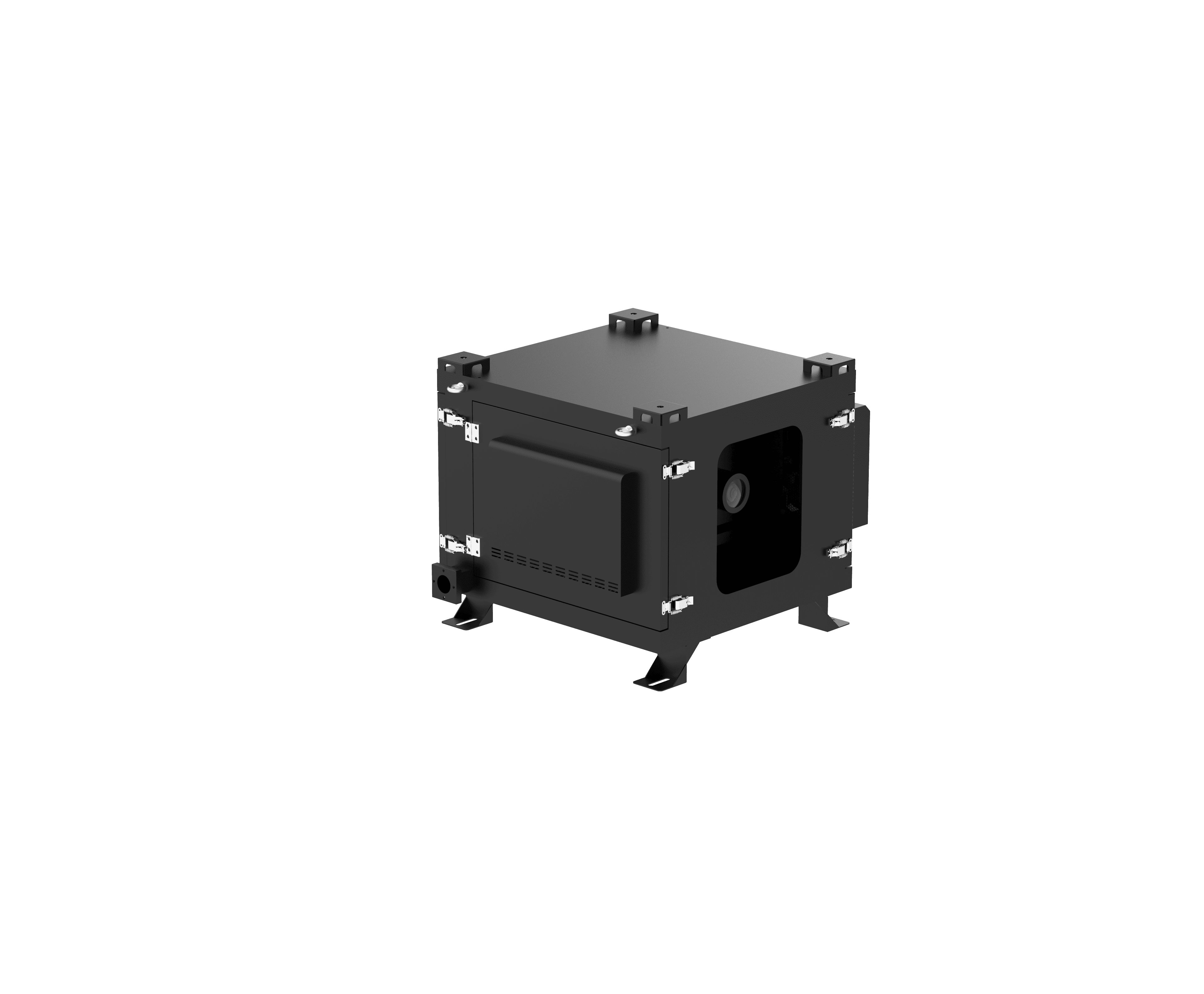

The waterproof box structure is divided into six main parts: the outer layer of the sheet metal body, the intelligent main control box, the maintenance waterproof door, the projector adjustment base, high-transparency optical glass, and stainless steel installation hanging rings for waterproof box adjustment. The placement method of the projector, the projection method, and the installation method of the waterproof box determine the overall structural design of the waterproof box. In addition to ensuring a stable working environment for the projector, the design of the waterproof box also takes into account the projection angle of the projector and its safety in public places.
Practical features of waterproof boxes
1. The waterproof box has functions such as waterproofing, dustproofing, corrosion resistance, anti-frosting, heating, and dehumidification.
2. The projector platform allows for linear angle adjustment (up to 10 degrees, with larger adjustment angles available upon customization).

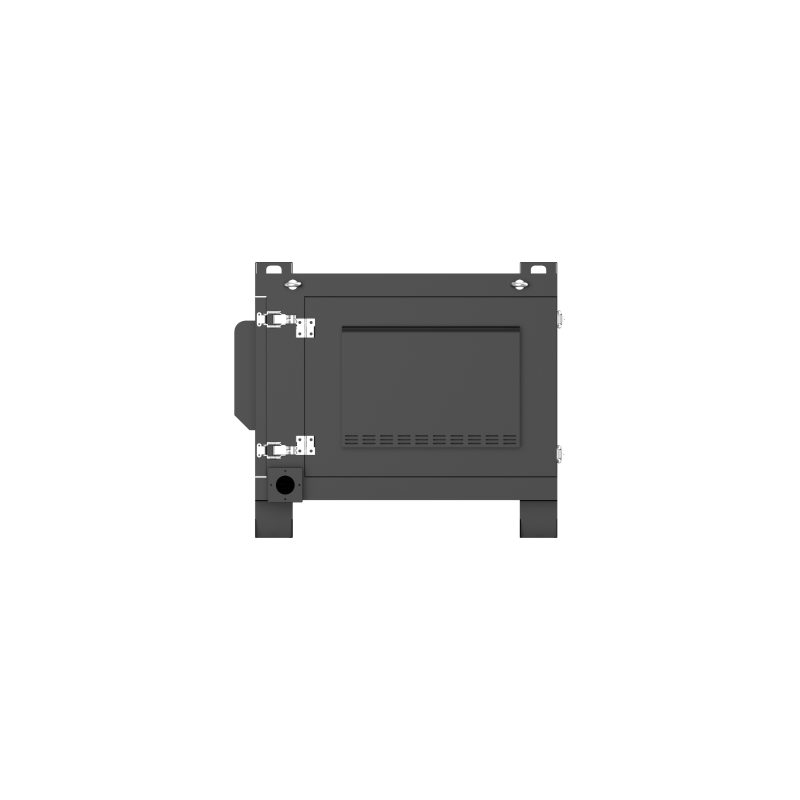

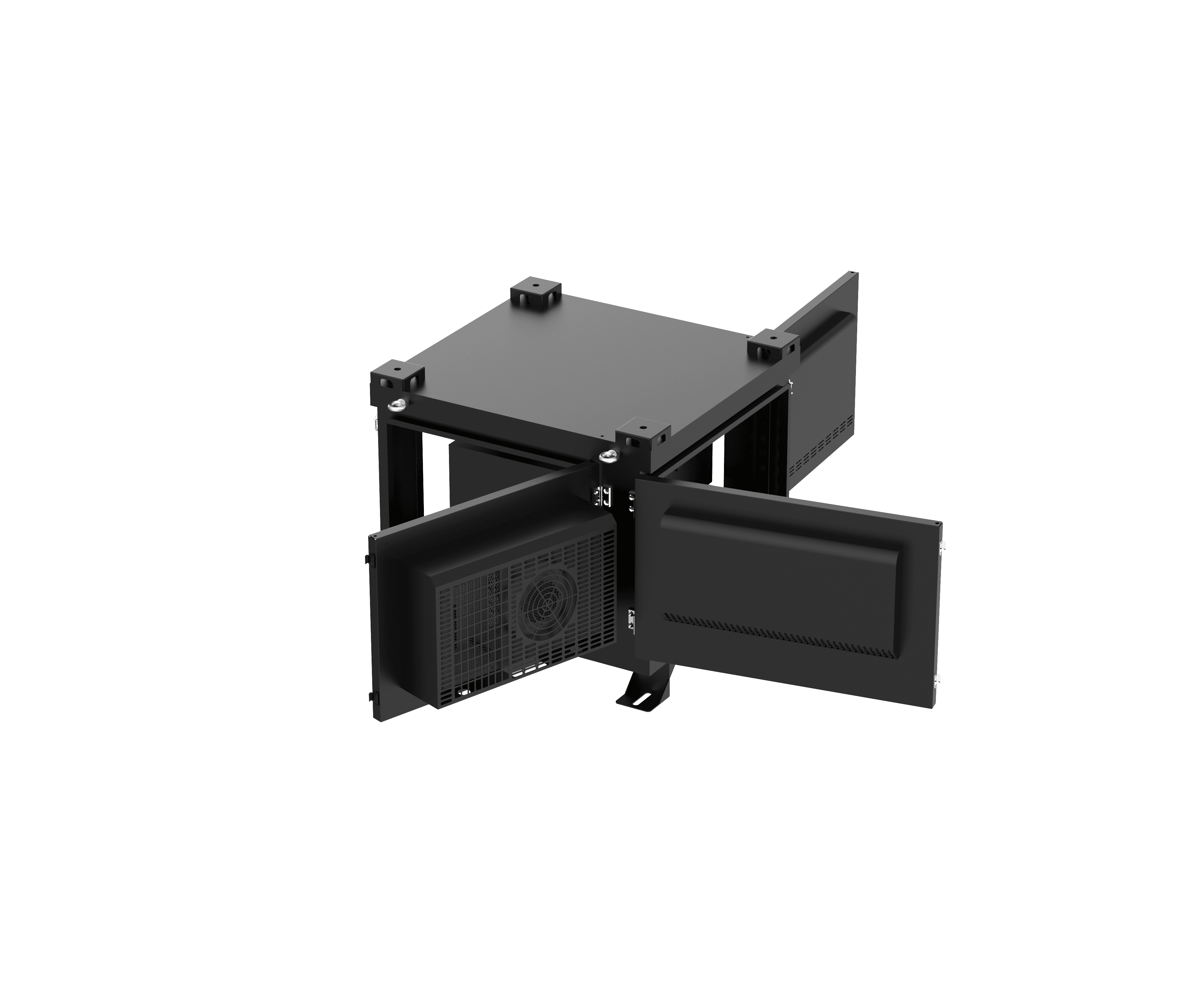

3. The multi-door design facilitates easy installation and maintenance of the projector.
4. It is equipped with an internal hot air blower to ensure that there is no frost or fog on the projection surface.
5. The tripod and door use reinforced structures designed for strong wind solidification, and additional hanging protection ensures the safety of the waterproof box before and after installation.
6. Inside, it includes a 32A AC contactor, a 16A or 10A multifunctional socket.

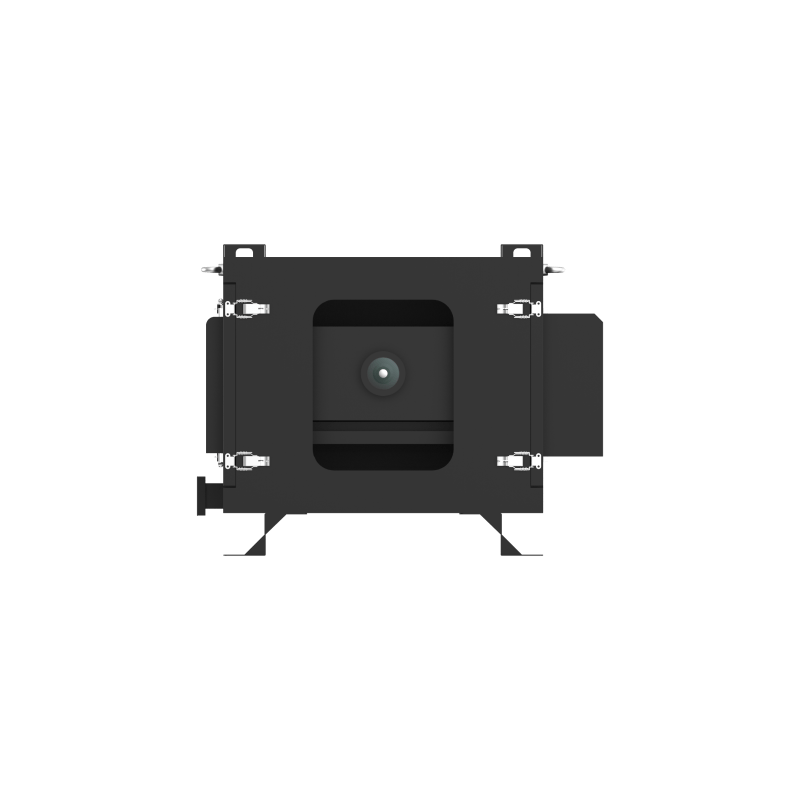

7. The projection port uses optical ultra-white glass with a 95% light transmission rate.

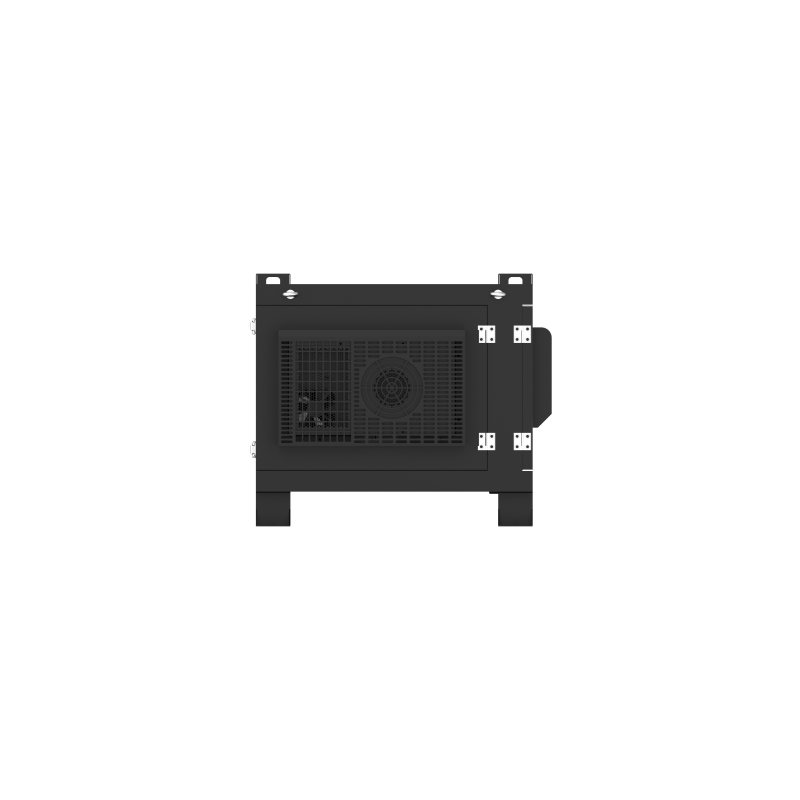

Wind-cooling
Air-conditioning
Waterproof box material
Surface treatment
